Watches the network for broadcasts from Advertiser objects, and keeps a list of all the currently active instances. More...

#include <juce_NetworkServiceDiscovery.h>

Inheritance diagram for juce::NetworkServiceDiscovery::AvailableServiceList:

[legend]

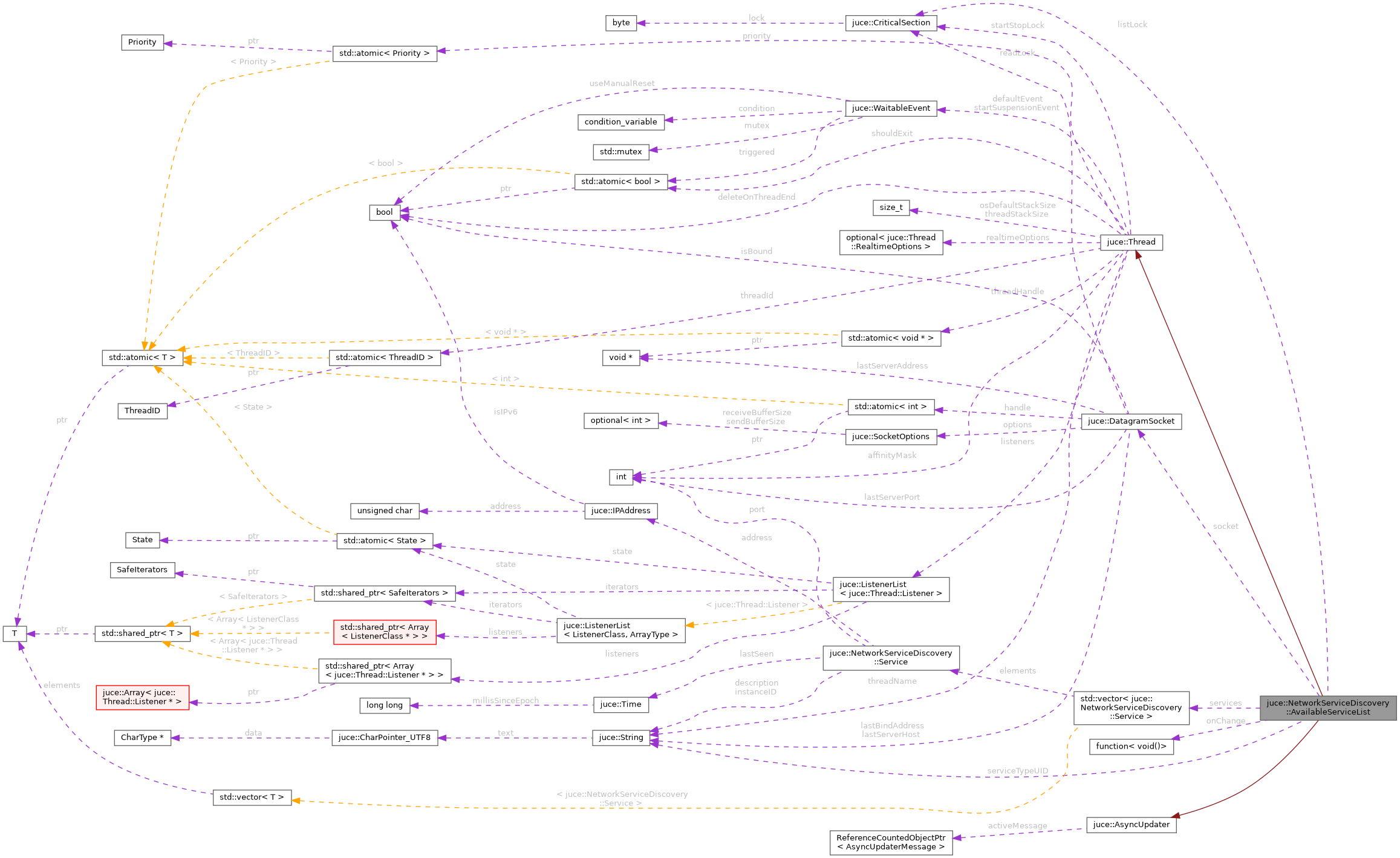

Collaboration diagram for juce::NetworkServiceDiscovery::AvailableServiceList:

[legend]

Public Member Functions
	AvailableServiceList (const String &serviceTypeUID, int broadcastPort)
	Creates an AvailableServiceList that will bind to the given port number and watch the network for Advertisers broadcasting the given service type. More...

	~AvailableServiceList () override
	Destructor. More...

std::vector< Service >	getServices () const
	Returns a list of the currently known services. More...

Public Attributes
std::function< void()>	onChange
	A lambda that can be set to receive a callback when the list changes. More...

Private Types
enum	{ realtimeAudioPriority = -1 }
	Special realtime audio thread priority. More...

using	ThreadID = void *
	A value type used for thread IDs. More...

Private Member Functions
void	addListener (Listener *)
	Add a listener to this thread which will receive a callback when signalThreadShouldExit was called on this thread. More...

void	cancelPendingUpdate () noexcept
	This will stop any pending updates from happening. More...

void	closeThreadHandle ()

ThreadID	getThreadId () const noexcept
	Returns the ID of this thread. More...

const String &	getThreadName () const noexcept
	Returns the name of the thread. More...

void	handleAsyncUpdate () override
	Called back to do whatever your class needs to do. More...

void	handleMessage (const Service &)

void	handleMessage (const XmlElement &)

void	handleUpdateNowIfNeeded ()
	If an update has been triggered and is pending, this will invoke it synchronously. More...

bool	isThreadRunning () const
	Returns true if the thread is currently active. More...

bool	isUpdatePending () const noexcept
	Returns true if there's an update callback in the pipeline. More...

void	killThread ()

void	launchThread ()

void	notify () const
	Wakes up the thread. More...

void	removeListener (Listener *)
	Removes a listener added with addListener. More...

void	removeTimedOutServices ()

void	run () override
	Must be implemented to perform the thread's actual code. More...

void	setAffinityMask (uint32 affinityMask)
	Sets the affinity mask for the thread. More...

bool	setPriority (int priority)
	Changes the thread's priority. More...

void	signalThreadShouldExit ()
	Sets a flag to tell the thread it should stop. More...

void	startThread ()
	Starts the thread running. More...

void	startThread (int priority)
	Starts the thread with a given priority. More...

bool	stopThread (int timeOutMilliseconds)
	Attempts to stop the thread running. More...

void	threadEntryPoint ()

bool	threadShouldExit () const
	Checks whether the thread has been told to stop running. More...

void	triggerAsyncUpdate ()
	Causes the callback to be triggered at a later time. More...

bool	wait (int timeOutMilliseconds) const
	Suspends the execution of this thread until either the specified timeout period has elapsed, or another thread calls the notify() method to wake it up. More...

bool	waitForThreadToExit (int timeOutMilliseconds) const
	Waits for the thread to stop. More...

Static Private Member Functions
static bool	currentThreadShouldExit ()
	Checks whether the current thread has been told to stop running. More...

static int	getAdjustedPriority (int)

static Thread *	getCurrentThread ()
	Finds the thread object that is currently running. More...

static ThreadID	getCurrentThreadId ()
	Returns an id that identifies the caller thread. More...

static void	initialiseJUCE (void jniEnv, void jContext)
	Initialises the JUCE subsystem for projects not created by the Projucer. More...

static void	launch (std::function< void()> functionToRun)
	Invokes a lambda or function on its own thread. More...

static void	setCurrentThreadAffinityMask (uint32 affinityMask)
	Changes the affinity mask for the caller thread. More...

static void	setCurrentThreadName (const String &newThreadName)
	Changes the name of the caller thread. More...

static bool	setCurrentThreadPriority (int priority)
	Changes the priority of the caller thread. More...

static bool	setThreadPriority (void *, int)

static void	sleep (int milliseconds)
	Suspends the execution of the current thread until the specified timeout period has elapsed (note that this may not be exact). More...

static void	yield ()
	Yields the current thread's CPU time-slot and allows a new thread to run. More...

Private Attributes
ReferenceCountedObjectPtr< AsyncUpdaterMessage >	activeMessage

uint32	affinityMask = 0

WaitableEvent	defaultEvent

bool	deleteOnThreadEnd = false

bool	isAndroidRealtimeThread = false

ListenerList< Listener, Array< Listener *, CriticalSection > >	listeners

CriticalSection	listLock

std::vector< Service >	services

String	serviceTypeUID

Atomic< int32 >	shouldExit { 0 }

DatagramSocket	socket { true }

CriticalSection	startStopLock

WaitableEvent	startSuspensionEvent

Atomic< void * >	threadHandle { nullptr }

Atomic< ThreadID >	threadId = {}

const String	threadName

int	threadPriority = 5

size_t	threadStackSize

Detailed Description

Watches the network for broadcasts from Advertiser objects, and keeps a list of all the currently active instances.

Just create an instance of AvailableServiceList and it will start listening - you can register a callback with its onChange member to find out when services appear/disappear, and you can call getServices() to find out the current list.

See also: Service, Advertiser

@tags{Events}

Member Typedef Documentation

◆ ThreadID

using juce::Thread::ThreadID = void*

inherited

A value type used for thread IDs.

See also: getCurrentThreadId(), getThreadId()

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

inherited

Special realtime audio thread priority.

This priority will create a high-priority thread which is best suited for realtime audio processing.

Currently, this priority is identical to priority 9, except when building for Android with OpenSL/Oboe support.

In this case, JUCE will ask OpenSL/Oboe to construct a super high priority thread specifically for realtime audio processing.

Note that this priority can only be set before the thread has started. Switching to this priority, or from this priority to a different priority, is not supported under Android and will assert.

For best performance this thread should yield at regular intervals and not call any blocking APIs.

See also: startThread, setPriority, sleep, WaitableEvent

Enumerator
realtimeAudioPriority

Constructor & Destructor Documentation

◆ AvailableServiceList()

juce::NetworkServiceDiscovery::AvailableServiceList::AvailableServiceList	(	const String &	serviceTypeUID,
		int	broadcastPort
	)

Creates an AvailableServiceList that will bind to the given port number and watch the network for Advertisers broadcasting the given service type.

This will only detect broadcasts from an Advertiser object with a matching serviceTypeUID value, and where the broadcastPort matches.

◆ ~AvailableServiceList()

juce::NetworkServiceDiscovery::AvailableServiceList::~AvailableServiceList ( )

override

Destructor.

Member Function Documentation

◆ addListener()

void juce::Thread::addListener ( Listener * )

inherited

Add a listener to this thread which will receive a callback when signalThreadShouldExit was called on this thread.

See also: signalThreadShouldExit, removeListener

◆ cancelPendingUpdate()

void juce::AsyncUpdater::cancelPendingUpdate ( )

noexceptinherited

This will stop any pending updates from happening.

If called after triggerAsyncUpdate() and before the handleAsyncUpdate() callback happens, this will cancel the handleAsyncUpdate() callback.

Note that this method simply cancels the next callback - if a callback is already in progress on a different thread, this won't block until the callback finishes, so there's no guarantee that the callback isn't still running when the method returns.

◆ closeThreadHandle()

void juce::Thread::closeThreadHandle ( )

privateinherited

References juce::Thread::threadHandle, and juce::Thread::threadId.

◆ currentThreadShouldExit()

static bool juce::Thread::currentThreadShouldExit ( )

staticinherited

Checks whether the current thread has been told to stop running.

On the message thread, this will always return false, otherwise it will return threadShouldExit() called on the current thread.

See also: threadShouldExit

◆ getAdjustedPriority()

static int juce::Thread::getAdjustedPriority ( int )

staticprivateinherited

◆ getCurrentThread()

static Thread* juce::Thread::getCurrentThread ( )

staticinherited

Finds the thread object that is currently running.

Note that the main UI thread (or other non-JUCE threads) don't have a Thread object associated with them, so this will return nullptr.

◆ getCurrentThreadId()

Thread::ThreadID juce::Thread::getCurrentThreadId ( )

staticinherited

Returns an id that identifies the caller thread.

To find the ID of a particular thread object, use getThreadId().

Returns: a unique identifier that identifies the calling thread.

See also: getThreadId

Referenced by juce::ThreadLocalValue< Type >::get(), and juce::ThreadLocalValue< Type >::releaseCurrentThreadStorage().

◆ getServices()

std::vector<Service> juce::NetworkServiceDiscovery::AvailableServiceList::getServices ( ) const

Returns a list of the currently known services.

◆ getThreadId()

ThreadID juce::Thread::getThreadId ( ) const

noexceptinherited

Returns the ID of this thread.

That means the ID of this thread object - not of the thread that's calling the method. This can change when the thread is started and stopped, and will be invalid if the thread's not actually running.

See also: getCurrentThreadId

◆ getThreadName()

const String& juce::Thread::getThreadName ( ) const

inlinenoexceptinherited

Returns the name of the thread.

This is the name that gets set in the constructor.

◆ handleAsyncUpdate()

void juce::NetworkServiceDiscovery::AvailableServiceList::handleAsyncUpdate ( )

overrideprivatevirtual

Called back to do whatever your class needs to do.

This method is called by the message thread at the next convenient time after the triggerAsyncUpdate() method has been called.

Implements juce::AsyncUpdater.

◆ handleMessage() [1/2]

void juce::NetworkServiceDiscovery::AvailableServiceList::handleMessage ( const Service & )

private

◆ handleMessage() [2/2]

void juce::NetworkServiceDiscovery::AvailableServiceList::handleMessage ( const XmlElement & )

private

◆ handleUpdateNowIfNeeded()

void juce::AsyncUpdater::handleUpdateNowIfNeeded ( )

inherited

If an update has been triggered and is pending, this will invoke it synchronously.

Use this as a kind of "flush" operation - if an update is pending, the handleAsyncUpdate() method will be called immediately; if no update is pending, then nothing will be done.

Because this may invoke the callback, this method must only be called on the main event thread.

◆ initialiseJUCE()

static void juce::Thread::initialiseJUCE	(	void *	jniEnv,
		void *	jContext
	)

staticinherited

Initialises the JUCE subsystem for projects not created by the Projucer.

On Android, JUCE needs to be initialised once before it is used. The Projucer will automatically generate the necessary java code to do this. However, if you are using JUCE without the Projucer or are creating a library made with JUCE intended for use in non-JUCE apks, then you must call this method manually once on apk startup.

You can call this method from C++ or directly from java by calling the following java method:

com.rmsl.juce.Java.initialiseJUCE (myContext);

Note that the above java method is only available in Android Studio projects created by the Projucer. If you need to call this from another type of project then you need to add the following java file to your project:

package com.rmsl.juce;

public class Java
{
    static { System.loadLibrary ("juce_jni"); }
    public native static void initialiseJUCE (Context context);
}

Parameters

jniEnv	this is a pointer to JNI's JNIEnv variable. Any callback from Java into C++ will have this passed in as it's first parameter.
jContext	this is a jobject referring to your app/service/receiver/ provider's Context. JUCE needs this for many of it's internal functions.

◆ isThreadRunning()

bool juce::Thread::isThreadRunning ( ) const

inherited

Returns true if the thread is currently active.

◆ isUpdatePending()

bool juce::AsyncUpdater::isUpdatePending ( ) const

noexceptinherited

Returns true if there's an update callback in the pipeline.

◆ killThread()

void juce::Thread::killThread ( )

privateinherited

References juce::Atomic< Type >::get(), jassertfalse, and juce::Thread::threadHandle.

◆ launch()

static void juce::Thread::launch ( std::function< void()> functionToRun )

staticinherited

Invokes a lambda or function on its own thread.

This will spin up a Thread object which calls the function and then exits. Bear in mind that starting and stopping a thread can be a fairly heavyweight operation, so you might prefer to use a ThreadPool if you're kicking off a lot of short background tasks.

Also note that using an anonymous thread makes it very difficult to interrupt the function when you need to stop it, e.g. when your app quits. So it's up to you to deal with situations where the function may fail to stop in time.

◆ launchThread()

void juce::Thread::launchThread ( )

privateinherited

References juce::Atomic< Type >::get(), juce::gl::handle, juce::Thread::isAndroidRealtimeThread, jassertfalse, juce::threadEntryProc(), juce::Thread::threadHandle, juce::Thread::threadId, and juce::Thread::threadStackSize.

◆ notify()

void juce::Thread::notify ( ) const

inherited

Wakes up the thread.

If the thread has called the wait() method, this will wake it up.

See also: wait

◆ removeListener()

void juce::Thread::removeListener ( Listener * )

inherited

Removes a listener added with addListener.

◆ removeTimedOutServices()

void juce::NetworkServiceDiscovery::AvailableServiceList::removeTimedOutServices ( )

private

◆ run()

void juce::NetworkServiceDiscovery::AvailableServiceList::run ( )

overrideprivatevirtual

Must be implemented to perform the thread's actual code.

Remember that the thread must regularly check the threadShouldExit() method whilst running, and if this returns true it should return from the run() method as soon as possible to avoid being forcibly killed.

See also: threadShouldExit, startThread

Implements juce::Thread.

◆ setAffinityMask()

void juce::Thread::setAffinityMask ( uint32 affinityMask )

inherited

Sets the affinity mask for the thread.

This will only have an effect next time the thread is started - i.e. if the thread is already running when called, it'll have no effect.

See also: setCurrentThreadAffinityMask

◆ setCurrentThreadAffinityMask()

void juce::Thread::setCurrentThreadAffinityMask ( uint32 affinityMask )

staticinherited

Changes the affinity mask for the caller thread.

This will change the affinity mask for the thread that calls this static method.

See also: setAffinityMask

References juce::Thread::affinityMask, juce::ignoreUnused(), and jassertfalse.

◆ setCurrentThreadName()

void juce::Thread::setCurrentThreadName ( const String & newThreadName )

staticinherited

Changes the name of the caller thread.

Different OSes may place different length or content limits on this name.

References JUCE_AUTORELEASEPOOL, juce::juceStringToNS(), and juce::gl::name.

Referenced by juce::MessageThread::start().

◆ setCurrentThreadPriority()

static bool juce::Thread::setCurrentThreadPriority ( int priority )

staticinherited

Changes the priority of the caller thread.

Similar to setPriority(), but this static method acts on the caller thread. May return false if for some reason the priority can't be changed.

See also: setPriority

Referenced by juce::MessageThread::start().

◆ setPriority()

bool juce::Thread::setPriority ( int priority )

inherited

Changes the thread's priority.

May return false if for some reason the priority can't be changed.

Parameters

priority the new priority, in the range 0 (lowest) to 10 (highest). A priority of 5 is normal.

See also: realtimeAudioPriority

◆ setThreadPriority()

bool juce::Thread::setThreadPriority	(	void *	handle,
		int	priority
	)

staticprivateinherited

References juce::gl::handle, juce::jmap(), and juce::gl::param.

◆ signalThreadShouldExit()

void juce::Thread::signalThreadShouldExit ( )

inherited

Sets a flag to tell the thread it should stop.

Calling this means that the threadShouldExit() method will then return true. The thread should be regularly checking this to see whether it should exit.

If your thread makes use of wait(), you might want to call notify() after calling this method, to interrupt any waits that might be in progress, and allow it to reach a point where it can exit.

See also: threadShouldExit, waitForThreadToExit

◆ sleep()

void juce::Thread::sleep ( int milliseconds )

staticinherited

Suspends the execution of the current thread until the specified timeout period has elapsed (note that this may not be exact).

The timeout period must not be negative and whilst sleeping the thread cannot be woken up so it should only be used for short periods of time and when other methods such as using a WaitableEvent or CriticalSection are not possible.

References juce::UnitTestCategories::time.

Referenced by juce::OpenGLContext::NativeContext::initialiseOnRenderThread(), juce::MessageThread::start(), and juce::OpenGLContext::NativeContext::swapBuffers().

◆ startThread() [1/2]

void juce::Thread::startThread ( )

inherited

Starts the thread running.

This will cause the thread's run() method to be called by a new thread. If this thread is already running, startThread() won't do anything.

See also: stopThread

◆ startThread() [2/2]

void juce::Thread::startThread ( int priority )

inherited

Starts the thread with a given priority.

Launches the thread with a given priority, where 0 = lowest, 10 = highest. If the thread is already running, its priority will be changed.

See also: startThread, setPriority, realtimeAudioPriority

◆ stopThread()

bool juce::Thread::stopThread ( int timeOutMilliseconds )

inherited

Attempts to stop the thread running.

This method will cause the threadShouldExit() method to return true and call notify() in case the thread is currently waiting.

Hopefully the thread will then respond to this by exiting cleanly, and the stopThread method will wait for a given time-period for this to happen.

If the thread is stuck and fails to respond after the timeout, it gets forcibly killed, which is a very bad thing to happen, as it could still be holding locks, etc. which are needed by other parts of your program.

Parameters

timeOutMilliseconds The number of milliseconds to wait for the thread to finish before killing it by force. A negative value in here will wait forever.

Returns: true if the thread was cleanly stopped before the timeout, or false if it had to be killed by force.

See also: signalThreadShouldExit, threadShouldExit, waitForThreadToExit, isThreadRunning

◆ threadEntryPoint()

void juce::Thread::threadEntryPoint ( )

privateinherited

◆ threadShouldExit()

bool juce::Thread::threadShouldExit ( ) const

inherited

Checks whether the thread has been told to stop running.

Threads need to check this regularly, and if it returns true, they should return from their run() method at the first possible opportunity.

See also: signalThreadShouldExit, currentThreadShouldExit

◆ triggerAsyncUpdate()

void juce::AsyncUpdater::triggerAsyncUpdate ( )

inherited

Causes the callback to be triggered at a later time.

This method returns immediately, after which a callback to the handleAsyncUpdate() method will be made by the message thread as soon as possible.

If an update callback is already pending but hasn't happened yet, calling this method will have no effect.

It's thread-safe to call this method from any thread, BUT beware of calling it from a real-time (e.g. audio) thread, because it involves posting a message to the system queue, which means it may block (and in general will do on most OSes).

◆ wait()

bool juce::Thread::wait ( int timeOutMilliseconds ) const

inherited

Suspends the execution of this thread until either the specified timeout period has elapsed, or another thread calls the notify() method to wake it up.

A negative timeout value means that the method will wait indefinitely.

Returns: true if the event has been signalled, false if the timeout expires.

◆ waitForThreadToExit()

bool juce::Thread::waitForThreadToExit ( int timeOutMilliseconds ) const

inherited

Waits for the thread to stop.

This will wait until isThreadRunning() is false or until a timeout expires.

Parameters

timeOutMilliseconds the time to wait, in milliseconds. If this value is less than zero, it will wait forever.

Returns: true if the thread exits, or false if the timeout expires first.

◆ yield()

void juce::Thread::yield ( )

staticinherited

Atomic<void*> juce::Thread::threadHandle { nullptr }

privateinherited

Referenced by juce::Thread::closeThreadHandle(), juce::Thread::killThread(), and juce::Thread::launchThread().

◆ threadId

Atomic<ThreadID> juce::Thread::threadId = {}

privateinherited

Referenced by juce::Thread::closeThreadHandle(), and juce::Thread::launchThread().

◆ threadName

const String juce::Thread::threadName

privateinherited

◆ threadPriority

int juce::Thread::threadPriority = 5

privateinherited

◆ threadStackSize

size_t juce::Thread::threadStackSize

privateinherited

Referenced by juce::Thread::launchThread().

The documentation for this struct was generated from the following file:

juce_NetworkServiceDiscovery.h

Public Member Functions

Public Attributes

Private Types

Private Member Functions

Static Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ ThreadID

Member Enumeration Documentation

◆ anonymous enum

Constructor & Destructor Documentation

◆ AvailableServiceList()

◆ ~AvailableServiceList()

Member Function Documentation

◆ addListener()

◆ cancelPendingUpdate()

◆ closeThreadHandle()

◆ currentThreadShouldExit()

◆ getAdjustedPriority()

◆ getCurrentThread()

◆ getCurrentThreadId()

◆ getServices()

◆ getThreadId()

◆ getThreadName()

◆ handleAsyncUpdate()

◆ handleMessage() [1/2]

◆ handleMessage() [2/2]

◆ handleUpdateNowIfNeeded()

◆ initialiseJUCE()

◆ isThreadRunning()

◆ isUpdatePending()

◆ killThread()

◆ launch()

◆ launchThread()

◆ notify()

◆ removeListener()

◆ removeTimedOutServices()

◆ run()

◆ setAffinityMask()

◆ setCurrentThreadAffinityMask()

◆ setCurrentThreadName()

◆ setCurrentThreadPriority()

◆ setPriority()

◆ setThreadPriority()

◆ signalThreadShouldExit()

◆ sleep()

◆ startThread() [1/2]

◆ startThread() [2/2]

◆ stopThread()

◆ threadEntryPoint()

◆ threadShouldExit()

◆ triggerAsyncUpdate()

◆ wait()

◆ waitForThreadToExit()

◆ yield()

Member Data Documentation

◆ activeMessage

◆ affinityMask

◆ defaultEvent

◆ deleteOnThreadEnd

◆ isAndroidRealtimeThread

◆ listeners

◆ listLock

◆ onChange

◆ services

◆ serviceTypeUID

◆ shouldExit

◆ socket

◆ startStopLock

◆ startSuspensionEvent

◆ threadHandle

◆ threadId

◆ threadName

◆ threadPriority

◆ threadStackSize
