juce::ARAPlaybackRegion Class Reference

Base class representing an ARA playback region. More...

#include <juce_ARAModelObjects.h>

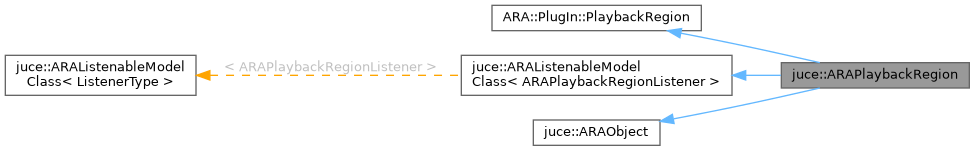

Inheritance diagram for juce::ARAPlaybackRegion:

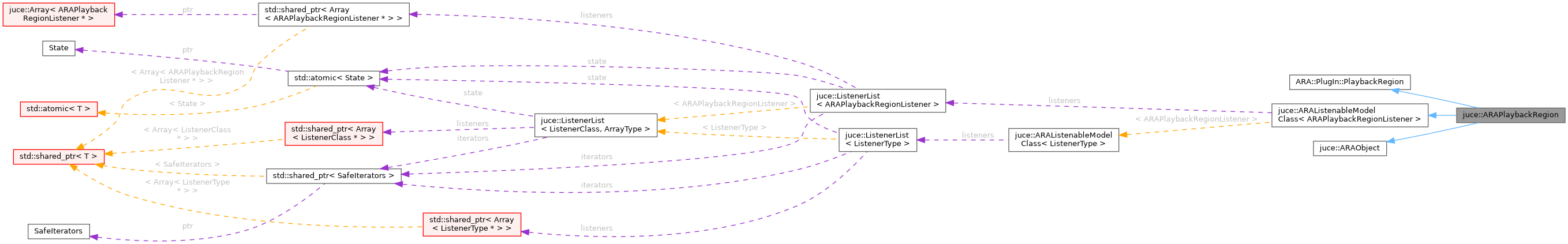

Collaboration diagram for juce::ARAPlaybackRegion:

Public Types
enum class	IncludeHeadAndTail {   no ,   yes }
	Used in getTimeRange to indicate whether the head and tail times should be included in the result. More...
using	Listener = ARAPlaybackRegionListener
using	PropertiesPtr = ARA::PlugIn::PropertiesPtr< ARA::ARAPlaybackRegionProperties >

Public Member Functions
void	addListener (ARAPlaybackRegionListener *l)
	Subscribe l to notified by changes to the object.
template<typename AudioModification_t = ARAAudioModification>
AudioModification_t *	getAudioModification () const noexcept
	Returns the result of ARA::PlugIn::PlaybackRegion::getAudioModification() with the pointer cast to ARAAudioModification*.
ARAObject *	getChild (size_t) override
	Returns the child object associated with the given index.
double	getHeadTime () const
	Get the head length in seconds before the start of the region's playback time.
size_t	getNumChildren () const noexcept override
	Returns the number of ARA model objects aggregated by this object.
ARAObject *	getParent () override
	Returns the ARA model object that aggregates this object.
template<typename RegionSequence_t = ARARegionSequence>
RegionSequence_t *	getRegionSequence () const noexcept
	Returns the result of ARA::PlugIn::PlaybackRegion::getRegionSequence() with the pointer cast to ARARegionSequence*.
Range< int64 >	getSampleRange (double sampleRate, IncludeHeadAndTail includeHeadAndTail=IncludeHeadAndTail::no) const
	Returns the playback sample range of this playback region.
double	getTailTime () const
	Get the tail length in seconds after the end of the region's playback time.
Range< double >	getTimeRange (IncludeHeadAndTail includeHeadAndTail=IncludeHeadAndTail::no) const
	Returns the playback time range of this playback region.
void	notifyContentChanged (ARAContentUpdateScopes scopeFlags, bool notifyARAHost)
	Notify the ARA host and any listeners of a content update initiated by the plug-in.
void	notifyListeners (Callback &&callback)
	Call the provided callback for each of the added listeners.
void	removeListener (ARAPlaybackRegionListener *l)
	Unsubscribe l from object notifications.
template<typename Fn >
void	traverse (Fn &&fn)
	Implements a depth first traversal of the ARA model graph starting from the current object, and visiting its children recursively.
void	visit (ARAObjectVisitor &visitor) override
	Allows the retrieval of the concrete type of a model object.

Private Attributes
ListenerList< ARAPlaybackRegionListener >	listeners

Detailed Description

Base class representing an ARA playback region.

@tags{ARA}

Member Typedef Documentation

Listener

using juce::ARAPlaybackRegion::Listener = ARAPlaybackRegionListener

PropertiesPtr

using juce::ARAPlaybackRegion::PropertiesPtr = ARA::PlugIn::PropertiesPtr<ARA::ARAPlaybackRegionProperties>

Member Enumeration Documentation

IncludeHeadAndTail

enum class juce::ARAPlaybackRegion::IncludeHeadAndTail

strong

Used in getTimeRange to indicate whether the head and tail times should be included in the result.

Enumerator
no
yes

Member Function Documentation

addListener()

void juce::ARAListenableModelClass< ARAPlaybackRegionListener >::addListener ( ARAPlaybackRegionListener *  l )

inlineinherited

Subscribe l to notified by changes to the object.

Parameters

l	The listener instance.

getAudioModification()

template<typename AudioModification_t = ARAAudioModification>

AudioModification_t * juce::ARAPlaybackRegion::getAudioModification ( ) const

inlinenoexcept

Returns the result of ARA::PlugIn::PlaybackRegion::getAudioModification() with the pointer cast to ARAAudioModification*.

If you have overridden ARADocumentControllerSpecialisation::doCreateAudioModification(), then you can use the template parameter to cast the pointers to your subclass of ARAAudioModification.

getChild()

ARAObject * juce::ARAPlaybackRegion::getChild ( size_t  index )

inlineoverridevirtual

Returns the child object associated with the given index.

The index should be smaller than the value returned by getNumChildren().

Note that the index of a particular object may change when the ARA model graph is edited.

Implements juce::ARAObject.

getHeadTime()

double juce::ARAPlaybackRegion::getHeadTime

(

)

const

Get the head length in seconds before the start of the region's playback time.

getNumChildren()

size_t juce::ARAPlaybackRegion::getNumChildren ( ) const

inlineoverridevirtualnoexcept

Returns the number of ARA model objects aggregated by this object.

Objects that are merely referred to, but not aggregated by the current object are not included in this count, e.g. a referenced RegionSequence does not count as a child of the referring PlaybackRegion.

See the ARA documentation's ARA Model Graph Overview for more details.

Implements juce::ARAObject.

getParent()

ARAObject * juce::ARAPlaybackRegion::getParent ( )

overridevirtual

Returns the ARA model object that aggregates this object.

Returns nullptr for the ARADocument root object.

Implements juce::ARAObject.

getRegionSequence()

template<typename RegionSequence_t = ARARegionSequence>

RegionSequence_t * juce::ARAPlaybackRegion::getRegionSequence ( ) const

inlinenoexcept

Returns the result of ARA::PlugIn::PlaybackRegion::getRegionSequence() with the pointer cast to ARARegionSequence*.

If you have overridden ARADocumentControllerSpecialisation::doCreateRegionSequence(), then you can use the template parameter to cast the pointers to your subclass of ARARegionSequence.

getSampleRange()

Range< int64 > juce::ARAPlaybackRegion::getSampleRange	(	double	sampleRate,
		IncludeHeadAndTail	includeHeadAndTail = IncludeHeadAndTail::no
	)		const

Returns the playback sample range of this playback region.

Parameters

sampleRate	The rate at which the sample position should be calculated from the time range.
includeHeadAndTail	Whether or not the range includes the head and tail time of all playback regions in the sequence.

getTailTime()

double juce::ARAPlaybackRegion::getTailTime

(

)

const

Get the tail length in seconds after the end of the region's playback time.

getTimeRange()

Range< double > juce::ARAPlaybackRegion::getTimeRange

(

IncludeHeadAndTail

includeHeadAndTail = IncludeHeadAndTail::no

)

const

Returns the playback time range of this playback region.

Parameters

includeHeadAndTail

Whether or not the range includes the head and tail time of all playback regions in the sequence.

notifyContentChanged()

void juce::ARAPlaybackRegion::notifyContentChanged	(	ARAContentUpdateScopes	scopeFlags,
		bool	notifyARAHost
	)

Notify the ARA host and any listeners of a content update initiated by the plug-in.

This must be called by the plug-in model management code on the message thread whenever updating the internal content representation, such as after the user edited the pitch of a note in the underlying audio modification. Listeners will be notified immediately. If notifyARAHost is true, a notification to the host will be enqueued and sent out the next time it polls for updates.

Parameters

scopeFlags	The scope of the content update.
notifyARAHost	If true, the ARA host will be notified of the content change.

notifyListeners()

void juce::ARAListenableModelClass< ARAPlaybackRegionListener >::notifyListeners ( Callback &&  callback )

inlineinherited

Call the provided callback for each of the added listeners.

removeListener()

void juce::ARAListenableModelClass< ARAPlaybackRegionListener >::removeListener ( ARAPlaybackRegionListener *  l )

inlineinherited

Unsubscribe l from object notifications.

Parameters

l	The listener instance.

traverse()

template<typename Fn >

void juce::ARAObject::traverse ( Fn &&  fn )

inlineinherited

Implements a depth first traversal of the ARA model graph starting from the current object, and visiting its children recursively.

The provided function should accept a single ARAObject& parameter.

References juce::ARAObject::getChild(), juce::ARAObject::getNumChildren(), and juce::ARAObject::traverse().

Referenced by juce::ARAObject::traverse().

visit()

void juce::ARAPlaybackRegion::visit ( ARAObjectVisitor &  visitor )

inlineoverridevirtual

Allows the retrieval of the concrete type of a model object.

To use this, create a new class derived from ARAObjectVisitor and override its functions depending on which concrete types you are interested in.

Calling this function inside the function passed to ARAObject::traverse() allows you to map the entire ARA model graph.

Implements juce::ARAObject.

References juce::ARAObjectVisitor::visitPlaybackRegion().

Member Data Documentation

listeners

ListenerList<ARAPlaybackRegionListener > juce::ARAListenableModelClass< ARAPlaybackRegionListener >::listeners

privateinherited

---

The documentation for this class was generated from the following file:

• juce_ARAModelObjects.h
