cv::detail::Blender Class Reference

Base class for all blenders. More...

#include <opencv2/stitching/detail/blenders.hpp>

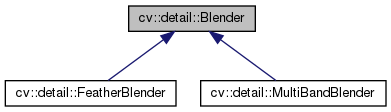

Inheritance diagram for cv::detail::Blender:

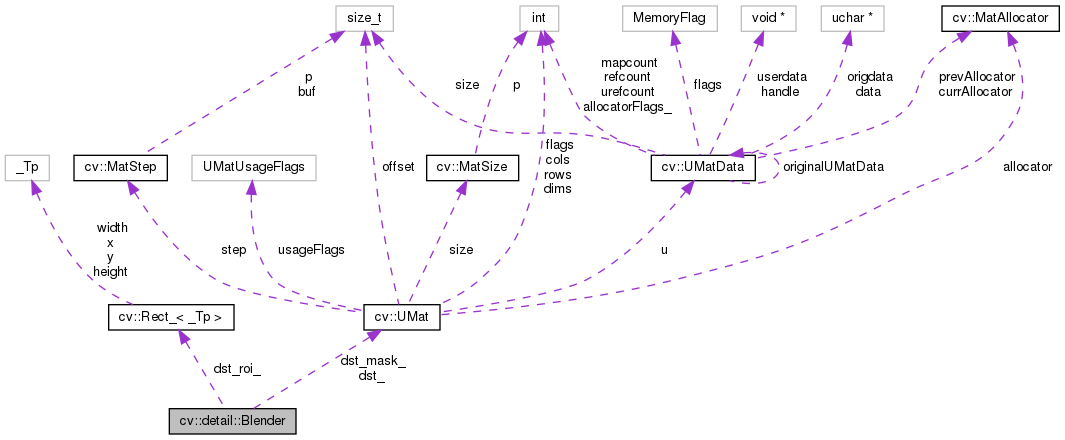

Collaboration diagram for cv::detail::Blender:

Public Types

enum  {
  NO,
  FEATHER,
  MULTI_BAND
}


Public Member Functions

virtual ~Blender ()

virtual void blend (InputOutputArray dst, InputOutputArray dst_mask)
 Blends and returns the final pano. More...

virtual void feed (InputArray img, InputArray mask, Point tl)
 Processes the image. More...

virtual void prepare (const std::vector< Point > &corners, const std::vector< Size > &sizes)
 Prepares the blender for blending. More...

virtual void prepare (Rect dst_roi)


Static Public Member Functions

static Ptr< BlendercreateDefault (int type, bool try_gpu=false)


Protected Attributes

UMat dst_

UMat dst_mask_

Rect dst_roi_


Detailed Description

Base class for all blenders.

Simple blender which puts one image over another

Member Enumeration Documentation

◆ anonymous enum

anonymous enum
Enumerator
NO
FEATHER
MULTI_BAND

Constructor & Destructor Documentation

◆ ~Blender()

virtual cv::detail::Blender::~Blender ( )
inlinevirtual

Member Function Documentation

◆ blend()

virtual void cv::detail::Blender::blend ( InputOutputArray  dst,
InputOutputArray  dst_mask
)
virtual

Blends and returns the final pano.

Parameters
dstFinal pano
dst_maskFinal pano mask

Reimplemented in cv::detail::MultiBandBlender, and cv::detail::FeatherBlender.

◆ createDefault()

static Ptr<Blender> cv::detail::Blender::createDefault ( int  type,
bool  try_gpu = false
)
static

◆ feed()

virtual void cv::detail::Blender::feed ( InputArray  img,
InputArray  mask,
Point  tl
)
virtual

Processes the image.

Parameters
imgSource image
maskSource image mask
tlSource image top-left corners

Reimplemented in cv::detail::MultiBandBlender, and cv::detail::FeatherBlender.

◆ prepare() [1/2]

virtual void cv::detail::Blender::prepare ( const std::vector< Point > &  corners,
const std::vector< Size > &  sizes
)
virtual

Prepares the blender for blending.

Parameters
cornersSource images top-left corners
sizesSource image sizes

◆ prepare() [2/2]

virtual void cv::detail::Blender::prepare ( Rect  dst_roi)
virtual

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Reimplemented in cv::detail::MultiBandBlender, and cv::detail::FeatherBlender.

Member Data Documentation

◆ dst_

UMat cv::detail::Blender::dst_
protected

◆ dst_mask_

UMat cv::detail::Blender::dst_mask_
protected

◆ dst_roi_

Rect cv::detail::Blender::dst_roi_
protected

The documentation for this class was generated from the following file:
