cv::detail::MultiBandBlender Class Reference

Blender which uses multi-band blending algorithm (see [16]). More...

#include <opencv2/stitching/detail/blenders.hpp>

Inheritance diagram for cv::detail::MultiBandBlender:

Collaboration diagram for cv::detail::MultiBandBlender:

Public Types
enum	{   NO,   FEATHER,   MULTI_BAND }

Public Member Functions
	MultiBandBlender (int try_gpu=false, int num_bands=5, int weight_type=CV_32F)
void	blend (InputOutputArray dst, InputOutputArray dst_mask) CV_OVERRIDE
	Blends and returns the final pano. More...
void	feed (InputArray img, InputArray mask, Point tl) CV_OVERRIDE
	Processes the image. More...
int	numBands () const
virtual void	prepare (const std::vector< Point > &corners, const std::vector< Size > &sizes)
	Prepares the blender for blending. More...
void	prepare (Rect dst_roi) CV_OVERRIDE
void	setNumBands (int val)

Static Public Member Functions
static Ptr< Blender >	createDefault (int type, bool try_gpu=false)

Protected Attributes
UMat	dst_
UMat	dst_mask_
Rect	dst_roi_

Detailed Description

Blender which uses multi-band blending algorithm (see [16]).

Examples:

samples/cpp/stitching_detailed.cpp.

Member Enumeration Documentation

anonymous enum

anonymous enum

inherited

Enumerator
NO
FEATHER
MULTI_BAND

Constructor & Destructor Documentation

MultiBandBlender()

cv::detail::MultiBandBlender::MultiBandBlender	(	int	try_gpu = false,
		int	num_bands = 5,
		int	weight_type = CV_32F
	)

Member Function Documentation

blend()

void cv::detail::MultiBandBlender::blend ( InputOutputArray  dst, InputOutputArray  dst_mask  )

virtual

Blends and returns the final pano.

Parameters

dst	Final pano
dst_mask	Final pano mask

Reimplemented from cv::detail::Blender.

createDefault()

static Ptr<Blender> cv::detail::Blender::createDefault ( int  type, bool  try_gpu = false  )

staticinherited

feed()

void cv::detail::MultiBandBlender::feed ( InputArray  img, InputArray  mask, Point  tl  )

virtual

Processes the image.

Parameters

img	Source image
mask	Source image mask
tl	Source image top-left corners

Reimplemented from cv::detail::Blender.

numBands()

int cv::detail::MultiBandBlender::numBands ( ) const

inline

Examples:

samples/cpp/stitching_detailed.cpp.

prepare() [1/2]

virtual void cv::detail::Blender::prepare ( const std::vector< Point > &  corners, const std::vector< Size > &  sizes  )

virtualinherited

Prepares the blender for blending.

Parameters

corners	Source images top-left corners
sizes	Source image sizes

prepare() [2/2]

void cv::detail::MultiBandBlender::prepare ( Rect  dst_roi )

virtual

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Reimplemented from cv::detail::Blender.

setNumBands()

void cv::detail::MultiBandBlender::setNumBands ( int  val )

inline

Examples:

samples/cpp/stitching_detailed.cpp.

References cv::detail::createLaplacePyr(), cv::detail::createLaplacePyrGpu(), cv::detail::createWeightMap(), CV_EXPORTS_W, CV_IN_OUT, CV_OVERRIDE, CV_WRAP, cv::gapi::mask(), cv::detail::normalizeUsingWeightMap(), cv::detail::restoreImageFromLaplacePyr(), and cv::detail::restoreImageFromLaplacePyrGpu().

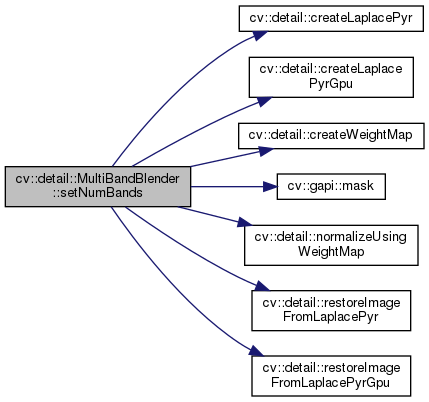

Here is the call graph for this function:

Member Data Documentation

dst_

UMat cv::detail::Blender::dst_

protectedinherited

dst_mask_

UMat cv::detail::Blender::dst_mask_

protectedinherited

dst_roi_

Rect cv::detail::Blender::dst_roi_

protectedinherited

---

The documentation for this class was generated from the following file:

• opencv2/stitching/detail/blenders.hpp
