cvflann::AutotunedIndex< Distance > Class Template Reference

#include <opencv2/flann/autotuned_index.h>

Inheritance diagram for cvflann::AutotunedIndex< Distance >:

Collaboration diagram for cvflann::AutotunedIndex< Distance >:

Public Types
typedef Distance::ResultType	DistanceType
typedef Distance::ElementType	ElementType

Public Member Functions
	AutotunedIndex (const Matrix< ElementType > &inputData, const IndexParams &params=AutotunedIndexParams(), Distance d=Distance())
	AutotunedIndex (const AutotunedIndex &)
virtual	~AutotunedIndex ()
virtual void	buildIndex () CV_OVERRIDE
	Method responsible with building the index. More...
virtual void	findNeighbors (ResultSet< DistanceType > &result, const ElementType *vec, const SearchParams &searchParams) CV_OVERRIDE
	Method that searches for nearest-neighbors. More...
IndexParams	getParameters () const CV_OVERRIDE
SearchParams	getSearchParameters () const
float	getSpeedup () const
virtual flann_algorithm_t	getType () const CV_OVERRIDE
	Algorithm name. More...
virtual void	knnSearch (const Matrix< ElementType > &queries, Matrix< int > &indices, Matrix< DistanceType > &dists, int knn, const SearchParams &params)
	Perform k-nearest neighbor search. More...
virtual void	loadIndex (FILE *stream) CV_OVERRIDE
	Loads the index from a stream. More...
AutotunedIndex &	operator= (const AutotunedIndex &)
virtual int	radiusSearch (const Matrix< ElementType > &query, Matrix< int > &indices, Matrix< DistanceType > &dists, float radius, const SearchParams &params)
	Perform radius search. More...
virtual void	saveIndex (FILE *stream) CV_OVERRIDE
	Saves the index to a stream. More...
virtual size_t	size () const CV_OVERRIDE
	Number of features in this index. More...
virtual int	usedMemory () const CV_OVERRIDE
	The amount of memory (in bytes) this index uses. More...
virtual size_t	veclen () const CV_OVERRIDE
	The length of each vector in this index. More...

Member Typedef Documentation

DistanceType

template<typename Distance>

typedef Distance::ResultType cvflann::AutotunedIndex< Distance >::DistanceType

ElementType

template<typename Distance>

typedef Distance::ElementType cvflann::AutotunedIndex< Distance >::ElementType

Constructor & Destructor Documentation

AutotunedIndex() [1/2]

template<typename Distance>

cvflann::AutotunedIndex< Distance >::AutotunedIndex ( const Matrix< ElementType > &  inputData, const IndexParams &  params = AutotunedIndexParams(), Distance  d = Distance()  )

inline

References cvflann::get_param().

Here is the call graph for this function:

AutotunedIndex() [2/2]

template<typename Distance>

cvflann::AutotunedIndex< Distance >::AutotunedIndex

(

const AutotunedIndex< Distance > &

)

~AutotunedIndex()

template<typename Distance>

virtual cvflann::AutotunedIndex< Distance >::~AutotunedIndex ( )

inlinevirtual

Member Function Documentation

buildIndex()

template<typename Distance>

virtual void cvflann::AutotunedIndex< Distance >::buildIndex ( )

inlinevirtual

Method responsible with building the index.

Implements cvflann::NNIndex< Distance >.

References cvflann::create_index_by_type(), cvflann::Logger::info(), and cvflann::print_params().

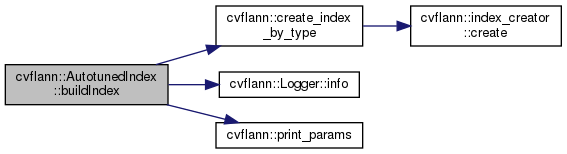

Here is the call graph for this function:

findNeighbors()

template<typename Distance>

virtual void cvflann::AutotunedIndex< Distance >::findNeighbors ( ResultSet< DistanceType > &  result, const ElementType *  vec, const SearchParams &  searchParams  )

inlinevirtual

Method that searches for nearest-neighbors.

Implements cvflann::NNIndex< Distance >.

References cvflann::FLANN_CHECKS_AUTOTUNED.

getParameters()

template<typename Distance>

IndexParams cvflann::AutotunedIndex< Distance >::getParameters ( ) const

inlinevirtual

Returns

The index parameters

Implements cvflann::NNIndex< Distance >.

getSearchParameters()

template<typename Distance>

SearchParams cvflann::AutotunedIndex< Distance >::getSearchParameters ( ) const

inline

getSpeedup()

template<typename Distance>

float cvflann::AutotunedIndex< Distance >::getSpeedup ( ) const

inline

getType()

template<typename Distance>

virtual flann_algorithm_t cvflann::AutotunedIndex< Distance >::getType ( ) const

inlinevirtual

Algorithm name.

Implements cvflann::NNIndex< Distance >.

References cvflann::KDTreeIndex< Distance >::buildIndex(), cvflann::KMeansIndex< Distance >::buildIndex(), cvflann::FLANN_CENTERS_RANDOM, cvflann::FLANN_INDEX_AUTOTUNED, cvflann::FLANN_INDEX_KDTREE, cvflann::FLANN_INDEX_KMEANS, cvflann::FLANN_INDEX_LINEAR, cvflann::Logger::info(), cv::kmeans(), cv::min(), cvflann::random_sample(), cvflann::Matrix< T >::rows, cvflann::KMeansIndex< Distance >::set_cb_index(), cvflann::StartStopTimer::start(), cvflann::StartStopTimer::stop(), cvflann::test_index_precision(), cvflann::KDTreeIndex< Distance >::usedMemory(), cvflann::KMeansIndex< Distance >::usedMemory(), and cvflann::StartStopTimer::value.

Here is the call graph for this function:

knnSearch()

template<typename Distance>

virtual void cvflann::NNIndex< Distance >::knnSearch ( const Matrix< ElementType > &  queries, Matrix< int > &  indices, Matrix< DistanceType > &  dists, int  knn, const SearchParams &  params  )

inlinevirtualinherited

Perform k-nearest neighbor search.

Parameters

[in]	queries	The query points for which to find the nearest neighbors
[out]	indices	The indices of the nearest neighbors found
[out]	dists	Distances to the nearest neighbors found
[in]	knn	Number of nearest neighbors to return
[in]	params	Search parameters

Reimplemented in cvflann::Index< Distance >, cvflann::Index< cv::L2< ElementType > >, cvflann::Index< cv::L1< ElementType > >, cvflann::KDTreeSingleIndex< Distance >, and cvflann::LshIndex< Distance >.

loadIndex()

template<typename Distance>

virtual void cvflann::AutotunedIndex< Distance >::loadIndex ( FILE *  stream )

inlinevirtual

Loads the index from a stream.

Implements cvflann::NNIndex< Distance >.

References cvflann::load_value().

Here is the call graph for this function:

operator=()

template<typename Distance>

AutotunedIndex& cvflann::AutotunedIndex< Distance >::operator=

(

const AutotunedIndex< Distance > &

)

radiusSearch()

template<typename Distance>

virtual int cvflann::NNIndex< Distance >::radiusSearch ( const Matrix< ElementType > &  query, Matrix< int > &  indices, Matrix< DistanceType > &  dists, float  radius, const SearchParams &  params  )

inlinevirtualinherited

Perform radius search.

Parameters

[in]	query	The query point
[out]	indices	The indinces of the neighbors found within the given radius
[out]	dists	The distances to the nearest neighbors found
[in]	radius	The radius used for search
[in]	params	Search parameters

Returns

Number of neighbors found

Reimplemented in cvflann::Index< Distance >, cvflann::Index< cv::L2< ElementType > >, and cvflann::Index< cv::L1< ElementType > >.

saveIndex()

template<typename Distance>

virtual void cvflann::AutotunedIndex< Distance >::saveIndex ( FILE *  stream )

inlinevirtual

Saves the index to a stream.

Implements cvflann::NNIndex< Distance >.

References cvflann::save_value().

Here is the call graph for this function:

size()

template<typename Distance>

virtual size_t cvflann::AutotunedIndex< Distance >::size ( ) const

inlinevirtual

Number of features in this index.

Implements cvflann::NNIndex< Distance >.

usedMemory()

template<typename Distance>

virtual int cvflann::AutotunedIndex< Distance >::usedMemory ( ) const

inlinevirtual

The amount of memory (in bytes) this index uses.

Implements cvflann::NNIndex< Distance >.

veclen()

template<typename Distance>

virtual size_t cvflann::AutotunedIndex< Distance >::veclen ( ) const

inlinevirtual

The length of each vector in this index.

Implements cvflann::NNIndex< Distance >.

---

The documentation for this class was generated from the following file:

• opencv2/flann/autotuned_index.h
