Softfloat support

SoftFloat is a software implementation of floating-point calculations according to IEEE 754 standard. More...

Collaboration diagram for Softfloat support:

Classes
struct	cv::softdouble
struct	cv::softfloat

Functions
	cv::softdouble::softdouble ()
	Default constructor. More...
	cv::softdouble::softdouble (const softdouble &c)
	Copy constructor. More...
	cv::softdouble::softdouble (const uint32_t)
	Construct from integer. More...
	cv::softdouble::softdouble (const uint64_t)
	cv::softdouble::softdouble (const int32_t)
	cv::softdouble::softdouble (const int64_t)
	cv::softdouble::softdouble (const double a)
	Construct from double. More...
	cv::softfloat::softfloat ()
	Default constructor. More...
	cv::softfloat::softfloat (const softfloat &c)
	Copy constructor. More...
	cv::softfloat::softfloat (const uint32_t)
	Construct from integer. More...
	cv::softfloat::softfloat (const uint64_t)
	cv::softfloat::softfloat (const int32_t)
	cv::softfloat::softfloat (const int64_t)
	cv::softfloat::softfloat (const float a)
	Construct from float. More...

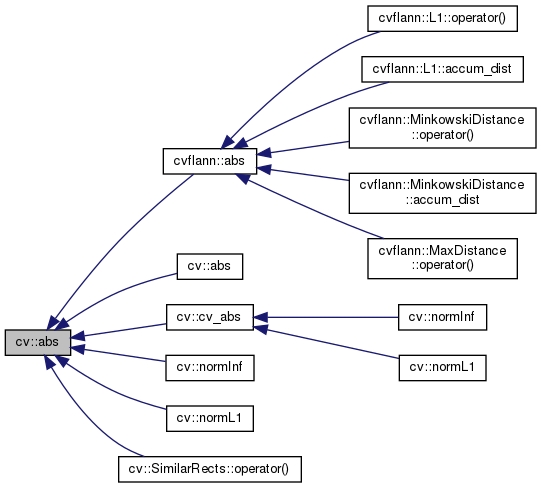

softfloat	cv::abs (softfloat a)
	Absolute value. More...
softdouble	cv::abs (softdouble a)
softfloat	cv::cbrt (const softfloat &a)
	Cube root. More...
softdouble	cv::cos (const softdouble &a)
	Cosine. More...
static softfloat	cv::softfloat::eps ()
	Difference between 1 and next representable value. More...
static softdouble	cv::softdouble::eps ()
	Difference between 1 and next representable value. More...
softfloat	cv::exp (const softfloat &a)
	Exponent. More...
softdouble	cv::exp (const softdouble &a)

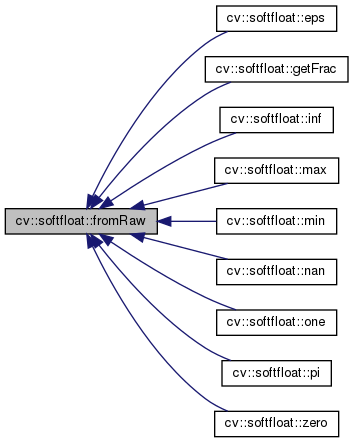

static const softfloat	cv::softfloat::fromRaw (const uint32_t a)
	Construct from raw. More...

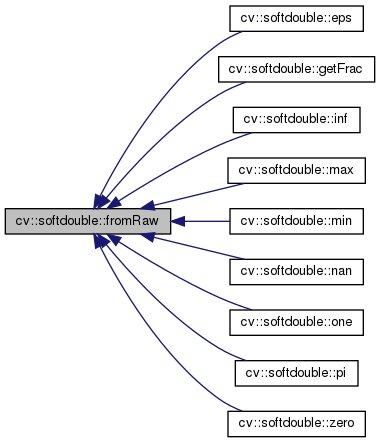

static softdouble	cv::softdouble::fromRaw (const uint64_t a)
	Construct from raw. More...
int	cv::softfloat::getExp () const
	Get 0-based exponent. More...
int	cv::softdouble::getExp () const
	Get 0-based exponent. More...
softfloat	cv::softfloat::getFrac () const
	Get a fraction part. More...
softdouble	cv::softdouble::getFrac () const
	Get a fraction part. More...
bool	cv::softfloat::getSign () const
	Get sign bit. More...
bool	cv::softdouble::getSign () const
	Get sign bit. More...
static softfloat	cv::softfloat::inf ()
	Positive infinity constant. More...
static softdouble	cv::softdouble::inf ()
	Positive infinity constant. More...
bool	cv::softfloat::isInf () const
	Inf state indicator. More...
bool	cv::softdouble::isInf () const
	Inf state indicator. More...
bool	cv::softfloat::isNaN () const
	NaN state indicator. More...
bool	cv::softdouble::isNaN () const
	NaN state indicator. More...
bool	cv::softfloat::isSubnormal () const
	Subnormal number indicator. More...
bool	cv::softdouble::isSubnormal () const
	Subnormal number indicator. More...
softfloat	cv::log (const softfloat &a)
	Natural logarithm. More...
softdouble	cv::log (const softdouble &a)
static softfloat	cv::softfloat::max ()
	Biggest finite value. More...
static softdouble	cv::softdouble::max ()
	Biggest finite value. More...

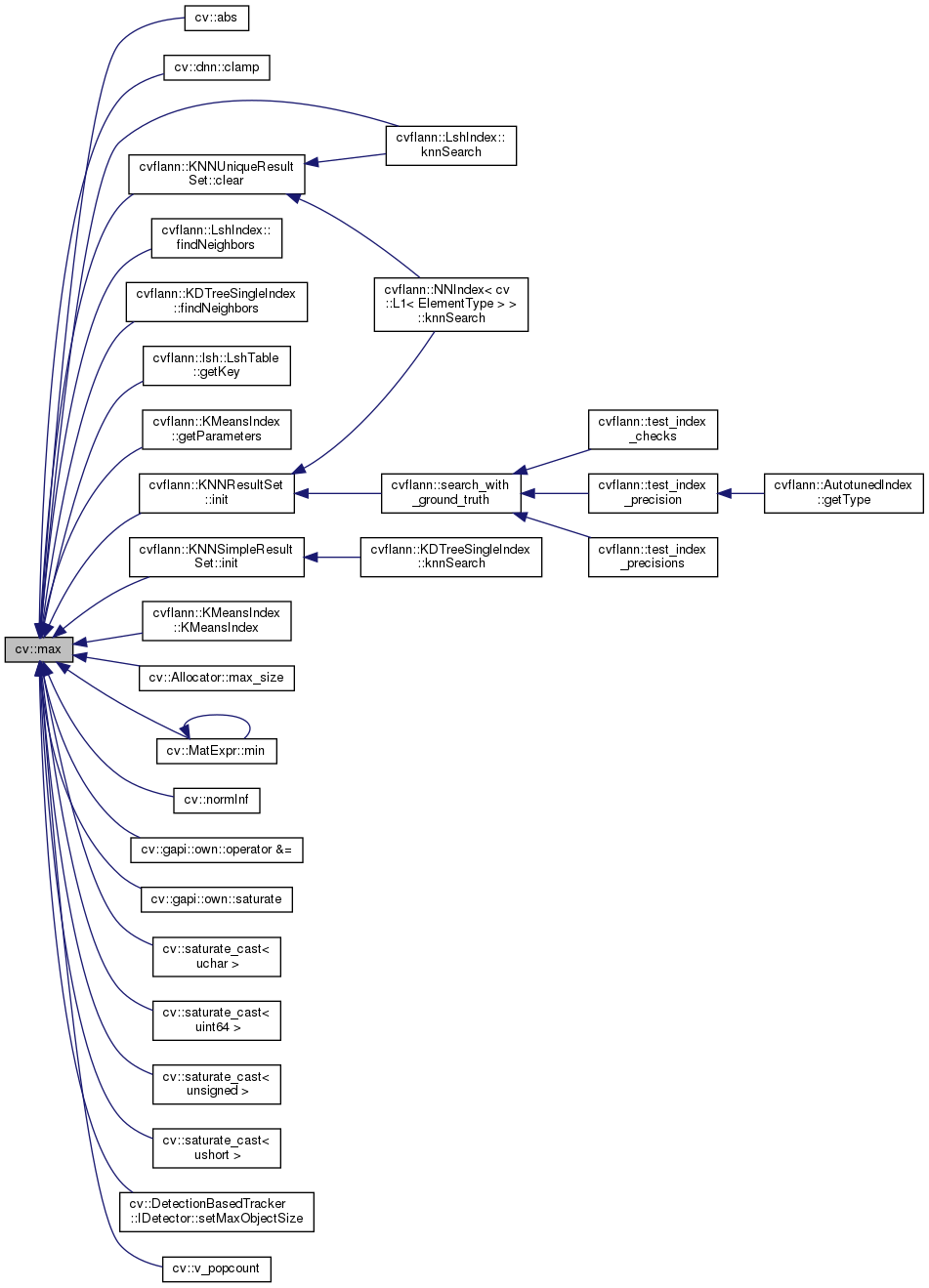

softfloat	cv::max (const softfloat &a, const softfloat &b)
softdouble	cv::max (const softdouble &a, const softdouble &b)
static softfloat	cv::softfloat::min ()
	Smallest normalized value. More...
static softdouble	cv::softdouble::min ()
	Smallest normalized value. More...

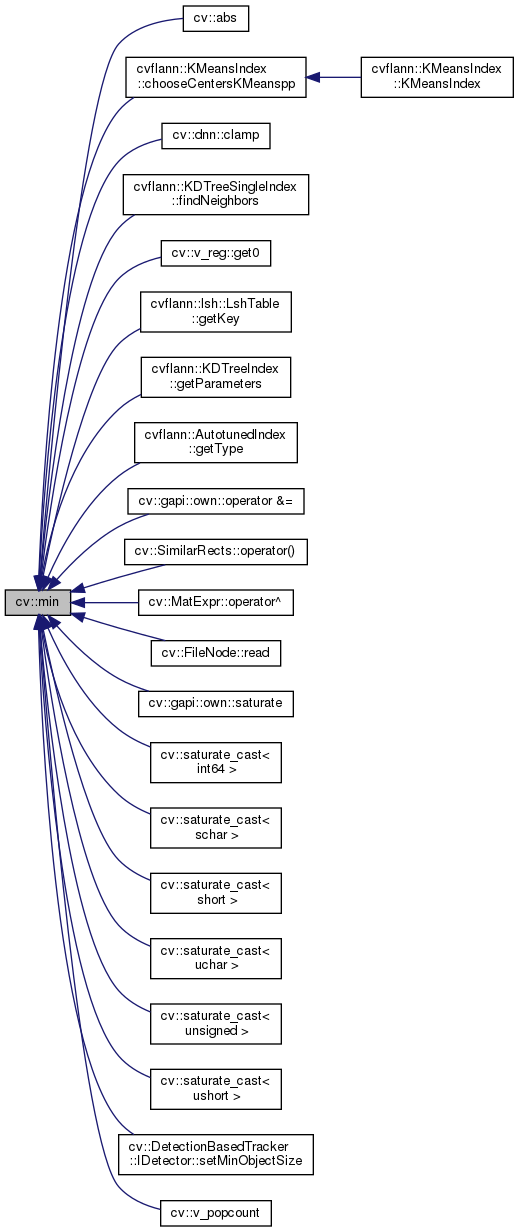

softfloat	cv::min (const softfloat &a, const softfloat &b)
	Min and Max functions. More...
softdouble	cv::min (const softdouble &a, const softdouble &b)
softfloat	cv::mulAdd (const softfloat &a, const softfloat &b, const softfloat &c)
	Fused Multiplication and Addition. More...
softdouble	cv::mulAdd (const softdouble &a, const softdouble &b, const softdouble &c)
static softfloat	cv::softfloat::nan ()
	Default NaN constant. More...
static softdouble	cv::softdouble::nan ()
	Default NaN constant. More...
static softfloat	cv::softfloat::one ()
	One constant. More...
static softdouble	cv::softdouble::one ()
	One constant. More...

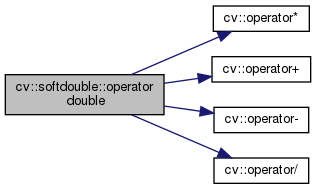

	cv::softdouble::operator double () const

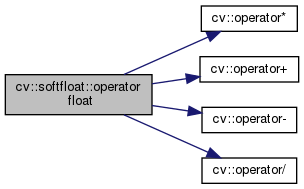

	cv::softfloat::operator float () const
	cv::softfloat::operator softdouble () const
	Type casts. More...
	cv::softdouble::operator softfloat () const
	Type casts. More...
bool	cv::softfloat::operator!= (const softfloat &) const
bool	cv::softdouble::operator!= (const softdouble &) const
softfloat	cv::softfloat::operator% (const softfloat &) const
	Remainder operator. More...
softdouble	cv::softdouble::operator% (const softdouble &) const
	Remainder operator. More...

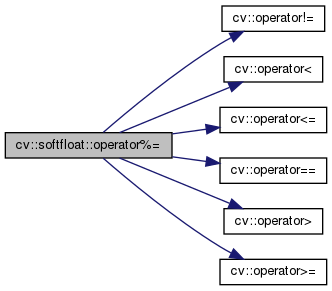

softfloat &	cv::softfloat::operator%= (const softfloat &a)

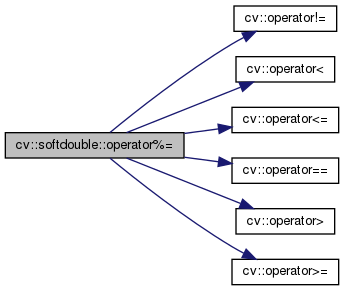

softdouble &	cv::softdouble::operator%= (const softdouble &a)
softfloat	cv::softfloat::operator* (const softfloat &) const
softdouble	cv::softdouble::operator* (const softdouble &) const
softfloat &	cv::softfloat::operator*= (const softfloat &a)
softdouble &	cv::softdouble::operator*= (const softdouble &a)
softfloat	cv::softfloat::operator+ (const softfloat &) const
	Basic arithmetics. More...
softdouble	cv::softdouble::operator+ (const softdouble &) const
	Basic arithmetics. More...
softfloat &	cv::softfloat::operator+= (const softfloat &a)
softdouble &	cv::softdouble::operator+= (const softdouble &a)
softfloat	cv::softfloat::operator- (const softfloat &) const
softfloat	cv::softfloat::operator- () const
softdouble	cv::softdouble::operator- (const softdouble &) const
softdouble	cv::softdouble::operator- () const
softfloat &	cv::softfloat::operator-= (const softfloat &a)
softdouble &	cv::softdouble::operator-= (const softdouble &a)
softfloat	cv::softfloat::operator/ (const softfloat &) const
softdouble	cv::softdouble::operator/ (const softdouble &) const
softfloat &	cv::softfloat::operator/= (const softfloat &a)
softdouble &	cv::softdouble::operator/= (const softdouble &a)
bool	cv::softfloat::operator< (const softfloat &) const
bool	cv::softdouble::operator< (const softdouble &) const
bool	cv::softfloat::operator<= (const softfloat &) const
bool	cv::softdouble::operator<= (const softdouble &) const
softfloat &	cv::softfloat::operator= (const softfloat &c)
	Assign constructor. More...
softdouble &	cv::softdouble::operator= (const softdouble &c)
	Assign constructor. More...
bool	cv::softfloat::operator== (const softfloat &) const
	Comparison operations. More...
bool	cv::softdouble::operator== (const softdouble &) const
	Comparison operations. More...
bool	cv::softfloat::operator> (const softfloat &) const
bool	cv::softdouble::operator> (const softdouble &) const
bool	cv::softfloat::operator>= (const softfloat &) const
bool	cv::softdouble::operator>= (const softdouble &) const
static softfloat	cv::softfloat::pi ()
	Correct pi approximation. More...
static softdouble	cv::softdouble::pi ()
	Correct pi approximation. More...

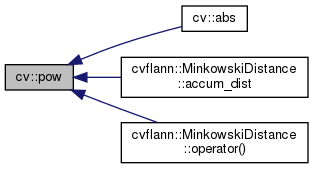

softfloat	cv::pow (const softfloat &a, const softfloat &b)
	Raising to the power. More...
softdouble	cv::pow (const softdouble &a, const softdouble &b)
template<typename _Tp >
static _Tp	cv::saturate_cast (softfloat a)
	Saturate casts. More...
template<typename _Tp >
static _Tp	cv::saturate_cast (softdouble a)
template<>
int64_t	cv::saturate_cast< int64_t > (softfloat a)
template<>
int64_t	cv::saturate_cast< int64_t > (softdouble a)
template<>
schar	cv::saturate_cast< schar > (softfloat a)
template<>
schar	cv::saturate_cast< schar > (softdouble a)
template<>

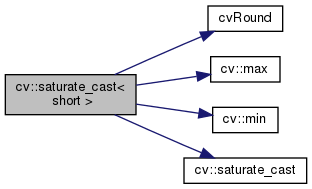

short	cv::saturate_cast< short > (softfloat a)
template<>
short	cv::saturate_cast< short > (softdouble a)
template<>
uchar	cv::saturate_cast< uchar > (softfloat a)
template<>
uchar	cv::saturate_cast< uchar > (softdouble a)
template<>
uint64_t	cv::saturate_cast< uint64_t > (softfloat a)
template<>
uint64_t	cv::saturate_cast< uint64_t > (softdouble a)
template<>
unsigned	cv::saturate_cast< unsigned > (softfloat a)
	Saturate cast to unsigned integer and unsigned long long integer We intentionally do not clip negative numbers, to make -1 become 0xffffffff etc. More...
template<>
unsigned	cv::saturate_cast< unsigned > (softdouble a)
template<>
ushort	cv::saturate_cast< ushort > (softfloat a)
template<>
ushort	cv::saturate_cast< ushort > (softdouble a)
softfloat	cv::softfloat::setExp (int e) const
	Construct a copy with new 0-based exponent. More...
softdouble	cv::softdouble::setExp (int e) const
	Construct a copy with new 0-based exponent. More...
softfloat	cv::softfloat::setFrac (const softfloat &s) const
	Construct a copy with provided significand. More...
softdouble	cv::softdouble::setFrac (const softdouble &s) const
	Construct a copy with provided significand. More...
softfloat	cv::softfloat::setSign (bool sign) const
	Construct a copy with new sign bit. More...
softdouble	cv::softdouble::setSign (bool sign) const
	Construct a copy with new sign bit. More...
softdouble	cv::sin (const softdouble &a)
	Sine. More...

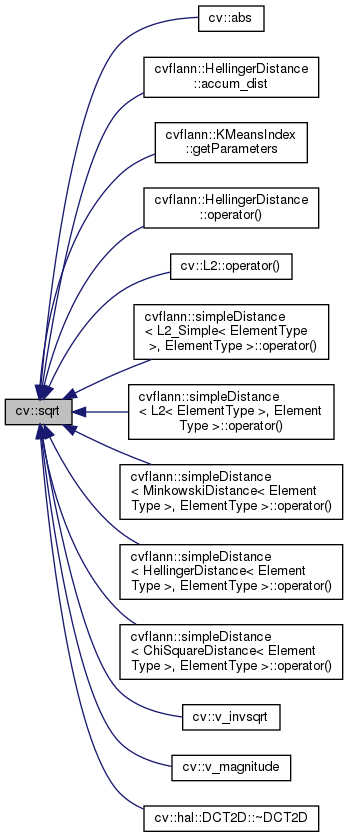

softfloat	cv::sqrt (const softfloat &a)
	Square root. More...
softdouble	cv::sqrt (const softdouble &a)
static softfloat	cv::softfloat::zero ()
	Zero constant. More...
static softdouble	cv::softdouble::zero ()
	Zero constant. More...

Variables
uint32_t	cv::softfloat::v
uint64_t	cv::softdouble::v

Detailed Description

SoftFloat is a software implementation of floating-point calculations according to IEEE 754 standard.

All calculations are done in integers, that's why they are machine-independent and bit-exact. This library can be useful in accuracy-critical parts like look-up tables generation, tests, etc. OpenCV contains a subset of SoftFloat partially rewritten to C++.

Types

There are two basic types: softfloat and softdouble. These types are binary compatible with float and double types respectively and support conversions to/from them. Other types from original SoftFloat library like fp16 or fp128 were thrown away as well as quiet/signaling NaN support, on-the-fly rounding mode switch and exception flags (though exceptions can be implemented in the future).

Operations

Both types support the following:

• Construction from signed and unsigned 32-bit and 64 integers, float/double or raw binary representation
• Conversions between each other, to float or double and to int using cvRound, cvTrunc, cvFloor, cvCeil or a bunch of saturate_cast functions
• Add, subtract, multiply, divide, remainder, square root, FMA with absolute precision
• Comparison operations
• Explicit sign, exponent and significand manipulation through get/set methods, number state indicators (isInf, isNan, isSubnormal)
• Type-specific constants like eps, minimum/maximum value, best pi approximation, etc.
• min(), max(), abs(), exp(), log() and pow() functions

Function Documentation

softdouble() [1/7]

cv::softdouble::softdouble ( )

inline

#include <opencv2/core/softfloat.hpp>

Default constructor.

softdouble() [2/7]

cv::softdouble::softdouble ( const softdouble &  c )

inline

#include <opencv2/core/softfloat.hpp>

Copy constructor.

References cv::softdouble::v.

softdouble() [3/7]

cv::softdouble::softdouble ( const uint32_t  )

explicit

#include <opencv2/core/softfloat.hpp>

Construct from integer.

softdouble() [4/7]

cv::softdouble::softdouble ( const uint64_t  )

explicit

#include <opencv2/core/softfloat.hpp>

softdouble() [5/7]

cv::softdouble::softdouble ( const int32_t  )

explicit

#include <opencv2/core/softfloat.hpp>

softdouble() [6/7]

cv::softdouble::softdouble ( const int64_t  )

explicit

#include <opencv2/core/softfloat.hpp>

softdouble() [7/7]

cv::softdouble::softdouble ( const double  a )

inlineexplicit

#include <opencv2/core/softfloat.hpp>

Construct from double.

References Cv64suf::f, and Cv64suf::u.

softfloat() [1/7]

cv::softfloat::softfloat ( )

inline

#include <opencv2/core/softfloat.hpp>

Default constructor.

softfloat() [2/7]

cv::softfloat::softfloat ( const softfloat &  c )

inline

#include <opencv2/core/softfloat.hpp>

Copy constructor.

References cv::softfloat::v.

softfloat() [3/7]

cv::softfloat::softfloat ( const uint32_t  )

explicit

#include <opencv2/core/softfloat.hpp>

Construct from integer.

softfloat() [4/7]

cv::softfloat::softfloat ( const uint64_t  )

explicit

#include <opencv2/core/softfloat.hpp>

softfloat() [5/7]

cv::softfloat::softfloat ( const int32_t  )

explicit

#include <opencv2/core/softfloat.hpp>

softfloat() [6/7]

cv::softfloat::softfloat ( const int64_t  )

explicit

#include <opencv2/core/softfloat.hpp>

softfloat() [7/7]

cv::softfloat::softfloat ( const float  a )

inlineexplicit

#include <opencv2/core/softfloat.hpp>

Construct from float.

References Cv32suf::f, and Cv32suf::u.

abs() [1/2]

softfloat cv::abs ( softfloat  a )

inline

#include <opencv2/core/softfloat.hpp>

Absolute value.

Examples:

samples/cpp/camshiftdemo.cpp, samples/cpp/contours2.cpp, samples/cpp/stitching_detailed.cpp, samples/cpp/warpPerspective_demo.cpp, and samples/tapi/hog.cpp.

References cv::softfloat::v.

Referenced by cvflann::abs(), cv::abs(), cv::cv_abs(), cv::normInf(), cv::normL1(), and cv::SimilarRects::operator()().

Here is the caller graph for this function:

abs() [2/2]

softdouble cv::abs ( softdouble  a )

inline

#include <opencv2/core/softfloat.hpp>

References cv::cbrt(), cv::cos(), cv::exp(), cv::log(), cv::pow(), cv::sin(), and cv::softdouble::v.

Here is the call graph for this function:

cbrt()

softfloat cv::cbrt

(

const softfloat &

a

)

#include <opencv2/core/softfloat.hpp>

Cube root.

Special cases:

• cbrt(NaN) is NaN
• cbrt(+/-Inf) is +/-Inf

Referenced by cv::abs().

Here is the caller graph for this function:

cos()

softdouble cv::cos

(

const softdouble &

a

)

#include <opencv2/core/softfloat.hpp>

Cosine.

Special cases:

• cos(Inf) or cos(NaN) is NaN
• cos(x) == +/- 1 when cos(x) is close to +/- 1

Examples:

samples/cpp/contours2.cpp, samples/cpp/image_alignment.cpp, samples/cpp/kalman.cpp, samples/cpp/polar_transforms.cpp, samples/cpp/tutorial_code/ImgTrans/houghlines.cpp, samples/cpp/tutorial_code/ml/introduction_to_pca/introduction_to_pca.cpp, and samples/dnn/text_detection.cpp.

Referenced by cv::abs().

Here is the caller graph for this function:

eps() [1/2]

static softfloat cv::softfloat::eps ( )

inlinestatic

#include <opencv2/core/softfloat.hpp>

Difference between 1 and next representable value.

References cv::softfloat::fromRaw().

Here is the call graph for this function:

eps() [2/2]

static softdouble cv::softdouble::eps ( )

inlinestatic

#include <opencv2/core/softfloat.hpp>

Difference between 1 and next representable value.

References cv::softdouble::fromRaw().

Here is the call graph for this function:

exp() [1/2]

softfloat cv::exp

(

const softfloat &

a

)

#include <opencv2/core/softfloat.hpp>

Exponent.

Special cases:

• exp(NaN) is NaN
• exp(-Inf) == 0
• exp(+Inf) == +Inf

Examples:

samples/cpp/polar_transforms.cpp.

Referenced by cv::abs(), and cv::hal::DCT2D::~DCT2D().

Here is the caller graph for this function:

exp() [2/2]

softdouble cv::exp

(

const softdouble &

a

)

#include <opencv2/core/softfloat.hpp>

fromRaw() [1/2]

static const softfloat cv::softfloat::fromRaw ( const uint32_t  a )

inlinestatic

#include <opencv2/core/softfloat.hpp>

Construct from raw.

Builds new value from raw binary representation

References cv::softfloat::v.

Referenced by cv::softfloat::eps(), cv::softfloat::getFrac(), cv::softfloat::inf(), cv::softfloat::max(), cv::softfloat::min(), cv::softfloat::nan(), cv::softfloat::one(), cv::softfloat::pi(), and cv::softfloat::zero().

Here is the caller graph for this function:

fromRaw() [2/2]

static softdouble cv::softdouble::fromRaw ( const uint64_t  a )

inlinestatic

#include <opencv2/core/softfloat.hpp>

Construct from raw.

Builds new value from raw binary representation

References cv::softdouble::v.

Referenced by cv::softdouble::eps(), cv::softdouble::getFrac(), cv::softdouble::inf(), cv::softdouble::max(), cv::softdouble::min(), cv::softdouble::nan(), cv::softdouble::one(), cv::softdouble::pi(), and cv::softdouble::zero().

Here is the caller graph for this function:

getExp() [1/2]

int cv::softfloat::getExp ( ) const

inline

#include <opencv2/core/softfloat.hpp>

Get 0-based exponent.

getExp() [2/2]

int cv::softdouble::getExp ( ) const

inline

#include <opencv2/core/softfloat.hpp>

Get 0-based exponent.

getFrac() [1/2]

softfloat cv::softfloat::getFrac ( ) const

inline

#include <opencv2/core/softfloat.hpp>

Get a fraction part.

Returns a number 1 <= x < 2 with the same significand

References cv::softfloat::fromRaw().

Here is the call graph for this function:

getFrac() [2/2]

softdouble cv::softdouble::getFrac ( ) const

inline

#include <opencv2/core/softfloat.hpp>

Get a fraction part.

Returns a number 1 <= x < 2 with the same significand

References cv::softdouble::fromRaw().

Here is the call graph for this function:

getSign() [1/2]

bool cv::softfloat::getSign ( ) const

inline

#include <opencv2/core/softfloat.hpp>

Get sign bit.

getSign() [2/2]

bool cv::softdouble::getSign ( ) const

inline

#include <opencv2/core/softfloat.hpp>

Get sign bit.

inf() [1/2]

static softfloat cv::softfloat::inf ( )

inlinestatic

#include <opencv2/core/softfloat.hpp>

Positive infinity constant.

References cv::softfloat::fromRaw().

Here is the call graph for this function:

inf() [2/2]

static softdouble cv::softdouble::inf ( )

inlinestatic

#include <opencv2/core/softfloat.hpp>

Positive infinity constant.

References cv::softdouble::fromRaw().

Here is the call graph for this function:

isInf() [1/2]

bool cv::softfloat::isInf ( ) const

inline

#include <opencv2/core/softfloat.hpp>

Inf state indicator.

isInf() [2/2]

bool cv::softdouble::isInf ( ) const

inline

#include <opencv2/core/softfloat.hpp>

Inf state indicator.

isNaN() [1/2]

bool cv::softfloat::isNaN ( ) const

inline

#include <opencv2/core/softfloat.hpp>

NaN state indicator.

isNaN() [2/2]

bool cv::softdouble::isNaN ( ) const

inline

#include <opencv2/core/softfloat.hpp>

NaN state indicator.

isSubnormal() [1/2]

bool cv::softfloat::isSubnormal ( ) const

inline

#include <opencv2/core/softfloat.hpp>

Subnormal number indicator.

isSubnormal() [2/2]

bool cv::softdouble::isSubnormal ( ) const

inline

#include <opencv2/core/softfloat.hpp>

Subnormal number indicator.

log() [1/2]

softfloat cv::log

(

const softfloat &

a

)

#include <opencv2/core/softfloat.hpp>

Natural logarithm.

Special cases:

• log(NaN), log(x < 0) are NaN
• log(0) == -Inf

Examples:

samples/cpp/polar_transforms.cpp, and samples/cpp/stitching_detailed.cpp.

Referenced by cv::abs(), cvflann::KL_Divergence< T >::accum_dist(), cvflann::KL_Divergence< T >::operator()(), and cv::hal::DCT2D::~DCT2D().

Here is the caller graph for this function:

log() [2/2]

softdouble cv::log

(

const softdouble &

a

)

#include <opencv2/core/softfloat.hpp>

max() [1/4]

static softfloat cv::softfloat::max ( )

inlinestatic

#include <opencv2/core/softfloat.hpp>

Biggest finite value.

References cv::softfloat::fromRaw().

Here is the call graph for this function:

max() [2/4]

static softdouble cv::softdouble::max ( )

inlinestatic

#include <opencv2/core/softfloat.hpp>

Biggest finite value.

References cv::softdouble::fromRaw().

Here is the call graph for this function:

max() [3/4]

softfloat cv::max ( const softfloat &  a, const softfloat &  b  )

inline

#include <opencv2/core/softfloat.hpp>

Examples:

samples/cpp/fitellipse.cpp, samples/cpp/grabcut.cpp, samples/cpp/train_HOG.cpp, samples/cpp/warpPerspective_demo.cpp, samples/dnn/object_detection.cpp, and samples/tapi/hog.cpp.

Referenced by cv::abs(), cv::dnn::clamp(), cvflann::KNNUniqueResultSet< DistanceType >::clear(), cvflann::LshIndex< Distance >::findNeighbors(), cvflann::KDTreeSingleIndex< Distance >::findNeighbors(), cvflann::lsh::LshTable< ElementType >::getKey(), cvflann::KMeansIndex< Distance >::getParameters(), cvflann::KNNSimpleResultSet< DistanceType >::init(), cvflann::KNNResultSet< DistanceType >::init(), cvflann::KMeansIndex< Distance >::KMeansIndex(), cvflann::LshIndex< Distance >::knnSearch(), cv::Allocator< _Tp >::max_size(), cv::MatExpr::min(), cv::normInf(), cv::gapi::own::operator &=(), cv::gapi::own::saturate(), cv::saturate_cast< uchar >(), cv::saturate_cast< uint64 >(), cv::saturate_cast< unsigned >(), cv::saturate_cast< ushort >(), cv::DetectionBasedTracker::IDetector::setMaxObjectSize(), and cv::v_popcount().

Here is the caller graph for this function:

max() [4/4]

softdouble cv::max ( const softdouble &  a, const softdouble &  b  )

inline

#include <opencv2/core/softfloat.hpp>

Referenced by cv::saturate_cast< schar >(), cv::saturate_cast< short >(), cv::saturate_cast< uchar >(), and cv::saturate_cast< ushort >().

Here is the caller graph for this function:

min() [1/4]

static softfloat cv::softfloat::min ( )

inlinestatic

#include <opencv2/core/softfloat.hpp>

Smallest normalized value.

References cv::softfloat::fromRaw().

Here is the call graph for this function:

min() [2/4]

static softdouble cv::softdouble::min ( )

inlinestatic

#include <opencv2/core/softfloat.hpp>

Smallest normalized value.

References cv::softdouble::fromRaw().

Here is the call graph for this function:

min() [3/4]

softfloat cv::min ( const softfloat &  a, const softfloat &  b  )

inline

#include <opencv2/core/softfloat.hpp>

Min and Max functions.

Examples:

samples/cpp/falsecolor.cpp, samples/cpp/fitellipse.cpp, samples/cpp/grabcut.cpp, samples/cpp/polar_transforms.cpp, and samples/cpp/stitching_detailed.cpp.

Referenced by cv::abs(), cvflann::KMeansIndex< Distance >::chooseCentersKMeanspp(), cv::dnn::clamp(), cvflann::KDTreeSingleIndex< Distance >::findNeighbors(), cv::v_reg< _Tp, n >::get0(), cvflann::lsh::LshTable< ElementType >::getKey(), cvflann::KDTreeIndex< Distance >::getParameters(), cvflann::AutotunedIndex< Distance >::getType(), cv::gapi::own::operator &=(), cv::SimilarRects::operator()(), cv::MatExpr::operator^(), cv::FileNode::read(), cv::gapi::own::saturate(), cv::saturate_cast< int64 >(), cv::saturate_cast< schar >(), cv::saturate_cast< short >(), cv::saturate_cast< uchar >(), cv::saturate_cast< unsigned >(), cv::saturate_cast< ushort >(), cv::DetectionBasedTracker::IDetector::setMinObjectSize(), and cv::v_popcount().

Here is the caller graph for this function:

min() [4/4]

softdouble cv::min ( const softdouble &  a, const softdouble &  b  )

inline

#include <opencv2/core/softfloat.hpp>

Referenced by cv::saturate_cast< schar >(), cv::saturate_cast< short >(), cv::saturate_cast< uchar >(), and cv::saturate_cast< ushort >().

Here is the caller graph for this function:

mulAdd() [1/2]

softfloat cv::mulAdd	(	const softfloat &	a,
		const softfloat &	b,
		const softfloat &	c
	)

#include <opencv2/core/softfloat.hpp>

Fused Multiplication and Addition.

Computes (a*b)+c with single rounding

mulAdd() [2/2]

softdouble cv::mulAdd	(	const softdouble &	a,
		const softdouble &	b,
		const softdouble &	c
	)

#include <opencv2/core/softfloat.hpp>

nan() [1/2]

static softfloat cv::softfloat::nan ( )

inlinestatic

#include <opencv2/core/softfloat.hpp>

Default NaN constant.

References cv::softfloat::fromRaw().

Here is the call graph for this function:

nan() [2/2]

static softdouble cv::softdouble::nan ( )

inlinestatic

#include <opencv2/core/softfloat.hpp>

Default NaN constant.

References CV_BIG_INT, and cv::softdouble::fromRaw().

Here is the call graph for this function:

one() [1/2]

static softfloat cv::softfloat::one ( )

inlinestatic

#include <opencv2/core/softfloat.hpp>

One constant.

References cv::softfloat::fromRaw().

Here is the call graph for this function:

one() [2/2]

static softdouble cv::softdouble::one ( )

inlinestatic

#include <opencv2/core/softfloat.hpp>

One constant.

References cv::softdouble::fromRaw().

Here is the call graph for this function:

operator double()

cv::softdouble::operator double ( ) const

inline

#include <opencv2/core/softfloat.hpp>

References Cv64suf::f, cv::operator*(), cv::operator+(), cv::operator-(), cv::operator/(), and Cv64suf::u.

Here is the call graph for this function:

operator float()

cv::softfloat::operator float ( ) const

inline

#include <opencv2/core/softfloat.hpp>

References Cv32suf::f, cv::operator*(), cv::operator+(), cv::operator-(), cv::operator/(), and Cv32suf::u.

Here is the call graph for this function:

operator softdouble()

cv::softfloat::operator softdouble

(

)

const

#include <opencv2/core/softfloat.hpp>

Type casts.

operator softfloat()

cv::softdouble::operator softfloat

(

)

const

#include <opencv2/core/softfloat.hpp>

Type casts.

operator!=() [1/2]

bool cv::softfloat::operator!=

(

const softfloat &

)

const

#include <opencv2/core/softfloat.hpp>

operator!=() [2/2]

bool cv::softdouble::operator!=

(

const softdouble &

)

const

#include <opencv2/core/softfloat.hpp>

operator%() [1/2]

softfloat cv::softfloat::operator%

(

const softfloat &

)

const

#include <opencv2/core/softfloat.hpp>

Remainder operator.

A quote from original SoftFloat manual:

The IEEE Standard remainder operation computes the value a - n * b, where n is the integer closest to a / b. If a / b is exactly halfway between two integers, n is the even integer closest to a / b. The IEEE Standard’s remainder operation is always exact and so requires no rounding. Depending on the relative magnitudes of the operands, the remainder functions can take considerably longer to execute than the other SoftFloat functions. This is an inherent characteristic of the remainder operation itself and is not a flaw in the SoftFloat implementation.

operator%() [2/2]

softdouble cv::softdouble::operator%

(

const softdouble &

)

const

#include <opencv2/core/softfloat.hpp>

Remainder operator.

A quote from original SoftFloat manual:

The IEEE Standard remainder operation computes the value a - n * b, where n is the integer closest to a / b. If a / b is exactly halfway between two integers, n is the even integer closest to a / b. The IEEE Standard’s remainder operation is always exact and so requires no rounding. Depending on the relative magnitudes of the operands, the remainder functions can take considerably longer to execute than the other SoftFloat functions. This is an inherent characteristic of the remainder operation itself and is not a flaw in the SoftFloat implementation.

operator%=() [1/2]

softfloat& cv::softfloat::operator%= ( const softfloat &  a )

inline

#include <opencv2/core/softfloat.hpp>

References cv::operator!=(), cv::operator<(), cv::operator<=(), cv::operator==(), cv::operator>(), and cv::operator>=().

Here is the call graph for this function:

operator%=() [2/2]

softdouble& cv::softdouble::operator%= ( const softdouble &  a )

inline

#include <opencv2/core/softfloat.hpp>

References cv::operator!=(), cv::operator<(), cv::operator<=(), cv::operator==(), cv::operator>(), and cv::operator>=().

Here is the call graph for this function:

operator*() [1/2]

softfloat cv::softfloat::operator*

(

const softfloat &

)

const

#include <opencv2/core/softfloat.hpp>

operator*() [2/2]

softdouble cv::softdouble::operator*

(

const softdouble &

)

const

#include <opencv2/core/softfloat.hpp>

operator*=() [1/2]

softfloat& cv::softfloat::operator*= ( const softfloat &  a )

inline

#include <opencv2/core/softfloat.hpp>

operator*=() [2/2]

softdouble& cv::softdouble::operator*= ( const softdouble &  a )

inline

#include <opencv2/core/softfloat.hpp>

operator+() [1/2]

softfloat cv::softfloat::operator+

(

const softfloat &

)

const

#include <opencv2/core/softfloat.hpp>

Basic arithmetics.

operator+() [2/2]

softdouble cv::softdouble::operator+

(

const softdouble &

)

const

#include <opencv2/core/softfloat.hpp>

Basic arithmetics.

operator+=() [1/2]

softfloat& cv::softfloat::operator+= ( const softfloat &  a )

inline

#include <opencv2/core/softfloat.hpp>

operator+=() [2/2]

softdouble& cv::softdouble::operator+= ( const softdouble &  a )

inline

#include <opencv2/core/softfloat.hpp>

operator-() [1/4]

softfloat cv::softfloat::operator-

(

const softfloat &

)

const

#include <opencv2/core/softfloat.hpp>

operator-() [2/4]

softfloat cv::softfloat::operator- ( ) const

inline

#include <opencv2/core/softfloat.hpp>

References cv::softfloat::v.

operator-() [3/4]

softdouble cv::softdouble::operator-

(

const softdouble &

)

const

#include <opencv2/core/softfloat.hpp>

operator-() [4/4]

softdouble cv::softdouble::operator- ( ) const

inline

#include <opencv2/core/softfloat.hpp>

References cv::softdouble::v.

operator-=() [1/2]

softfloat& cv::softfloat::operator-= ( const softfloat &  a )

inline

#include <opencv2/core/softfloat.hpp>

operator-=() [2/2]

softdouble& cv::softdouble::operator-= ( const softdouble &  a )

inline

#include <opencv2/core/softfloat.hpp>

operator/() [1/2]

softfloat cv::softfloat::operator/

(

const softfloat &

)

const

#include <opencv2/core/softfloat.hpp>

operator/() [2/2]

softdouble cv::softdouble::operator/

(

const softdouble &

)

const

#include <opencv2/core/softfloat.hpp>

operator/=() [1/2]

softfloat& cv::softfloat::operator/= ( const softfloat &  a )

inline

#include <opencv2/core/softfloat.hpp>

operator/=() [2/2]

softdouble& cv::softdouble::operator/= ( const softdouble &  a )

inline

#include <opencv2/core/softfloat.hpp>

operator<() [1/2]

bool cv::softfloat::operator<

(

const softfloat &

)

const

#include <opencv2/core/softfloat.hpp>

operator<() [2/2]

bool cv::softdouble::operator<

(

const softdouble &

)

const

#include <opencv2/core/softfloat.hpp>

operator<=() [1/2]

bool cv::softfloat::operator<=

(

const softfloat &

)

const

#include <opencv2/core/softfloat.hpp>

operator<=() [2/2]

bool cv::softdouble::operator<=

(

const softdouble &

)

const

#include <opencv2/core/softfloat.hpp>

operator=() [1/2]

softfloat& cv::softfloat::operator= ( const softfloat &  c )

inline

#include <opencv2/core/softfloat.hpp>

Assign constructor.

References cv::softfloat::v.

operator=() [2/2]

softdouble& cv::softdouble::operator= ( const softdouble &  c )

inline

#include <opencv2/core/softfloat.hpp>

Assign constructor.

References cv::softdouble::v.

operator==() [1/2]

bool cv::softfloat::operator==

(

const softfloat &

)

const

#include <opencv2/core/softfloat.hpp>

Comparison operations.

• Any operation with NaN produces false
  • The only exception is when x is NaN: x != y for any y.
• Positive and negative zeros are equal

operator==() [2/2]

bool cv::softdouble::operator==

(

const softdouble &

)

const

#include <opencv2/core/softfloat.hpp>

Comparison operations.

• Any operation with NaN produces false
  • The only exception is when x is NaN: x != y for any y.
• Positive and negative zeros are equal

operator>() [1/2]

bool cv::softfloat::operator>

(

const softfloat &

)

const

#include <opencv2/core/softfloat.hpp>

operator>() [2/2]

bool cv::softdouble::operator>

(

const softdouble &

)

const

#include <opencv2/core/softfloat.hpp>

operator>=() [1/2]

bool cv::softfloat::operator>=

(

const softfloat &

)

const

#include <opencv2/core/softfloat.hpp>

operator>=() [2/2]

bool cv::softdouble::operator>=

(

const softdouble &

)

const

#include <opencv2/core/softfloat.hpp>

pi() [1/2]

static softfloat cv::softfloat::pi ( )

inlinestatic

#include <opencv2/core/softfloat.hpp>

Correct pi approximation.

References cv::softfloat::fromRaw().

Here is the call graph for this function:

pi() [2/2]

static softdouble cv::softdouble::pi ( )

inlinestatic

#include <opencv2/core/softfloat.hpp>

Correct pi approximation.

References CV_BIG_INT, and cv::softdouble::fromRaw().

Here is the call graph for this function:

pow() [1/2]

softfloat cv::pow	(	const softfloat &	a,
		const softfloat &	b
	)

#include <opencv2/core/softfloat.hpp>

Raising to the power.

Special cases:

• x**NaN is NaN for any x
• ( |x| == 1 )**Inf is NaN
• ( |x| > 1 )**+Inf or ( |x| < 1 )**-Inf is +Inf
• ( |x| > 1 )**-Inf or ( |x| < 1 )**+Inf is 0
• x ** 0 == 1 for any x
• x ** 1 == 1 for any x
• NaN ** y is NaN for any other y
• Inf**(y < 0) == 0
• Inf ** y is +Inf for any other y
• (x < 0)**y is NaN for any other y if x can't be correctly rounded to integer
• 0 ** 0 == 1
• 0 ** (y < 0) is +Inf
• 0 ** (y > 0) is 0

Examples:

samples/cpp/distrans.cpp.

Referenced by cv::abs(), cvflann::MinkowskiDistance< T >::accum_dist(), and cvflann::MinkowskiDistance< T >::operator()().

Here is the caller graph for this function:

pow() [2/2]

softdouble cv::pow	(	const softdouble &	a,
		const softdouble &	b
	)

#include <opencv2/core/softfloat.hpp>

saturate_cast() [1/2]

template<typename _Tp >

static _Tp cv::saturate_cast ( softfloat  a )

inlinestatic

#include <opencv2/core/softfloat.hpp>

Saturate casts.

saturate_cast() [2/2]

template<typename _Tp >

static _Tp cv::saturate_cast ( softdouble  a )

inlinestatic

#include <opencv2/core/softfloat.hpp>

saturate_cast< int64_t >() [1/2]

template<>

int64_t cv::saturate_cast< int64_t > ( softfloat  a )

inline

#include <opencv2/core/softfloat.hpp>

References cvRound().

Here is the call graph for this function:

saturate_cast< int64_t >() [2/2]

template<>

int64_t cv::saturate_cast< int64_t > ( softdouble  a )

inline

#include <opencv2/core/softfloat.hpp>

saturate_cast< schar >() [1/2]

template<>

schar cv::saturate_cast< schar > ( softfloat  a )

inline

#include <opencv2/core/softfloat.hpp>

References cvRound(), cv::max(), and cv::min().

Here is the call graph for this function:

saturate_cast< schar >() [2/2]

template<>

schar cv::saturate_cast< schar > ( softdouble  a )

inline

#include <opencv2/core/softfloat.hpp>

References cvRound(), cv::max(), and cv::min().

Here is the call graph for this function:

saturate_cast< short >() [1/2]

template<>

short cv::saturate_cast< short > ( softfloat  a )

inline

#include <opencv2/core/softfloat.hpp>

References cvRound(), cv::max(), and cv::min().

Here is the call graph for this function:

saturate_cast< short >() [2/2]

template<>

short cv::saturate_cast< short > ( softdouble  a )

inline

#include <opencv2/core/softfloat.hpp>

References cvRound(), cv::max(), cv::min(), and cv::saturate_cast().

Here is the call graph for this function:

saturate_cast< uchar >() [1/2]

template<>

uchar cv::saturate_cast< uchar > ( softfloat  a )

inline

#include <opencv2/core/softfloat.hpp>

References cvRound(), cv::max(), and cv::min().

Here is the call graph for this function:

saturate_cast< uchar >() [2/2]

template<>

uchar cv::saturate_cast< uchar > ( softdouble  a )

inline

#include <opencv2/core/softfloat.hpp>

References cvRound(), cv::max(), and cv::min().

Here is the call graph for this function:

saturate_cast< uint64_t >() [1/2]

template<>

uint64_t cv::saturate_cast< uint64_t > ( softfloat  a )

inline

#include <opencv2/core/softfloat.hpp>

References cvRound().

Here is the call graph for this function:

saturate_cast< uint64_t >() [2/2]

template<>

uint64_t cv::saturate_cast< uint64_t > ( softdouble  a )

inline

#include <opencv2/core/softfloat.hpp>

saturate_cast< unsigned >() [1/2]

template<>

unsigned cv::saturate_cast< unsigned > ( softfloat  a )

inline

#include <opencv2/core/softfloat.hpp>

Saturate cast to unsigned integer and unsigned long long integer We intentionally do not clip negative numbers, to make -1 become 0xffffffff etc.

References cvRound().

Here is the call graph for this function:

saturate_cast< unsigned >() [2/2]

template<>

unsigned cv::saturate_cast< unsigned > ( softdouble  a )

inline

#include <opencv2/core/softfloat.hpp>

References cvRound().

Here is the call graph for this function:

saturate_cast< ushort >() [1/2]

template<>

ushort cv::saturate_cast< ushort > ( softfloat  a )

inline

#include <opencv2/core/softfloat.hpp>

References cvRound(), cv::max(), and cv::min().

Here is the call graph for this function:

saturate_cast< ushort >() [2/2]

template<>

ushort cv::saturate_cast< ushort > ( softdouble  a )

inline

#include <opencv2/core/softfloat.hpp>

References cvRound(), cv::max(), and cv::min().

Here is the call graph for this function:

setExp() [1/2]

softfloat cv::softfloat::setExp ( int  e ) const

inline

#include <opencv2/core/softfloat.hpp>

Construct a copy with new 0-based exponent.

References cv::softfloat::v.

setExp() [2/2]

softdouble cv::softdouble::setExp ( int  e ) const

inline

#include <opencv2/core/softfloat.hpp>

Construct a copy with new 0-based exponent.

References cv::softdouble::v.

setFrac() [1/2]

softfloat cv::softfloat::setFrac ( const softfloat &  s ) const

inline

#include <opencv2/core/softfloat.hpp>

Construct a copy with provided significand.

Constructs a copy of a number with significand taken from parameter

References cv::softfloat::v.

setFrac() [2/2]

softdouble cv::softdouble::setFrac ( const softdouble &  s ) const

inline

#include <opencv2/core/softfloat.hpp>

Construct a copy with provided significand.

Constructs a copy of a number with significand taken from parameter

References cv::softdouble::v.

setSign() [1/2]

softfloat cv::softfloat::setSign ( bool  sign ) const

inline

#include <opencv2/core/softfloat.hpp>

Construct a copy with new sign bit.

References cv::softfloat::v.

setSign() [2/2]

softdouble cv::softdouble::setSign ( bool  sign ) const

inline

#include <opencv2/core/softfloat.hpp>

Construct a copy with new sign bit.

References cv::softdouble::v.

sin()

softdouble cv::sin

(

const softdouble &

a

)

#include <opencv2/core/softfloat.hpp>

Sine.

Special cases:

• sin(Inf) or sin(NaN) is NaN
• sin(x) == x when sin(x) is close to zero

Examples:

samples/cpp/contours2.cpp, samples/cpp/image_alignment.cpp, samples/cpp/kalman.cpp, samples/cpp/polar_transforms.cpp, samples/cpp/tutorial_code/ImgTrans/houghlines.cpp, samples/cpp/tutorial_code/ml/introduction_to_pca/introduction_to_pca.cpp, and samples/dnn/text_detection.cpp.

Referenced by cv::abs().

Here is the caller graph for this function:

sqrt() [1/2]

softfloat cv::sqrt

(

const softfloat &

a

)

#include <opencv2/core/softfloat.hpp>

Square root.

Examples:

samples/cpp/kalman.cpp, samples/cpp/squares.cpp, samples/cpp/stitching_detailed.cpp, samples/cpp/tutorial_code/features2D/Homography/pose_from_homography.cpp, samples/cpp/tutorial_code/ml/introduction_to_pca/introduction_to_pca.cpp, and samples/tapi/squares.cpp.

Referenced by cv::abs(), cvflann::HellingerDistance< T >::accum_dist(), cvflann::KMeansIndex< Distance >::getParameters(), cvflann::HellingerDistance< T >::operator()(), cv::L2< T >::operator()(), cvflann::simpleDistance< L2_Simple< ElementType >, ElementType >::operator()(), cvflann::simpleDistance< L2< ElementType >, ElementType >::operator()(), cvflann::simpleDistance< MinkowskiDistance< ElementType >, ElementType >::operator()(), cvflann::simpleDistance< HellingerDistance< ElementType >, ElementType >::operator()(), cvflann::simpleDistance< ChiSquareDistance< ElementType >, ElementType >::operator()(), cv::v_invsqrt(), cv::v_magnitude(), and cv::hal::DCT2D::~DCT2D().

Here is the caller graph for this function:

sqrt() [2/2]

softdouble cv::sqrt

(

const softdouble &

a

)

#include <opencv2/core/softfloat.hpp>

zero() [1/2]

static softfloat cv::softfloat::zero ( )

inlinestatic

#include <opencv2/core/softfloat.hpp>

Zero constant.

References cv::softfloat::fromRaw().

Here is the call graph for this function:

zero() [2/2]

static softdouble cv::softdouble::zero ( )

inlinestatic

#include <opencv2/core/softfloat.hpp>

Zero constant.

References cv::softdouble::fromRaw().

Here is the call graph for this function:

Variable Documentation

v [1/2]

uint32_t cv::softfloat::v

Referenced by cv::abs(), cv::softfloat::fromRaw(), cv::softfloat::operator-(), cv::softfloat::operator=(), cv::softfloat::setExp(), cv::softfloat::setFrac(), cv::softfloat::setSign(), and cv::softfloat::softfloat().

v [2/2]

uint64_t cv::softdouble::v

Referenced by cv::abs(), cv::softdouble::fromRaw(), cv::softdouble::operator-(), cv::softdouble::operator=(), cv::softdouble::setExp(), cv::softdouble::setFrac(), cv::softdouble::setSign(), and cv::softdouble::softdouble().
