Namespaces
	Detect
	The `Detect` namespace contains several related functions to help determine if the device where the code is running is a BeagleBone Black, BeagleBone Green, or some other type of device.

	USB
	Manipulate the USB Type-A port on a BeagleBone.

Classes
class	LEDControl
	BeagleBone LED software controller. More...

class	Watchdog
	BeagleBone hardware watchdog. More...

Typedefs

typedef std::map< SG::BeagleBone::LED, bool >	PatternStep
	Every blink pattern is a vector of steps, where each step is map of LEDs to turn on and off. More...

typedef std::vector< SG::BeagleBone::PatternStep >	BlinkPattern
	Every blink pattern is a vector of steps, where each step is map of LEDs to turn on and off. More...

Enumerations
enum	LED { LED::invalid = 0, LED::none = 1, LED::all = 2, LED::usr0 = 10, LED::usr1 = 11, LED::usr2 = 12, LED::usr3 = 13, LED::min = usr0, LED::max = usr3 }
	Enumerator for the various LEDs on BeagleBone Black and BeagleBone Green. More...

enum	Trigger { Trigger::invalid = 0, Trigger::none, Trigger::nand_disk, Trigger::usb_gadget, Trigger::usb_host, Trigger::mmc0, Trigger::mmc1, Trigger::timer, Trigger::oneshot, Trigger::heartbeat, Trigger::backlight, Trigger::gpio, Trigger::cpu0, Trigger::default_on }
	Enumerator for the LED trigger type to use. More...

enum	LEDPattern { LEDPattern::invalid = 0, LEDPattern::min = 1, LEDPattern::none = min, LEDPattern::all, LEDPattern::blink, LEDPattern::blinkOffset, LEDPattern::blinkSplit, LEDPattern::cylon, LEDPattern::kitt, LEDPattern::mergeLeft, LEDPattern::mergeRight, LEDPattern::mergeBoth, LEDPattern::inchwormLeft, LEDPattern::inchwormRight, LEDPattern::inchwormBoth, LEDPattern::insideOut, LEDPattern::max }
	Several "built-in" (to this library) blink patterns that can easily be used with SG::BeagleBone::LEDControl. More...

Functions
std::string	to_string (const Trigger trigger)
	Convert the trigger enum to the string expected in the `trigger` file. More...

Trigger	default_trigger (const SG::BeagleBone::LED led)
	Return the default trigger typically used by each LED. More...

int	index_of (const SG::BeagleBone::LED led)
	Determine the index of the specified LED. More...

bool	is_single_LED (const SG::BeagleBone::LED led)
	Determine if the specified LED enum is a single physical LED, or a "pseudo" LED such as LED::all. More...

bool	is_pseudo_LED (const SG::BeagleBone::LED led)
	Determine if the specified LED enum represents a "pseudo" LED, such as LED::all or LED::none. More...

BlinkPattern	LED_invert_pattern (const BlinkPattern &pattern)
	Invert the pattern. More...

BlinkPattern	LED_pattern_none (void)
	Turn all the lights off. More...

BlinkPattern	LED_pattern_all (void)
	Turn all lights on. More...

BlinkPattern	LED_pattern_blink (void)
	Blink all lights in unison. More...

BlinkPattern	LED_pattern_blinkOffset (void)
	Blink even and odd lights. More...

BlinkPattern	LED_pattern_blinkSplit (void)
	Blink left and right lights. More...

BlinkPattern	LED_pattern_cylon (void)
	Multi-light sweep similar to BSG Cylons. More...

BlinkPattern	LED_pattern_kitt (void)
	Single light sweep similar to KITT ("Knight Rider") from the 1980s. More...

BlinkPattern	LED_pattern_mergeLeft (void)
	Lights moving from right to left. More...

BlinkPattern	LED_pattern_mergeRight (void)
	Lights moving from left to right. More...

BlinkPattern	LED_pattern_mergeBoth (void)
	Mix of merge left and merge right. More...

BlinkPattern	LED_pattern_inchwormLeft (void)
	Lights moving from right to left. More...

BlinkPattern	LED_pattern_inchwormRight (void)
	Lights moving from left to right. More...

BlinkPattern	LED_pattern_inchwormBoth (void)
	Mix of merge left and merge right. More...

BlinkPattern	LED_pattern_insideOut (void)
	Blink inside lights, then outside lights. More...

BlinkPattern	LED_get_pattern (const LEDPattern pattern)
	Return the corresponding blink pattern that corresponds to the given enum value. More...

Typedef Documentation

◆ BlinkPattern

typedef std::vector< SG::BeagleBone::PatternStep > SG::BeagleBone::BlinkPattern

Every blink pattern is a vector of steps, where each step is map of LEDs to turn on and off.

◆ PatternStep

typedef std::map< SG::BeagleBone::LED, bool > SG::BeagleBone::PatternStep

Every blink pattern is a vector of steps, where each step is map of LEDs to turn on and off.

Enumeration Type Documentation

◆ LED

enum SG::BeagleBone::LED

strong

Enumerator for the various LEDs on BeagleBone Black and BeagleBone Green.

Enumerator
invalid
none
all
usr0	LED closest to the outside and the `RESET` button.
usr1
usr2
usr3	LED closest to the Ethernet cable and the `POWER` button.
min
max

◆ LEDPattern

enum SG::BeagleBone::LEDPattern

strong

Several "built-in" (to this library) blink patterns that can easily be used with SG::BeagleBone::LEDControl.

Enumerator
invalid
min
none	turn off all lights
all	turn on all lights
blink	all lights blink on-and-off at the exact same time
blinkOffset	all lights blink on-and-off, but split even/odd
blinkSplit	all lights blink on-and-off, but split left/right
cylon	sweep multiple lights
kitt	sweep single light
mergeLeft	lights moving from right-to-left
mergeRight	lights moving from left-to-right
mergeBoth	combination of merge left and merge right
inchwormLeft	lights moving from right-to-left
inchwormRight	lights moving from left-to-right
inchwormBoth	combination of inchworm left and inchworm right
insideOut	inside lights, then outside lights
max

◆ Trigger

enum SG::BeagleBone::Trigger

strong

Enumerator for the LED trigger type to use.

See also: https://www.kernel.org/doc/Documentation/devicetree/bindings/leds/common.txt

Enumerator
invalid
none	Prevents the LED from automatically changing. Use this trigger if you want to manually turn on and turn off the LED.
nand_disk
usb_gadget
usb_host
mmc0	Micro SD card is accessed.
mmc1	Internal eMMC is accessed.
timer
oneshot	https://www.kernel.org/doc/Documentation/leds/ledtrig-oneshot.txt
heartbeat	Periodic double-blink from the Linux kernel to indicate the device is still running.
backlight
gpio
cpu0	Blink rate is determined by the load average.
default_on

Function Documentation

◆ default_trigger()

Trigger SG::BeagleBone::default_trigger ( const SG::BeagleBone::LED led )

inline

Return the default trigger typically used by each LED.

References cpu0, heartbeat, mmc0, mmc1, none, usr0, usr1, usr2, and usr3.

Referenced by SG::BeagleBone::LEDControl::set_default_trigger().

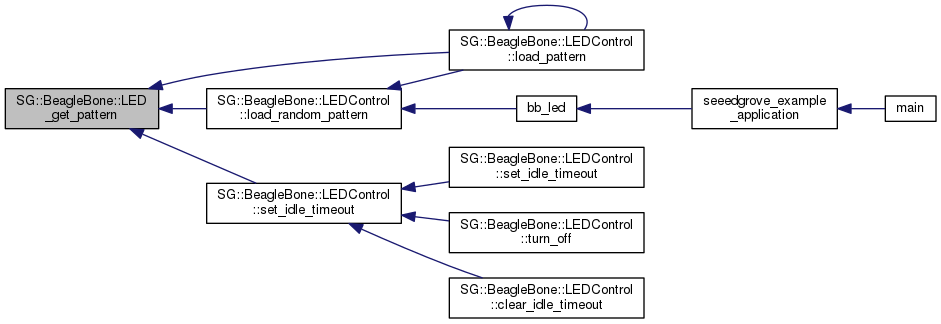

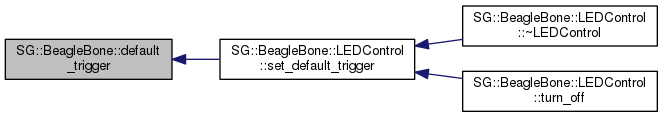

Here is the caller graph for this function:

◆ index_of()

int SG::BeagleBone::index_of ( const SG::BeagleBone::LED led )

inline

Determine the index of the specified LED.

For example, the index of LED::usr0 is 0, while the index of LED::usr3 is 3. All other enums such as LED::all will result in -1.

References usr0, usr1, usr2, and usr3.

Referenced by SG::BeagleBone::LEDControl::get_base_path(), is_pseudo_LED(), and is_single_LED().

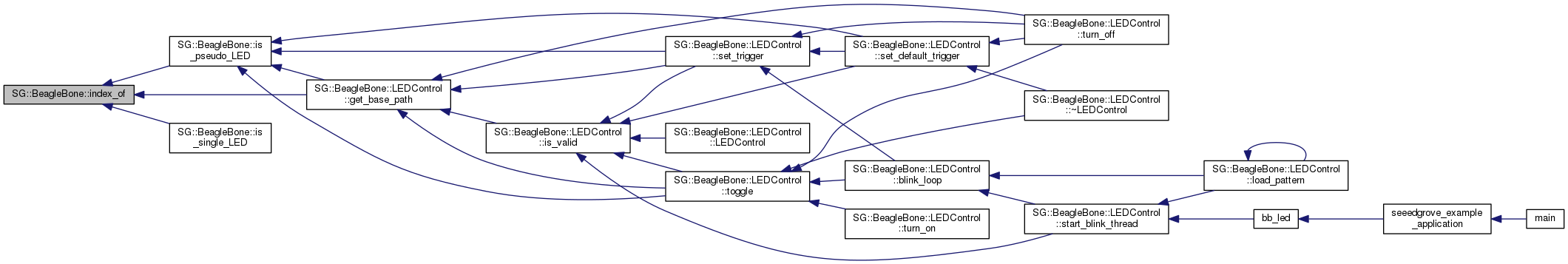

Here is the caller graph for this function:

◆ is_pseudo_LED()

bool SG::BeagleBone::is_pseudo_LED ( const SG::BeagleBone::LED led )

inline

Determine if the specified LED enum represents a "pseudo" LED, such as LED::all or LED::none.

References index_of().

Referenced by SG::BeagleBone::LEDControl::get_base_path(), SG::BeagleBone::LEDControl::set_default_trigger(), SG::BeagleBone::LEDControl::set_trigger(), and SG::BeagleBone::LEDControl::toggle().

Here is the call graph for this function:

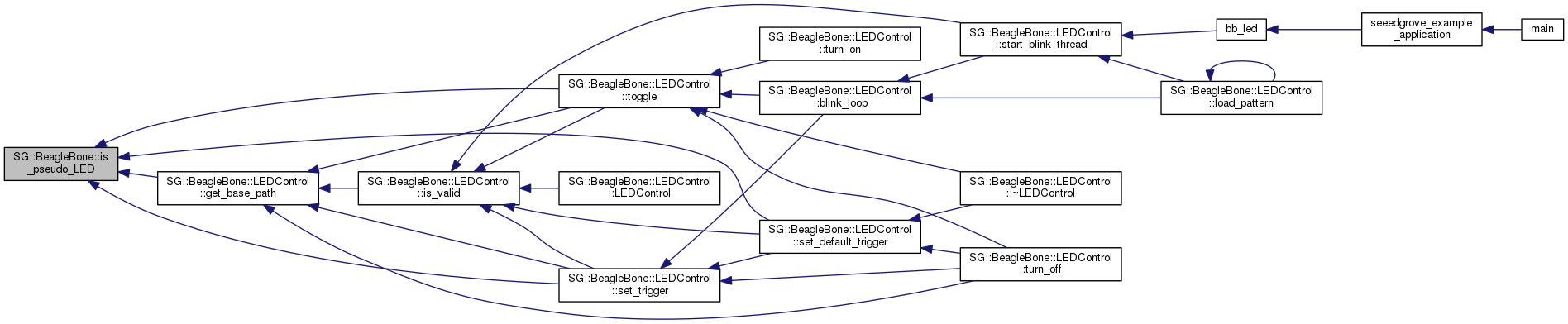

Here is the caller graph for this function:

◆ is_single_LED()

bool SG::BeagleBone::is_single_LED ( const SG::BeagleBone::LED led )

inline

Determine if the specified LED enum is a single physical LED, or a "pseudo" LED such as LED::all.

References index_of().

Here is the call graph for this function:

◆ LED_get_pattern()

BlinkPattern SG::BeagleBone::LED_get_pattern ( const LEDPattern pattern )

inline

Return the corresponding blink pattern that corresponds to the given enum value.

References all, blink, blinkOffset, blinkSplit, cylon, inchwormBoth, inchwormLeft, inchwormRight, insideOut, invalid, kitt, LED_pattern_all(), LED_pattern_blink(), LED_pattern_blinkOffset(), LED_pattern_blinkSplit(), LED_pattern_cylon(), LED_pattern_inchwormBoth(), LED_pattern_inchwormLeft(), LED_pattern_inchwormRight(), LED_pattern_insideOut(), LED_pattern_kitt(), LED_pattern_mergeBoth(), LED_pattern_mergeLeft(), LED_pattern_mergeRight(), LED_pattern_none(), max, mergeBoth, mergeLeft, mergeRight, and none.

Referenced by SG::BeagleBone::LEDControl::load_pattern(), SG::BeagleBone::LEDControl::load_random_pattern(), and SG::BeagleBone::LEDControl::set_idle_timeout().

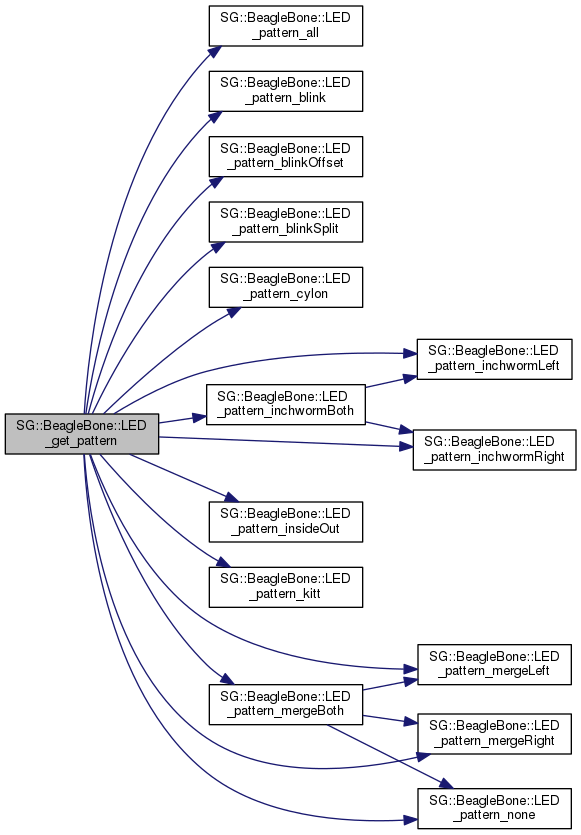

Here is the call graph for this function:

Here is the caller graph for this function:

◆ LED_invert_pattern()

SG::BeagleBone::BlinkPattern SG::BeagleBone::LED_invert_pattern ( const BlinkPattern & pattern )

Invert the pattern.

Reverse all values of "on" and "off" in a pattern. For example, given the pattern LED_pattern_none(), calling this method would result in the same pattern as LED_pattern_all().

Referenced by SG::BeagleBone::LEDControl::invert_pattern().

Here is the caller graph for this function:

◆ LED_pattern_all()

SG::BeagleBone::BlinkPattern SG::BeagleBone::LED_pattern_all ( void )

Turn all lights on.

Referenced by LED_get_pattern().

Here is the caller graph for this function:

◆ LED_pattern_blink()

SG::BeagleBone::BlinkPattern SG::BeagleBone::LED_pattern_blink ( void )

Blink all lights in unison.

Referenced by LED_get_pattern().

Here is the caller graph for this function:

◆ LED_pattern_blinkOffset()

SG::BeagleBone::BlinkPattern SG::BeagleBone::LED_pattern_blinkOffset ( void )

Blink even and odd lights.

Referenced by LED_get_pattern().

Here is the caller graph for this function:

◆ LED_pattern_blinkSplit()

SG::BeagleBone::BlinkPattern SG::BeagleBone::LED_pattern_blinkSplit ( void )

Blink left and right lights.

Referenced by LED_get_pattern().

Here is the caller graph for this function:

◆ LED_pattern_cylon()

SG::BeagleBone::BlinkPattern SG::BeagleBone::LED_pattern_cylon ( void )

Multi-light sweep similar to BSG Cylons.

Referenced by LED_get_pattern().

Here is the caller graph for this function:

◆ LED_pattern_inchwormBoth()

SG::BeagleBone::BlinkPattern SG::BeagleBone::LED_pattern_inchwormBoth ( void )

Mix of merge left and merge right.

References LED_pattern_inchwormLeft(), and LED_pattern_inchwormRight().

Referenced by LED_get_pattern().

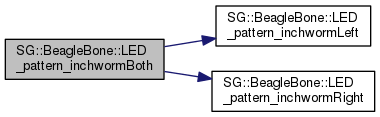

Here is the call graph for this function:

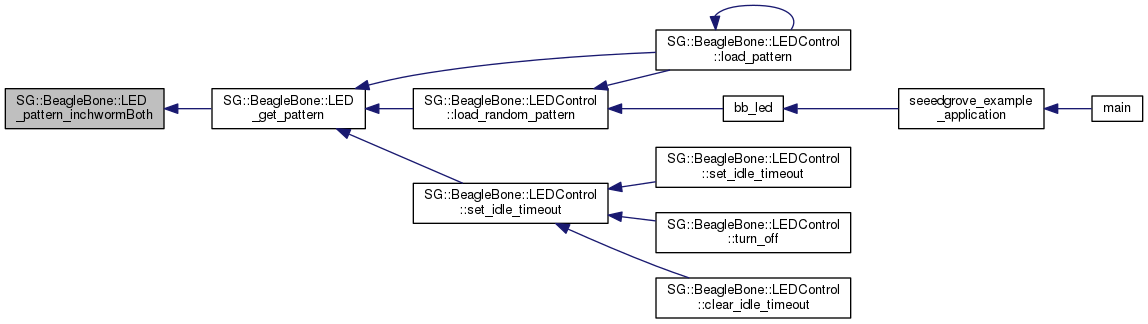

Here is the caller graph for this function:

◆ LED_pattern_inchwormLeft()

SG::BeagleBone::BlinkPattern SG::BeagleBone::LED_pattern_inchwormLeft ( void )

Lights moving from right to left.

Referenced by LED_get_pattern(), and LED_pattern_inchwormBoth().

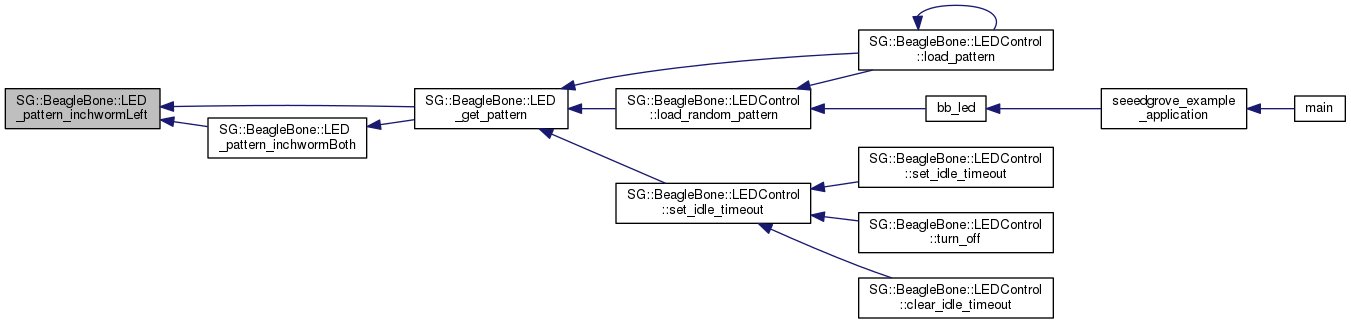

Here is the caller graph for this function:

◆ LED_pattern_inchwormRight()

SG::BeagleBone::BlinkPattern SG::BeagleBone::LED_pattern_inchwormRight ( void )

Lights moving from left to right.

Referenced by LED_get_pattern(), and LED_pattern_inchwormBoth().

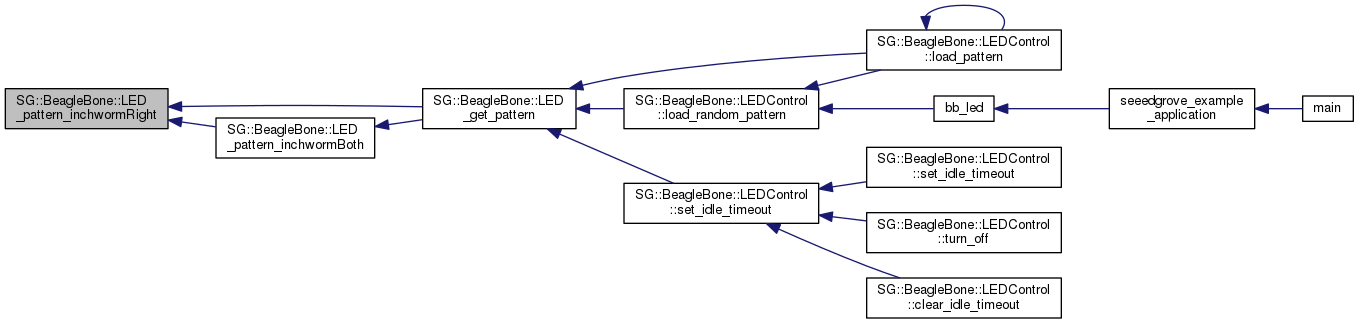

Here is the caller graph for this function:

◆ LED_pattern_insideOut()

SG::BeagleBone::BlinkPattern SG::BeagleBone::LED_pattern_insideOut ( void )

Blink inside lights, then outside lights.

Referenced by LED_get_pattern().

Here is the caller graph for this function:

◆ LED_pattern_kitt()

SG::BeagleBone::BlinkPattern SG::BeagleBone::LED_pattern_kitt ( void )

Single light sweep similar to KITT ("Knight Rider") from the 1980s.

Referenced by LED_get_pattern().

Here is the caller graph for this function:

◆ LED_pattern_mergeBoth()

SG::BeagleBone::BlinkPattern SG::BeagleBone::LED_pattern_mergeBoth ( void )

Mix of merge left and merge right.

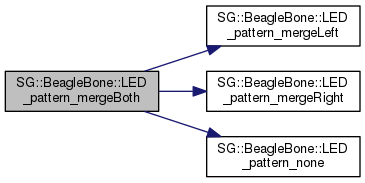

References LED_pattern_mergeLeft(), LED_pattern_mergeRight(), LED_pattern_none(), and none.

Referenced by LED_get_pattern().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ LED_pattern_mergeLeft()

SG::BeagleBone::BlinkPattern SG::BeagleBone::LED_pattern_mergeLeft ( void )

Lights moving from right to left.

Referenced by LED_get_pattern(), and LED_pattern_mergeBoth().

Here is the caller graph for this function:

◆ LED_pattern_mergeRight()

SG::BeagleBone::BlinkPattern SG::BeagleBone::LED_pattern_mergeRight ( void )

Lights moving from left to right.

Referenced by LED_get_pattern(), and LED_pattern_mergeBoth().

Here is the caller graph for this function:

◆ LED_pattern_none()

SG::BeagleBone::BlinkPattern SG::BeagleBone::LED_pattern_none ( void )

Turn all the lights off.

Referenced by LED_get_pattern(), and LED_pattern_mergeBoth().

Here is the caller graph for this function:

◆ to_string()

std::string SG::BeagleBone::to_string ( const Trigger trigger )

inline

Convert the trigger enum to the string expected in the trigger file.

References backlight, cpu0, default_on, gpio, heartbeat, mmc0, mmc1, nand_disk, none, oneshot, timer, usb_gadget, and usb_host.

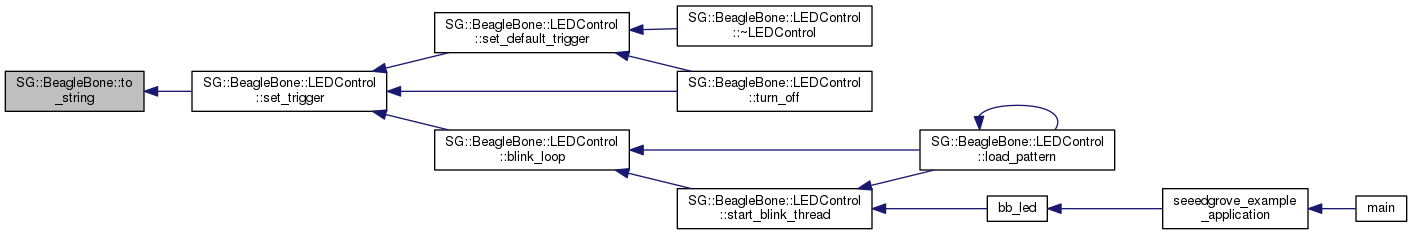

Referenced by SG::BeagleBone::LEDControl::set_trigger().

Here is the caller graph for this function:

Namespaces

Classes

Typedefs

Enumerations

Functions

Typedef Documentation

◆ BlinkPattern

◆ PatternStep

Enumeration Type Documentation

◆ LED

◆ LEDPattern

◆ Trigger

Function Documentation

◆ default_trigger()

◆ index_of()

◆ is_pseudo_LED()

◆ is_single_LED()

◆ LED_get_pattern()

◆ LED_invert_pattern()

◆ LED_pattern_all()

◆ LED_pattern_blink()

◆ LED_pattern_blinkOffset()

◆ LED_pattern_blinkSplit()

◆ LED_pattern_cylon()

◆ LED_pattern_inchwormBoth()

◆ LED_pattern_inchwormLeft()

◆ LED_pattern_inchwormRight()

◆ LED_pattern_insideOut()

◆ LED_pattern_kitt()

◆ LED_pattern_mergeBoth()

◆ LED_pattern_mergeLeft()

◆ LED_pattern_mergeRight()

◆ LED_pattern_none()

◆ to_string()
