tesseract::ViterbiStateEntry Struct Reference

#include <lm_state.h>

Inheritance diagram for tesseract::ViterbiStateEntry:

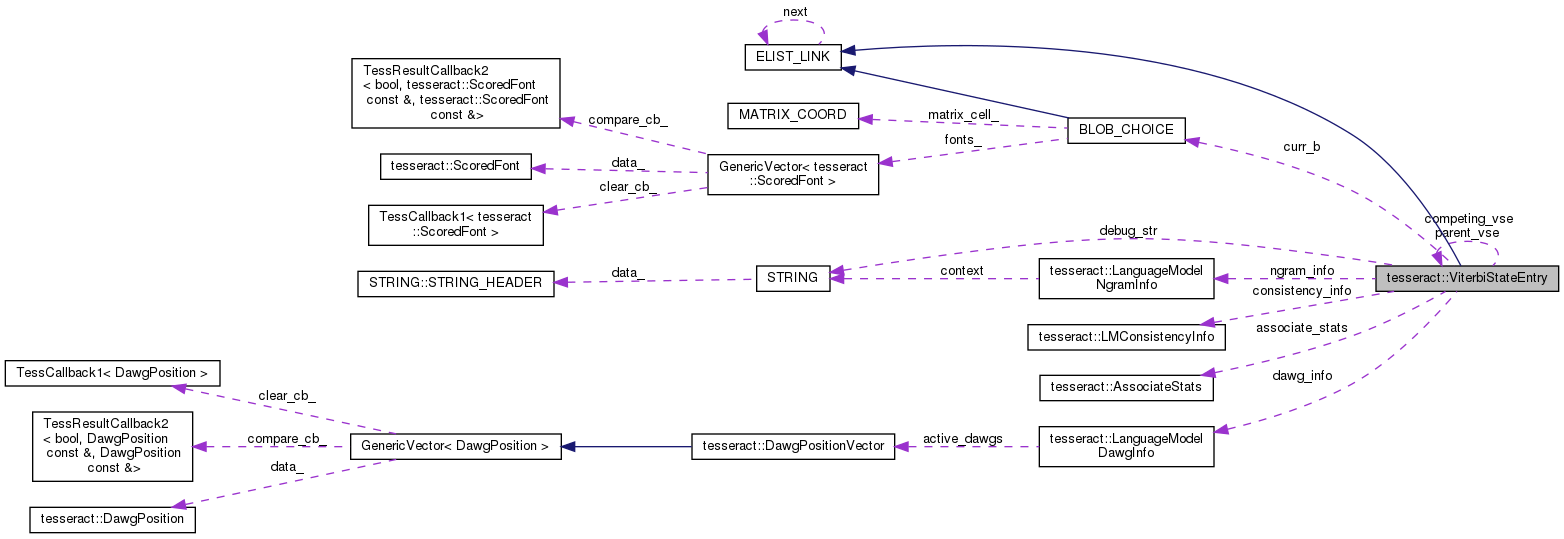

Collaboration diagram for tesseract::ViterbiStateEntry:

Public Member Functions
	ViterbiStateEntry (ViterbiStateEntry *pe, BLOB_CHOICE *b, float c, float ol, const LMConsistencyInfo &ci, const AssociateStats &as, LanguageModelFlagsType tcf, LanguageModelDawgInfo *d, LanguageModelNgramInfo *n, const char *debug_uch)
	~ViterbiStateEntry ()
bool	Consistent () const
bool	HasAlnumChoice (const UNICHARSET &unicharset)
void	Print (const char *msg) const
Public Member Functions inherited from ELIST_LINK
	ELIST_LINK ()
	ELIST_LINK (const ELIST_LINK &)
void	operator= (const ELIST_LINK &)

Static Public Member Functions
static int	Compare (const void *e1, const void *e2)

Public Attributes
float	cost
BLOB_CHOICE *	curr_b
	Pointers to BLOB_CHOICE and parent ViterbiStateEntry (not owned by this). More...
ViterbiStateEntry *	parent_vse
ViterbiStateEntry *	competing_vse
float	ratings_sum
float	min_certainty
int	adapted
int	length
float	outline_length
LMConsistencyInfo	consistency_info
AssociateStats	associate_stats
LanguageModelFlagsType	top_choice_flags
LanguageModelDawgInfo *	dawg_info
LanguageModelNgramInfo *	ngram_info
bool	updated
STRING *	debug_str

Detailed Description

Struct for storing the information about a path in the segmentation graph explored by Viterbi search.

Constructor & Destructor Documentation

ViterbiStateEntry()

tesseract::ViterbiStateEntry::ViterbiStateEntry ( ViterbiStateEntry *  pe, BLOB_CHOICE *  b, float  c, float  ol, const LMConsistencyInfo &  ci, const AssociateStats &  as, LanguageModelFlagsType  tcf, LanguageModelDawgInfo *  d, LanguageModelNgramInfo *  n, const char *  debug_uch  )

inline

~ViterbiStateEntry()

tesseract::ViterbiStateEntry::~ViterbiStateEntry ( )

inline

Member Function Documentation

Compare()

static int tesseract::ViterbiStateEntry::Compare ( const void *  e1, const void *  e2  )

inlinestatic

Comparator function for sorting ViterbiStateEntry_LISTs in non-increasing order of costs.

Consistent()

bool tesseract::ViterbiStateEntry::Consistent ( ) const

inline

HasAlnumChoice()

bool tesseract::ViterbiStateEntry::HasAlnumChoice ( const UNICHARSET &  unicharset )

inline

Returns true if this VSE has an alphanumeric character as its classifier result.

Print()

void tesseract::ViterbiStateEntry::Print

(

const char *

msg

)

const

Member Data Documentation

adapted

int tesseract::ViterbiStateEntry::adapted

associate_stats

AssociateStats tesseract::ViterbiStateEntry::associate_stats

competing_vse

ViterbiStateEntry* tesseract::ViterbiStateEntry::competing_vse

Pointer to a case-competing ViterbiStateEntry in the same list that represents a path ending in the same letter of the opposite case.

consistency_info

LMConsistencyInfo tesseract::ViterbiStateEntry::consistency_info

cost

float tesseract::ViterbiStateEntry::cost

The cost is an adjusted ratings sum, that is adjusted by all the language model components that use Viterbi search.

curr_b

BLOB_CHOICE* tesseract::ViterbiStateEntry::curr_b

Pointers to BLOB_CHOICE and parent ViterbiStateEntry (not owned by this).

dawg_info

LanguageModelDawgInfo* tesseract::ViterbiStateEntry::dawg_info

Extra information maintained by Dawg language model component (owned by ViterbiStateEntry).

debug_str

STRING* tesseract::ViterbiStateEntry::debug_str

UTF8 string representing the path corresponding to this vse. Populated only in when language_model_debug_level > 0.

length

int tesseract::ViterbiStateEntry::length

min_certainty

float tesseract::ViterbiStateEntry::min_certainty

ngram_info

LanguageModelNgramInfo* tesseract::ViterbiStateEntry::ngram_info

Extra information maintained by Ngram language model component (owned by ViterbiStateEntry).

outline_length

float tesseract::ViterbiStateEntry::outline_length

parent_vse

ViterbiStateEntry* tesseract::ViterbiStateEntry::parent_vse

ratings_sum

float tesseract::ViterbiStateEntry::ratings_sum

Various information about the characters on the path represented by this ViterbiStateEntry.

top_choice_flags

LanguageModelFlagsType tesseract::ViterbiStateEntry::top_choice_flags

Flags for marking the entry as a top choice path with the smallest rating or lower/upper case letters).

updated

bool tesseract::ViterbiStateEntry::updated

---

The documentation for this struct was generated from the following files:

• /home/stephane/src/tesseract/src/wordrec/lm_state.h
• /home/stephane/src/tesseract/src/wordrec/lm_state.cpp
