wrap a QImage and convert into a format suitable for scanning. More...

Inheritance diagram for zbar::QZBarImage:

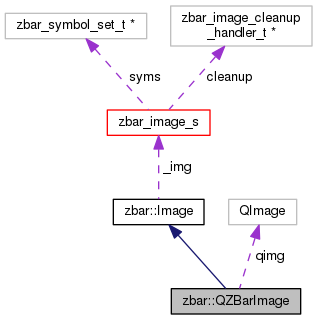

Collaboration diagram for zbar::QZBarImage:

Public Member Functions
	QZBarImage (const QImage &qimg)
	construct a zbar library image based on an existing QImage. More...

Image	convert (unsigned long format) const
	image format conversion. More...

Image	convert (unsigned long format, unsigned width, unsigned height) const
	image format conversion with crop/pad. More...

const void *	get_data () const
	return the image sample data. More...

unsigned long	get_data_length () const
	return the size of the image sample data. More...

unsigned long	get_format () const
	retrieve the image format. More...

unsigned	get_height () const
	retrieve the height of the image. More...

unsigned	get_sequence () const
	retrieve a "sequence" (page/frame) number associated with this image. More...

const SymbolSet	get_symbols () const

unsigned	get_width () const
	retrieve the width of the image. More...

	operator const zbar_image_t * () const
	cast to C image object More...

	operator zbar_image_t * ()
	cast to C image object More...

void	set_data (const void *data, unsigned long length)
	specify image sample data. More...

void	set_format (unsigned long format)
	specify the fourcc image format code for image sample data. More...

void	set_format (const std::string &format)
	specify the fourcc image format code for image sample data. More...

void	set_sequence (unsigned sequence_num)
	associate a "sequence" (page/frame) number with this image. More...

void	set_size (unsigned width, unsigned height)
	specify the pixel size of the image. More...

void	set_symbols (const SymbolSet &syms)

SymbolIterator	symbol_begin () const
	create a new SymbolIterator over decoded results. More...

SymbolIterator	symbol_end () const
	return a SymbolIterator suitable for ending iteration. More...

Static Protected Member Functions
static void	_cleanup (zbar_image_t *img)
	default data cleanup (noop) More...

Private Attributes
QImage	qimg

Detailed Description

wrap a QImage and convert into a format suitable for scanning.

Constructor & Destructor Documentation

zbar::QZBarImage::QZBarImage ( const QImage & qimg )

inline

construct a zbar library image based on an existing QImage.

References scan_image::height, zbar::Image::set_data(), zbar::Image::set_format(), zbar::Image::set_size(), and scan_image::width.

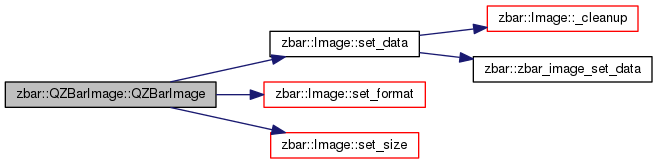

Here is the call graph for this function:

Member Function Documentation

static void zbar::Image::_cleanup ( zbar_image_t * img )

inlinestaticprotectedinherited

default data cleanup (noop)

References zbar::zbar_image_get_userdata().

Referenced by zbar::Image::set_data().

Here is the call graph for this function:

Here is the caller graph for this function:

Image zbar::Image::convert ( unsigned long format ) const

inlineinherited

image format conversion.

see zbar_image_convert()

References zbar::Image::_img, zbar::Image::Image(), and zbar::zbar_image_convert().

Referenced by zbar::QZBarThread::processImage().

Here is the call graph for this function:

Here is the caller graph for this function:

Image zbar::Image::convert	(	unsigned long	format,
		unsigned	width,
		unsigned	height
	)		const

inlineinherited

image format conversion with crop/pad.

see zbar_image_convert_resize()

Since: 0.4

References zbar::Image::_img, zbar::Image::Image(), and zbar::zbar_image_convert_resize().

Here is the call graph for this function:

const void* zbar::Image::get_data ( ) const

inlineinherited

return the image sample data.

see zbar_image_get_data()

References zbar::Image::_img, and zbar::zbar_image_get_data().

Here is the call graph for this function:

unsigned long zbar::Image::get_data_length ( ) const

inlineinherited

return the size of the image sample data.

see zbar_image_get_data_length()

Since: 0.6

References zbar::Image::_img, and zbar::zbar_image_get_data_length().

Here is the call graph for this function:

unsigned long zbar::Image::get_format ( ) const

inlineinherited

retrieve the image format.

see zbar_image_get_format()

References zbar::Image::_img, and zbar::zbar_image_get_format().

Here is the call graph for this function:

unsigned zbar::Image::get_height ( ) const

inlineinherited

retrieve the height of the image.

see zbar_image_get_height()

References zbar::Image::_img, and zbar::zbar_image_get_height().

Here is the call graph for this function:

unsigned zbar::Image::get_sequence ( ) const

inlineinherited

retrieve a "sequence" (page/frame) number associated with this image.

see zbar_image_get_sequence()

Since: 0.6

References zbar::Image::_img, and zbar::zbar_image_get_sequence().

Here is the call graph for this function:

const SymbolSet zbar::Image::get_symbols ( ) const

inlineinherited

References zbar::Image::_img, and zbar::zbar_image_get_symbols().

Referenced by zbar::QZBarThread::processImage(), and zbar::Image::symbol_begin().

Here is the call graph for this function:

Here is the caller graph for this function:

unsigned zbar::Image::get_width ( ) const

inlineinherited

retrieve the width of the image.

see zbar_image_get_width()

References zbar::Image::_img, and zbar::zbar_image_get_width().

Here is the call graph for this function:

zbar::Image::operator const zbar_image_t * ( ) const

inlineinherited

cast to C image object

References zbar::Image::_img.

zbar::Image::operator zbar_image_t * ( )

inlineinherited

cast to C image object

References zbar::Image::_img.

void zbar::Image::set_data	(	const void *	data,
		unsigned long	length
	)

inlineinherited

specify image sample data.

see zbar_image_set_data()

References zbar::Image::_cleanup(), zbar::Image::_img, and zbar::zbar_image_set_data().

Referenced by zbar::Image::Image(), main(), and QZBarImage().

Here is the call graph for this function:

Here is the caller graph for this function:

void zbar::Image::set_format ( unsigned long format )

inlineinherited

specify the fourcc image format code for image sample data.

see zbar_image_set_format()

References zbar::Image::_img, and zbar::zbar_image_set_format().

Referenced by zbar::Image::Image(), and QZBarImage().

Here is the call graph for this function:

Here is the caller graph for this function:

void zbar::Image::set_format ( const std::string & format )

inlineinherited

specify the fourcc image format code for image sample data.

see zbar_image_set_format()

References zbar::Image::_img, fourcc, and zbar::zbar_image_set_format().

Here is the call graph for this function:

void zbar::Image::set_sequence ( unsigned sequence_num )

inlineinherited

associate a "sequence" (page/frame) number with this image.

see zbar_image_set_sequence()

Since: 0.6

References zbar::Image::_img, and zbar::zbar_image_set_sequence().

Here is the call graph for this function:

void zbar::Image::set_size	(	unsigned	width,
		unsigned	height
	)

inlineinherited

specify the pixel size of the image.

see zbar_image_set_size()

References zbar::Image::_img, and zbar::zbar_image_set_size().

Referenced by zbar::Image::Image(), and QZBarImage().

Here is the call graph for this function:

Here is the caller graph for this function:

void zbar::Image::set_symbols ( const SymbolSet & syms )

inlineinherited

References zbar::Image::_img, and zbar::zbar_image_set_symbols().

Referenced by zbar::QZBarThread::processImage().

Here is the call graph for this function:

Here is the caller graph for this function:

SymbolIterator zbar::Image::symbol_begin ( ) const

inlineinherited

create a new SymbolIterator over decoded results.

References zbar::Image::get_symbols().

Referenced by zbar::QZBarThread::image_callback(), and main().

Here is the call graph for this function:

Here is the caller graph for this function:

SymbolIterator zbar::Image::symbol_end ( ) const

inlineinherited

return a SymbolIterator suitable for ending iteration.

Referenced by zbar::QZBarThread::image_callback(), and main().

Here is the caller graph for this function:

Member Data Documentation

QImage zbar::QZBarImage::qimg

private

The documentation for this class was generated from the following file:

QZBarImage.h
