zbar::Symbol Class Reference

decoded barcode symbol result object. More...

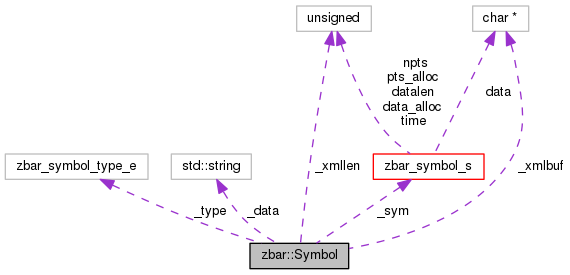

Collaboration diagram for zbar::Symbol:

Classes
class	Point
	image pixel location (x, y) coordinate tuple. More...
class	PointIterator
	iteration over Point objects in a symbol location polygon. More...

Public Member Functions
	Symbol (const zbar_symbol_t *sym=NULL)
	constructor. More...
	Symbol (const Symbol &sym)
	copy constructor. More...
	~Symbol ()
	destructor. More...
const std::string	get_addon_name () const
	retrieve the string name for any addon. More...
SymbolSet	get_components () const
int	get_count () const
	retrieve inter-frame coherency count. More...
const std::string	get_data () const
	retrieve data decoded from symbol. More...
unsigned	get_data_length () const
	retrieve length of binary data More...
int	get_location_size () const
	see zbar_symbol_get_loc_size(). More...
int	get_location_x (unsigned index) const
	see zbar_symbol_get_loc_x(). More...
int	get_location_y (unsigned index) const
	see zbar_symbol_get_loc_y(). More...
zbar_symbol_type_t	get_type () const
	retrieve type of decoded symbol. More...
const std::string	get_type_name () const
	retrieve the string name of the symbol type. More...
	operator const zbar_symbol_t * () const
	cast to C symbol. More...
bool	operator!= (const Symbol &sym) const
	test if two Symbol objects refer to the same C symbol. More...
bool	operator== (const Symbol &sym) const
	test if two Symbol objects refer to the same C symbol. More...
PointIterator	point_begin () const
	create a new PointIterator at the start of the location polygon. More...
const PointIterator	point_end () const
	return a PointIterator suitable for ending iteration. More...
void	ref (int delta=1) const
const std::string	xml () const
	see zbar_symbol_xml(). More...

Protected Member Functions
void	init (const zbar_symbol_t *sym=NULL)
	(re)initialize Symbol from C symbol object. More...

Private Attributes
std::string	_data
const zbar_symbol_t *	_sym
zbar_symbol_type_t	_type
char *	_xmlbuf
unsigned	_xmllen

Friends
class	SymbolIterator

Related Functions
(Note that these are not member functions.)
static std::ostream &	operator<< (std::ostream &out, const Symbol &sym)

Detailed Description

decoded barcode symbol result object.

stores type, data, and image location of decoded symbol

Constructor & Destructor Documentation

zbar::Symbol::Symbol ( const zbar_symbol_t *  sym = NULL )

inline

constructor.

References zbar::SymbolSet::ref().

Here is the call graph for this function:

zbar::Symbol::Symbol ( const Symbol &  sym )

inline

copy constructor.

References zbar::SymbolSet::ref().

Here is the call graph for this function:

zbar::Symbol::~Symbol ( )

inline

destructor.

References zbar::SymbolSet::ref().

Here is the call graph for this function:

Member Function Documentation

const std::string zbar::Symbol::get_addon_name ( ) const

inline

retrieve the string name for any addon.

References zbar::zbar_get_addon_name().

Referenced by operator<<().

Here is the call graph for this function:

Here is the caller graph for this function:

SymbolSet zbar::Symbol::get_components ( ) const

inline

References zbar::SymbolSet::SymbolSet(), and zbar::zbar_symbol_get_components().

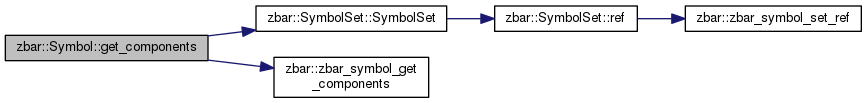

Here is the call graph for this function:

int zbar::Symbol::get_count ( ) const

inline

retrieve inter-frame coherency count.

see zbar_symbol_get_count()

Since

1.5

References zbar::zbar_symbol_get_count().

Here is the call graph for this function:

const std::string zbar::Symbol::get_data ( ) const

inline

retrieve data decoded from symbol.

Referenced by operator<<().

Here is the caller graph for this function:

unsigned zbar::Symbol::get_data_length ( ) const

inline

retrieve length of binary data

References zbar::zbar_symbol_get_data_length().

Here is the call graph for this function:

int zbar::Symbol::get_location_size ( ) const

inline

see zbar_symbol_get_loc_size().

References zbar::zbar_symbol_get_loc_size().

Here is the call graph for this function:

int zbar::Symbol::get_location_x ( unsigned  index ) const

inline

see zbar_symbol_get_loc_x().

References zbar::zbar_symbol_get_loc_x().

Here is the call graph for this function:

int zbar::Symbol::get_location_y ( unsigned  index ) const

inline

see zbar_symbol_get_loc_y().

References zbar::zbar_symbol_get_loc_y().

Here is the call graph for this function:

zbar_symbol_type_t zbar::Symbol::get_type ( ) const

inline

retrieve type of decoded symbol.

const std::string zbar::Symbol::get_type_name ( ) const

inline

retrieve the string name of the symbol type.

References zbar::zbar_get_symbol_name().

Referenced by operator<<().

Here is the call graph for this function:

Here is the caller graph for this function:

void zbar::Symbol::init ( const zbar_symbol_t *  sym = NULL )

inlineprotected

(re)initialize Symbol from C symbol object.

References zbar::ZBAR_NONE, zbar::zbar_symbol_get_data(), zbar::zbar_symbol_get_data_length(), and zbar::zbar_symbol_get_type().

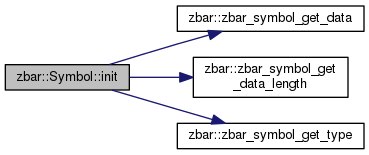

Here is the call graph for this function:

zbar::Symbol::operator const zbar_symbol_t * ( ) const

inline

cast to C symbol.

bool zbar::Symbol::operator!= ( const Symbol &  sym ) const

inline

test if two Symbol objects refer to the same C symbol.

bool zbar::Symbol::operator== ( const Symbol &  sym ) const

inline

test if two Symbol objects refer to the same C symbol.

References _sym.

PointIterator zbar::Symbol::point_begin ( ) const

inline

create a new PointIterator at the start of the location polygon.

const PointIterator zbar::Symbol::point_end ( ) const

inline

return a PointIterator suitable for ending iteration.

void zbar::Symbol::ref ( int  delta = 1 ) const

inline

References zbar::zbar_symbol_ref().

Here is the call graph for this function:

const std::string zbar::Symbol::xml ( ) const

inline

see zbar_symbol_xml().

References zbar::zbar_symbol_xml().

Here is the call graph for this function:

Friends And Related Function Documentation

static std::ostream & operator<< ( std::ostream &  out, const Symbol &  sym  )

related

stream the string representation of a Symbol.

References get_addon_name(), get_data(), and get_type_name().

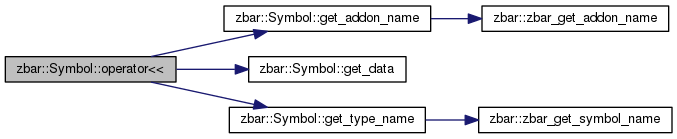

Here is the call graph for this function:

friend class SymbolIterator

friend

Member Data Documentation

std::string zbar::Symbol::_data

private

const zbar_symbol_t* zbar::Symbol::_sym

private

Referenced by operator==().

zbar_symbol_type_t zbar::Symbol::_type

private

char* zbar::Symbol::_xmlbuf

private

unsigned zbar::Symbol::_xmllen

private

---

The documentation for this class was generated from the following file:

• Symbol.h
