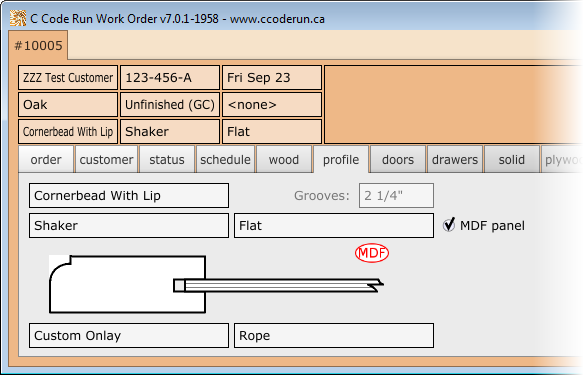

Manage profile and moulding.


Mostly used with doors and drawers to indicate the outside profile, frame profile, and panel profile.

At the bottom, the onlay and frame moulding can also be specified.

The panel moulding option will only be enabled when the panel type is configured as flat or deep. (See Admin Tab: Images.)

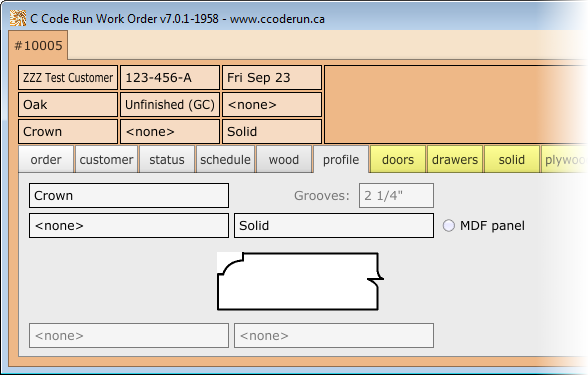

If an order is not for doors nor drawers, then a solid panel profile can be selected. For example, this can be useful for butcher blocks. The outside profile then applies to the solid panel profile instead of the frame. For example:
