IJS Class Reference

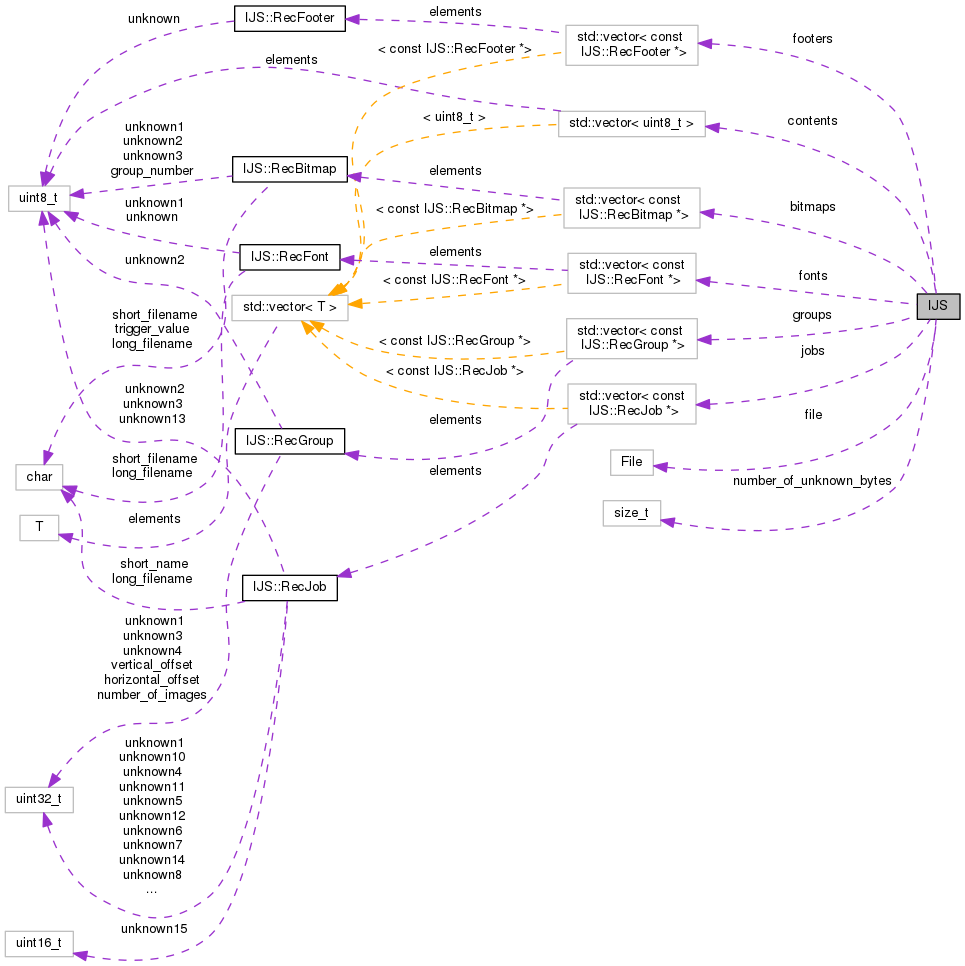

Collaboration diagram for IJS:

Classes
struct	RecBitmap
	The bitmap records are exactly 143 bytes (0x8f) in length. More...
struct	RecFont
	Font record is a total of 288 (0x120) bytes. More...
struct	RecFooter
	10-byte footer at the bottom of the file. More...
struct	RecGroup
	A 25-byte (0x19) record that appears before each bitmap group. More...
struct	RecJob
	A 127-byte (0x7f) record that appears at the start of every print job. More...

Public Member Functions
	IJS (void)
	Empty constructor. More...
	~IJS (void)
	Destructor. More...
IJS &	load (const File &filename)
	Load the given .ijs file. More...
VStr	warnings (void) const
	Get any warning messages that should be shown to the user. More...
std::string	summary (void) const
	Summarize the .ijs as a text message for the user. More...

Public Attributes
VBytes	contents
	The entire contents of the file is loaded into this vector. More...
std::vector< const RecJob * >	jobs
	Even though this is a vector, we only support a single RecJob pointer per ijs file. More...
std::vector< const RecGroup * >	groups
	The groups stored in this vector may be stored in a different order than what they appear in the ijs file. More...
std::vector< const RecBitmap * >	bitmaps
std::vector< const RecFont * >	fonts
std::vector< const RecFooter * >	footers
File	file
	.ijs file More...
size_t	number_of_unknown_bytes
	Used to keep track of whether or not there were unrecognized bytes when the .IJS file was loaded. More...

Constructor & Destructor Documentation

IJS()

IJS::IJS

(

void

)

Empty constructor.

See also

load()

~IJS()

IJS::~IJS

(

void

)

Destructor.

Member Function Documentation

load()

IJS & IJS::load

(

const File &

filename

)

Load the given .ijs file.

Exceptions

Lox::Exception	if the file is impossibly small (no content?)
Lox::Exception	if the file cannot be read (permission problem?)
Lox::Exception	if the file header is not a valid .ijs header

References contents, file, IJS::RecBitmap::group_number, groups, jobs, IJS::RecJob::long_filename, IJS::RecBitmap::long_filename, IJS::RecFont::long_filename, IJS::RecGroup::number_of_images, number_of_unknown_bytes, IJS::RecBitmap::short_filename, IJS::RecFont::short_filename, IJS::RecJob::short_name, IJS::RecBitmap::trigger_value, and IJS::RecJob::unknown1.

Referenced by PrintJob::load_ijs().

Here is the caller graph for this function:

warnings()

VStr IJS::warnings

(

void

)

const

Get any warning messages that should be shown to the user.

References contents, file, groups, jobs, and number_of_unknown_bytes.

Referenced by PrintJob::load_ijs(), and summary().

Here is the caller graph for this function:

summary()

std::string IJS::summary

(

void

)

const

Summarize the .ijs as a text message for the user.

References file, groups, jobs, and warnings().

Referenced by PrintJob::load_ijs().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

contents

VBytes IJS::contents

The entire contents of the file is loaded into this vector.

Referenced by load(), SessionComponentTransfer::run(), and warnings().

jobs

std::vector<const RecJob*> IJS::jobs

Even though this is a vector, we only support a single RecJob pointer per ijs file.

Referenced by load(), summary(), and warnings().

groups

std::vector<const RecGroup*> IJS::groups

The groups stored in this vector may be stored in a different order than what they appear in the ijs file.

When they're parsed, the groups are re-ordered so this vector contains the groups id #1, 2, 3, 4, ... while in the ijs file they sometimes appear out-of-order, such as #2, 3, 4, 1.

Referenced by load(), SessionComponent::paintCell(), summary(), and warnings().

file

File IJS::file

.ijs file

Referenced by PrintJob::copy_to_new_directory(), load(), summary(), and warnings().

number_of_unknown_bytes

size_t IJS::number_of_unknown_bytes

Used to keep track of whether or not there were unrecognized bytes when the .IJS file was loaded.

Referenced by load(), and warnings().
