juce::ImagePixelData Class Reference

This is a base class for holding image data in implementation-specific ways. More...

#include <juce_Image.h>

Inheritance diagram for juce::ImagePixelData:

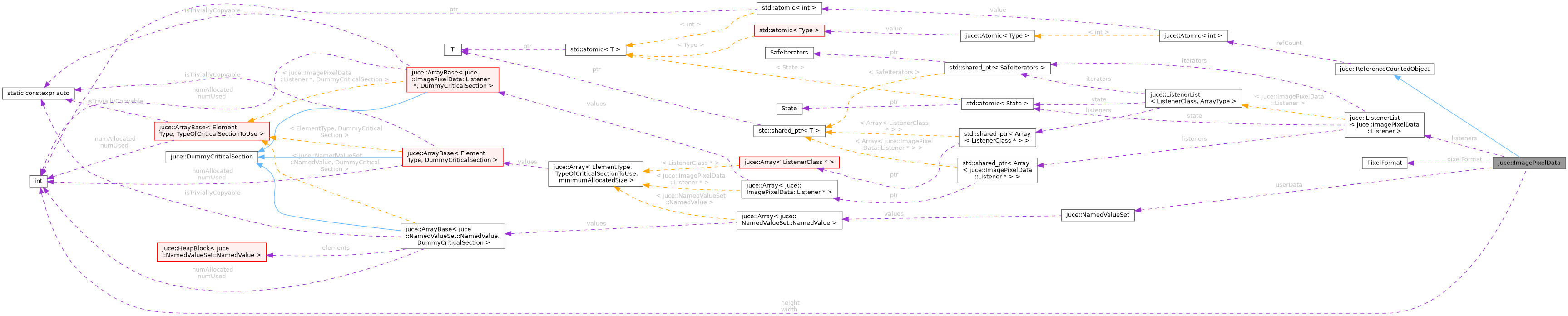

Collaboration diagram for juce::ImagePixelData:

Classes
struct	Listener
	Used to receive callbacks for image data changes. More...

Public Types
using	Ptr = ReferenceCountedObjectPtr< ImagePixelData >

Public Member Functions
	ImagePixelData (Image::PixelFormat, int width, int height)
	~ImagePixelData () override
virtual Ptr	clone ()=0
	Creates a copy of this image. More...
virtual std::unique_ptr< LowLevelGraphicsContext >	createLowLevelContext ()=0
	Creates a context that will draw into this image. More...
virtual std::unique_ptr< ImageType >	createType () const =0
	Creates an instance of the type of this image. More...
void	decReferenceCount () noexcept
	Decreases the object's reference count. More...
bool	decReferenceCountWithoutDeleting () noexcept
	Decreases the object's reference count. More...
int	getReferenceCount () const noexcept
	Returns the object's current reference count. More...
virtual int	getSharedCount () const noexcept
	Returns the number of Image objects which are currently referring to the same internal shared image data. More...
void	incReferenceCount () noexcept
	Increments the object's reference count. More...
virtual void	initialiseBitmapData (Image::BitmapData &, int x, int y, Image::BitmapData::ReadWriteMode)=0
	Initialises a BitmapData object. More...
void	sendDataChangeMessage ()

Public Attributes
const int	height
ListenerList< Listener >	listeners
const Image::PixelFormat	pixelFormat
	The pixel format of the image data. More...
NamedValueSet	userData
	User-defined settings that are attached to this image. More...
const int	width

Protected Member Functions
void	resetReferenceCount () noexcept
	Resets the reference count to zero without deleting the object. More...

Private Attributes
Atomic< int >	refCount { 0 }

Detailed Description

This is a base class for holding image data in implementation-specific ways.

You may never need to use this class directly - it's used internally by the Image class to store the actual image data. To access pixel data directly, you should use Image::BitmapData rather than this class.

ImagePixelData objects are created indirectly, by subclasses of ImageType.

See also

Image, ImageType

@tags{Graphics}

Member Typedef Documentation

Ptr

using juce::ImagePixelData::Ptr = ReferenceCountedObjectPtr<ImagePixelData>

Constructor & Destructor Documentation

ImagePixelData()

juce::ImagePixelData::ImagePixelData	(	Image::PixelFormat	,
		int	width,
		int	height
	)

~ImagePixelData()

juce::ImagePixelData::~ImagePixelData ( )

override

Member Function Documentation

clone()

virtual Ptr juce::ImagePixelData::clone ( )

pure virtual

Creates a copy of this image.

createLowLevelContext()

virtual std::unique_ptr<LowLevelGraphicsContext> juce::ImagePixelData::createLowLevelContext ( )

pure virtual

Creates a context that will draw into this image.

createType()

virtual std::unique_ptr<ImageType> juce::ImagePixelData::createType ( ) const

pure virtual

Creates an instance of the type of this image.

decReferenceCount()

void juce::ReferenceCountedObject::decReferenceCount ( )

inlinenoexceptinherited

Decreases the object's reference count.

If the count gets to zero, the object will be deleted.

References jassert.

decReferenceCountWithoutDeleting()

bool juce::ReferenceCountedObject::decReferenceCountWithoutDeleting ( )

inlinenoexceptinherited

Decreases the object's reference count.

If the count gets to zero, the object will not be deleted, but this method will return true, allowing the caller to take care of deletion.

References jassert.

getReferenceCount()

int juce::ReferenceCountedObject::getReferenceCount ( ) const

inlinenoexceptinherited

Returns the object's current reference count.

getSharedCount()

virtual int juce::ImagePixelData::getSharedCount ( ) const

virtualnoexcept

Returns the number of Image objects which are currently referring to the same internal shared image data.

This is different to the reference count as an instance of ImagePixelData can internally depend on another ImagePixelData via it's member variables.

incReferenceCount()

void juce::ReferenceCountedObject::incReferenceCount ( )

inlinenoexceptinherited

Increments the object's reference count.

This is done automatically by the smart pointer, but is public just in case it's needed for nefarious purposes.

Referenced by juce::ReferenceCountedObjectPtr< juce::ReferenceCountedObject >::operator=().

initialiseBitmapData()

virtual void juce::ImagePixelData::initialiseBitmapData ( Image::BitmapData &  , int  x, int  y, Image::BitmapData::ReadWriteMode    )

pure virtual

Initialises a BitmapData object.

resetReferenceCount()

void juce::ReferenceCountedObject::resetReferenceCount ( )

inlineprotectednoexceptinherited

Resets the reference count to zero without deleting the object.

You should probably never need to use this!

sendDataChangeMessage()

void juce::ImagePixelData::sendDataChangeMessage

(

)

Member Data Documentation

height

const int juce::ImagePixelData::height

listeners

ListenerList<Listener> juce::ImagePixelData::listeners

pixelFormat

const Image::PixelFormat juce::ImagePixelData::pixelFormat

The pixel format of the image data.

refCount

Atomic<int> juce::ReferenceCountedObject::refCount { 0 }

privateinherited

userData

NamedValueSet juce::ImagePixelData::userData

User-defined settings that are attached to this image.

See also

Image::getProperties().

width

const int juce::ImagePixelData::width

---

The documentation for this class was generated from the following file:

• juce_Image.h
