juce::OSCReceiver Class Reference

A class for receiving OSC data. More...

#include <juce_OSCReceiver.h>

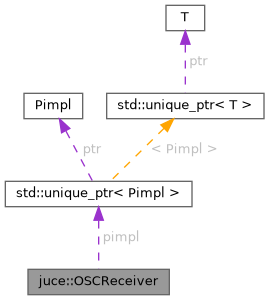

Collaboration diagram for juce::OSCReceiver:

Classes
class	Listener
	A class for receiving OSC data from an OSCReceiver. More...
class	ListenerWithOSCAddress
	A class for receiving only those OSC messages from an OSCReceiver that match a given OSC address. More...
struct	MessageLoopCallback
	Use this struct as the template parameter for Listener and ListenerWithOSCAddress to receive incoming OSC data on the message thread. More...
struct	RealtimeCallback
	Use this struct as the template parameter for Listener and ListenerWithOSCAddress to receive incoming OSC data immediately after it arrives, called directly on the network thread that listens to incoming OSC traffic. More...

Public Types
using	FormatErrorHandler = std::function< void(const char *data, int dataSize)>
	An error handler function for OSC format errors that can be called by the OSCReceiver. More...

Public Member Functions
	OSCReceiver ()
	Creates an OSCReceiver. More...
	OSCReceiver (const String &threadName)
	Creates an OSCReceiver with a specific name for its thread. More...
	~OSCReceiver ()
	Destructor. More...
void	addListener (Listener< MessageLoopCallback > *listenerToAdd)
	Adds a listener that listens to OSC messages and bundles. More...
void	addListener (Listener< RealtimeCallback > *listenerToAdd)
	Adds a listener that listens to OSC messages and bundles. More...
void	addListener (ListenerWithOSCAddress< MessageLoopCallback > *listenerToAdd, OSCAddress addressToMatch)
	Adds a filtered listener that listens to OSC messages matching the address used to register the listener here. More...
void	addListener (ListenerWithOSCAddress< RealtimeCallback > *listenerToAdd, OSCAddress addressToMatch)
	Adds a filtered listener that listens to OSC messages matching the address used to register the listener here. More...
bool	connect (int portNumber)
	Connects to the specified UDP port using a datagram socket, and starts listening to OSC packets arriving on this port. More...
bool	connectToSocket (DatagramSocket &socketToUse)
	Connects to a UDP datagram socket that is already set up, and starts listening to OSC packets arriving on this port. More...
bool	disconnect ()
	Disconnects from the currently used UDP port. More...
void	registerFormatErrorHandler (FormatErrorHandler handler)
	Installs a custom error handler which is called in case the receiver encounters a stream it cannot parse as an OSC bundle or OSC message. More...
void	removeListener (Listener< MessageLoopCallback > *listenerToRemove)
	Removes a previously-registered listener. More...
void	removeListener (Listener< RealtimeCallback > *listenerToRemove)
	Removes a previously-registered listener. More...
void	removeListener (ListenerWithOSCAddress< MessageLoopCallback > *listenerToRemove)
	Removes a previously-registered listener. More...
void	removeListener (ListenerWithOSCAddress< RealtimeCallback > *listenerToRemove)
	Removes a previously-registered listener. More...

Private Attributes
std::unique_ptr< Pimpl >	pimpl

Friends
struct	OSCReceiverCallbackMessage

Detailed Description

A class for receiving OSC data.

An OSCReceiver object allows you to receive OSC bundles and messages. It can connect to a network port, receive incoming OSC packets from the network via UDP, parse them, and forward the included OSCMessage and OSCBundle objects to its listeners.

@tags{OSC}

Member Typedef Documentation

FormatErrorHandler

using juce::OSCReceiver::FormatErrorHandler = std::function<void (const char* data, int dataSize)>

An error handler function for OSC format errors that can be called by the OSCReceiver.

The arguments passed are the pointer to and the data of the buffer that the OSCReceiver has failed to parse.

Constructor & Destructor Documentation

OSCReceiver() [1/2]

juce::OSCReceiver::OSCReceiver

(

)

Creates an OSCReceiver.

OSCReceiver() [2/2]

juce::OSCReceiver::OSCReceiver

(

const String &

threadName

)

Creates an OSCReceiver with a specific name for its thread.

~OSCReceiver()

juce::OSCReceiver::~OSCReceiver

(

)

Destructor.

Member Function Documentation

addListener() [1/4]

void juce::OSCReceiver::addListener

(

Listener< MessageLoopCallback > *

listenerToAdd

)

Adds a listener that listens to OSC messages and bundles.

This listener will be called on the application's message loop.

addListener() [2/4]

void juce::OSCReceiver::addListener

(

Listener< RealtimeCallback > *

listenerToAdd

)

Adds a listener that listens to OSC messages and bundles.

This listener will be called in real-time directly on the network thread that receives OSC data.

addListener() [3/4]

void juce::OSCReceiver::addListener	(	ListenerWithOSCAddress< MessageLoopCallback > *	listenerToAdd,
		OSCAddress	addressToMatch
	)

Adds a filtered listener that listens to OSC messages matching the address used to register the listener here.

The listener will be called on the application's message loop.

addListener() [4/4]

void juce::OSCReceiver::addListener	(	ListenerWithOSCAddress< RealtimeCallback > *	listenerToAdd,
		OSCAddress	addressToMatch
	)

Adds a filtered listener that listens to OSC messages matching the address used to register the listener here.

The listener will be called on the application's message loop.

connect()

bool juce::OSCReceiver::connect

(

int

portNumber

)

Connects to the specified UDP port using a datagram socket, and starts listening to OSC packets arriving on this port.

Returns

true if the connection was successful; false otherwise.

connectToSocket()

bool juce::OSCReceiver::connectToSocket

(

DatagramSocket &

socketToUse

)

Connects to a UDP datagram socket that is already set up, and starts listening to OSC packets arriving on this port.

Make sure that the object you give it doesn't get deleted while this object is still using it!

Returns

true if the connection was successful; false otherwise.

disconnect()

bool juce::OSCReceiver::disconnect

(

)

Disconnects from the currently used UDP port.

Returns

true if the disconnection was successful; false otherwise.

registerFormatErrorHandler()

void juce::OSCReceiver::registerFormatErrorHandler

(

FormatErrorHandler

handler

)

Installs a custom error handler which is called in case the receiver encounters a stream it cannot parse as an OSC bundle or OSC message.

By default (i.e. if you never use this method), in case of a parsing error nothing happens and the invalid packet is simply discarded.

removeListener() [1/4]

void juce::OSCReceiver::removeListener

(

Listener< MessageLoopCallback > *

listenerToRemove

)

Removes a previously-registered listener.

removeListener() [2/4]

void juce::OSCReceiver::removeListener

(

Listener< RealtimeCallback > *

listenerToRemove

)

Removes a previously-registered listener.

removeListener() [3/4]

void juce::OSCReceiver::removeListener

(

ListenerWithOSCAddress< MessageLoopCallback > *

listenerToRemove

)

Removes a previously-registered listener.

removeListener() [4/4]

void juce::OSCReceiver::removeListener

(

ListenerWithOSCAddress< RealtimeCallback > *

listenerToRemove

)

Removes a previously-registered listener.

Friends And Related Function Documentation

OSCReceiverCallbackMessage

friend struct OSCReceiverCallbackMessage

friend

Member Data Documentation

pimpl

std::unique_ptr<Pimpl> juce::OSCReceiver::pimpl

private

---

The documentation for this class was generated from the following file:

• juce_OSCReceiver.h
