juce::OSCMessage Class Reference

An OSC Message. More...

#include <juce_OSCMessage.h>

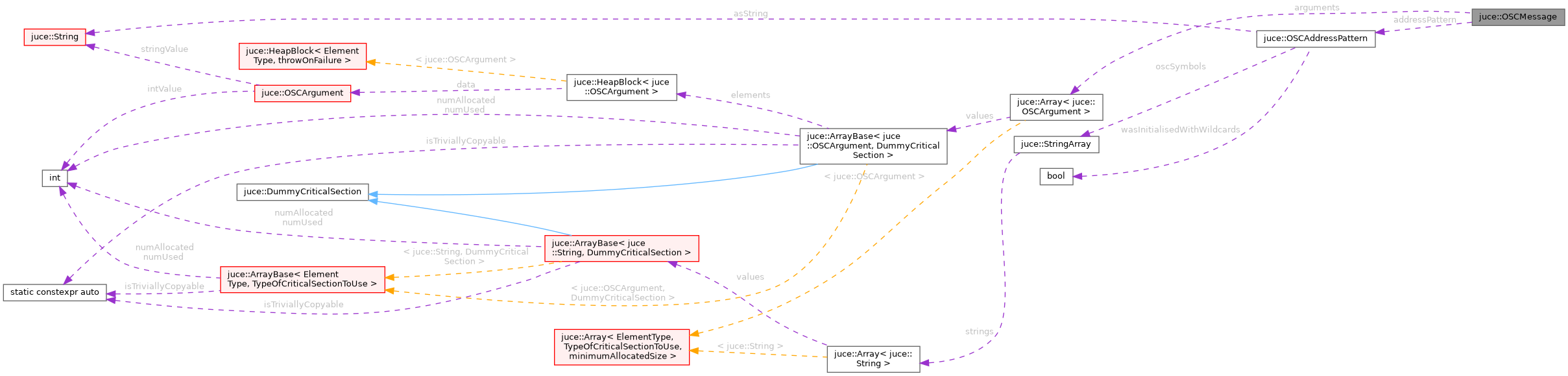

Collaboration diagram for juce::OSCMessage:

Public Member Functions
	OSCMessage (const OSCAddressPattern &ap) noexcept
	Constructs an OSCMessage object with the given address pattern and no arguments. More...
template<typename Arg1 , typename... Args>
	OSCMessage (const OSCAddressPattern &ap, Arg1 &&arg1, Args &&... args)
	Constructs an OSCMessage object with the given address pattern and list of arguments. More...
void	addArgument (OSCArgument argument)
	Adds the OSCArgument argument to the OSCMessage object. More...
void	addBlob (MemoryBlock blob)
	Creates a new OSCArgument of type blob with binary data content copied from the given MemoryBlock. More...
void	addColour (OSCColour colour)
	Creates a new OSCArgument of type colour with the given value, and adds it to the OSCMessage object. More...
void	addFloat32 (float value)
	Creates a new OSCArgument of type float32 with the given value, and adds it to the OSCMessage object. More...
void	addInt32 (int32 value)
	Creates a new OSCArgument of type int32 with the given value, and adds it to the OSCMessage object. More...
void	addString (const String &value)
	Creates a new OSCArgument of type string with the given value, and adds it to the OSCMessage object. More...
const OSCArgument *	begin () const noexcept
	Returns a pointer to the first OSCArgument in the OSCMessage object. More...
OSCArgument *	begin () noexcept
	Returns a pointer to the first OSCArgument in the OSCMessage object. More...
void	clear ()
	Removes all arguments from the OSCMessage. More...
const OSCArgument *	end () const noexcept
	Returns a pointer to the last OSCArgument in the OSCMessage object. More...
OSCArgument *	end () noexcept
	Returns a pointer to the last OSCArgument in the OSCMessage object. More...
OSCAddressPattern	getAddressPattern () const noexcept
	Returns the address pattern of the OSCMessage. More...
bool	isEmpty () const noexcept
	Returns true if the OSCMessage contains no OSCArgument objects; false otherwise. More...
const OSCArgument &	operator[] (const int i) const noexcept
OSCArgument &	operator[] (const int i) noexcept
	Returns a reference to the OSCArgument at index i in the OSCMessage object. More...
void	setAddressPattern (const OSCAddressPattern &ap) noexcept
	Sets the address pattern of the OSCMessage. More...
int	size () const noexcept
	Returns the number of OSCArgument objects that belong to this OSCMessage. More...

Private Member Functions
void	addArguments ()
template<typename Arg1 , typename... Args>
void	addArguments (Arg1 &&arg1, Args &&... args)

Private Attributes
OSCAddressPattern	addressPattern
Array< OSCArgument >	arguments

Detailed Description

An OSC Message.

An OSCMessage consists of an OSCAddressPattern and zero or more OSCArguments.

OSC messages are the elementary objects that are used to exchange any data via OSC. An OSCSender can send OSCMessage objects to an OSCReceiver.

@tags{OSC}

Constructor & Destructor Documentation

OSCMessage() [1/2]

juce::OSCMessage::OSCMessage ( const OSCAddressPattern &  ap )

noexcept

Constructs an OSCMessage object with the given address pattern and no arguments.

Parameters

ap	the address pattern of the message. This must be a valid OSC address (starting with a forward slash) and may contain OSC wildcard expressions. You can pass in a string literal or a juce String (they will be converted to an OSCAddressPattern automatically).

OSCMessage() [2/2]

template<typename Arg1 , typename... Args>

juce::OSCMessage::OSCMessage	(	const OSCAddressPattern &	ap,
		Arg1 &&	arg1,
		Args &&...	args
	)

Constructs an OSCMessage object with the given address pattern and list of arguments.

Parameters

ap	the address pattern of the message. This must be a valid OSC address (starting with a forward slash) and may contain OSC wildcard expressions. You can pass in a string literal or a juce String (they will be converted to an OSCAddressPattern automatically).
arg1	the first argument of the message.
args	an optional list of further arguments to add to the message.

References addArguments(), and juce::gl::arg1.

Member Function Documentation

addArgument()

void juce::OSCMessage::addArgument

(

OSCArgument

argument

)

Adds the OSCArgument argument to the OSCMessage object.

Note: This method will result in a copy of the OSCArgument object if it is passed as an lvalue. If the OSCArgument is of type blob, this will also copy the underlying binary data. In general, you should use addInt32, addFloat32, etc. instead.

addArguments() [1/2]

void juce::OSCMessage::addArguments ( )

inlineprivate

Referenced by OSCMessage().

addArguments() [2/2]

template<typename Arg1 , typename... Args>

void juce::OSCMessage::addArguments ( Arg1 &&  arg1, Args &&...  args  )

inlineprivate

References juce::gl::arg1.

addBlob()

void juce::OSCMessage::addBlob

(

MemoryBlock

blob

)

Creates a new OSCArgument of type blob with binary data content copied from the given MemoryBlock.

Note: If the argument passed is an lvalue, this may copy the binary data.

addColour()

void juce::OSCMessage::addColour

(

OSCColour

colour

)

Creates a new OSCArgument of type colour with the given value, and adds it to the OSCMessage object.

addFloat32()

void juce::OSCMessage::addFloat32

(

float

value

)

Creates a new OSCArgument of type float32 with the given value, and adds it to the OSCMessage object.

addInt32()

void juce::OSCMessage::addInt32

(

int32

value

)

Creates a new OSCArgument of type int32 with the given value, and adds it to the OSCMessage object.

addString()

void juce::OSCMessage::addString

(

const String &

value

)

Creates a new OSCArgument of type string with the given value, and adds it to the OSCMessage object.

begin() [1/2]

const OSCArgument* juce::OSCMessage::begin ( ) const

noexcept

Returns a pointer to the first OSCArgument in the OSCMessage object.

This method is provided for compatibility with standard C++ iteration mechanisms.

begin() [2/2]

OSCArgument* juce::OSCMessage::begin ( )

noexcept

Returns a pointer to the first OSCArgument in the OSCMessage object.

This method is provided for compatibility with standard C++ iteration mechanisms.

clear()

void juce::OSCMessage::clear

(

)

Removes all arguments from the OSCMessage.

end() [1/2]

const OSCArgument* juce::OSCMessage::end ( ) const

noexcept

Returns a pointer to the last OSCArgument in the OSCMessage object.

This method is provided for compatibility with standard C++ iteration mechanisms.

end() [2/2]

OSCArgument* juce::OSCMessage::end ( )

noexcept

Returns a pointer to the last OSCArgument in the OSCMessage object.

This method is provided for compatibility with standard C++ iteration mechanisms.

getAddressPattern()

OSCAddressPattern juce::OSCMessage::getAddressPattern ( ) const

noexcept

Returns the address pattern of the OSCMessage.

isEmpty()

bool juce::OSCMessage::isEmpty ( ) const

noexcept

Returns true if the OSCMessage contains no OSCArgument objects; false otherwise.

operator[]() [1/2]

const OSCArgument& juce::OSCMessage::operator[] ( const int  i ) const

noexcept

operator[]() [2/2]

OSCArgument& juce::OSCMessage::operator[] ( const int  i )

noexcept

Returns a reference to the OSCArgument at index i in the OSCMessage object.

This method does not check the range and results in undefined behaviour in case i < 0 or i >= size().

setAddressPattern()

void juce::OSCMessage::setAddressPattern ( const OSCAddressPattern &  ap )

noexcept

Sets the address pattern of the OSCMessage.

Parameters

ap	the address pattern of the message. This must be a valid OSC address (starting with a forward slash) and may contain OSC wildcard expressions. You can pass in a string literal or a juce String (they will be converted to an OSCAddressPattern automatically).

size()

int juce::OSCMessage::size ( ) const

noexcept

Returns the number of OSCArgument objects that belong to this OSCMessage.

Member Data Documentation

addressPattern

OSCAddressPattern juce::OSCMessage::addressPattern

private

arguments

Array<OSCArgument> juce::OSCMessage::arguments

private

---

The documentation for this class was generated from the following file:

• juce_OSCMessage.h
