Class used to create a set of options to pass to the show() method. More...

#include <juce_PopupMenu.h>

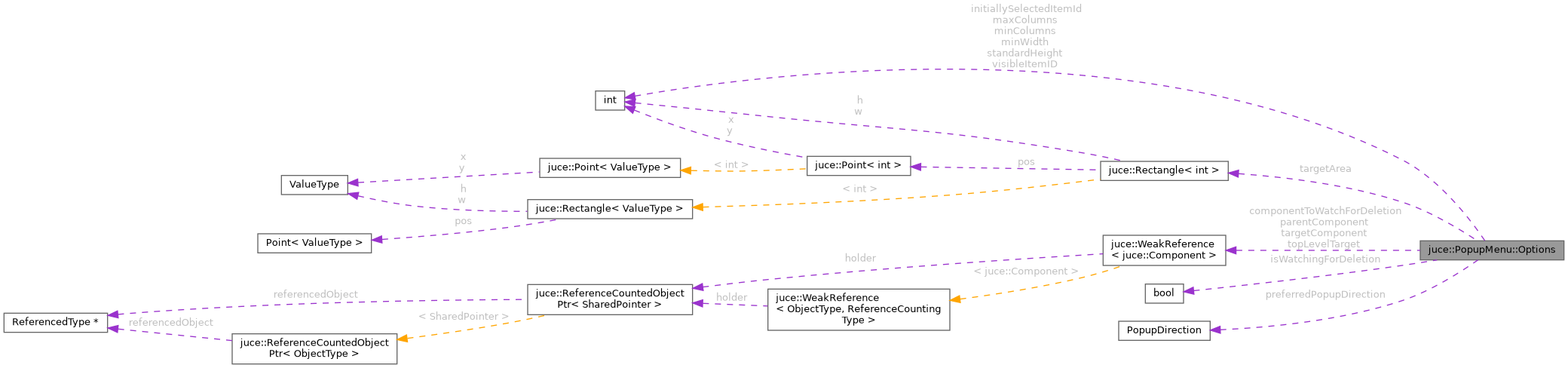

Collaboration diagram for juce::PopupMenu::Options:

[legend]

Public Types
enum class	PopupDirection { upwards , downwards }

Public Member Functions
	Options ()
	By default, the target screen area will be the current mouse position.

	Options (const Options &)=default

Options	forSubmenu () const
	Returns a copy of these options with the target component set to null.

int	getInitiallySelectedItemId () const noexcept
	Gets the ID of the item that must be selected when the menu is initially shown.

int	getItemThatMustBeVisible () const noexcept
	Gets the ID of the item that must be visible when the menu is initially shown.

int	getMaximumNumColumns () const noexcept
	Gets the maximum number of columns.

int	getMinimumNumColumns () const noexcept
	Gets the minimum number of columns.

int	getMinimumWidth () const noexcept
	Gets the minimum width.

Component *	getParentComponent () const noexcept
	Gets the parent component.

PopupDirection	getPreferredPopupDirection () const noexcept
	Gets the preferred popup menu direction.

int	getStandardItemHeight () const noexcept
	Gets the default height of items in the menu.

Component *	getTargetComponent () const noexcept
	Gets the target component.

Rectangle< int >	getTargetScreenArea () const noexcept
	Gets the target screen area.

Component *	getTopLevelTargetComponent () const noexcept
	Gets the target component that was set for the top-level menu.

bool	hasWatchedComponentBeenDeleted () const noexcept
	Returns true if the menu was watching a component, and that component has been deleted, and false otherwise.

Options &	operator= (const Options &)=default

Options	withDeletionCheck (Component &componentToWatchForDeletion) const
	If the passed component has been deleted when the popup menu exits, the selected item's action will not be called.

Options	withInitiallySelectedItem (int idOfItemToBeSelected) const
	Sets an item to select in the menu.

Options	withItemThatMustBeVisible (int idOfItemToBeVisible) const
	Sets an item which must be visible when the menu is initially drawn.

Options	withMaximumNumColumns (int maxNumColumns) const
	Sets the maximum number of columns in the popup window.

Options	withMinimumNumColumns (int minNumColumns) const
	Sets the minimum number of columns in the popup window.

Options	withMinimumWidth (int minWidth) const
	Sets the minimum width of the popup window.

Options	withMousePosition () const
	Sets the target screen area to match the current mouse position.

Options	withParentComponent (Component *parentComponent) const
	Sets a component that the popup menu will be drawn into.

Options	withPreferredPopupDirection (PopupDirection direction) const
	Sets the direction of the popup menu relative to the target screen area.

Options	withStandardItemHeight (int standardHeight) const
	Sets the default height of each item in the popup menu.

Options	withTargetComponent (Component &targetComponent) const

Options	withTargetComponent (Component *targetComponent) const
	Sets the target component to use when displaying the menu.

Options	withTargetScreenArea (Rectangle< int > targetArea) const
	Sets the region of the screen next to which the menu should be displayed.

Private Attributes
WeakReference< Component >	componentToWatchForDeletion

int	initiallySelectedItemId = 0

bool	isWatchingForDeletion = false

int	maxColumns = 0

int	minColumns = 1

int	minWidth = 0

WeakReference< Component >	parentComponent

PopupDirection	preferredPopupDirection = PopupDirection::downwards

int	standardHeight = 0

Rectangle< int >	targetArea

WeakReference< Component >	targetComponent

WeakReference< Component >	topLevelTarget

int	visibleItemID = 0

Detailed Description

Class used to create a set of options to pass to the show() method.

You can chain together a series of calls to this class's methods to create a set of whatever options you want to specify. E.g.

PopupMenu menu;
...
menu.showMenu (PopupMenu::Options().withMinimumWidth (100)
                                   .withMaximumNumColumns (3)
                                   .withTargetComponent (myComp));

Member Enumeration Documentation

◆ PopupDirection

enum class juce::PopupMenu::Options::PopupDirection

strong

Enumerator
upwards
downwards

Constructor & Destructor Documentation

◆ Options() [1/2]

juce::PopupMenu::Options::Options ( )

By default, the target screen area will be the current mouse position.

◆ Options() [2/2]

juce::PopupMenu::Options::Options ( const Options & )

default

Member Function Documentation

◆ forSubmenu()

Options juce::PopupMenu::Options::forSubmenu ( ) const

Returns a copy of these options with the target component set to null.

The value of the top-level target component will not be changed.

See also: getTargetComponent(), getTopLevelTargetComponent()

◆ getInitiallySelectedItemId()

int juce::PopupMenu::Options::getInitiallySelectedItemId ( ) const

inlinenoexcept

Gets the ID of the item that must be selected when the menu is initially shown.

See also: withItemThatMustBeVisible

◆ getItemThatMustBeVisible()

int juce::PopupMenu::Options::getItemThatMustBeVisible ( ) const

inlinenoexcept

Gets the ID of the item that must be visible when the menu is initially shown.

See also: withItemThatMustBeVisible

◆ getMaximumNumColumns()

int juce::PopupMenu::Options::getMaximumNumColumns ( ) const

inlinenoexcept

Gets the maximum number of columns.

See also: withMaximumNumColumns

◆ getMinimumNumColumns()

int juce::PopupMenu::Options::getMinimumNumColumns ( ) const

inlinenoexcept

Gets the minimum number of columns.

See also: withMinimumNumColumns

◆ getMinimumWidth()

int juce::PopupMenu::Options::getMinimumWidth ( ) const

inlinenoexcept

Gets the minimum width.

See also: withMinimumWidth

◆ getParentComponent()

Component * juce::PopupMenu::Options::getParentComponent ( ) const

inlinenoexcept

Gets the parent component.

This may be nullptr if the Component has been deleted.

See also: withParentComponent

◆ getPreferredPopupDirection()

PopupDirection juce::PopupMenu::Options::getPreferredPopupDirection ( ) const

inlinenoexcept

Gets the preferred popup menu direction.

See also: withPreferredPopupDirection

◆ getStandardItemHeight()

int juce::PopupMenu::Options::getStandardItemHeight ( ) const

inlinenoexcept

Gets the default height of items in the menu.

See also: withStandardItemHeight

◆ getTargetComponent()

Component * juce::PopupMenu::Options::getTargetComponent ( ) const

inlinenoexcept

Gets the target component.

This may be nullptr if the Component has been deleted.

See also: withTargetComponent

◆ getTargetScreenArea()

Rectangle< int > juce::PopupMenu::Options::getTargetScreenArea ( ) const

inlinenoexcept

Gets the target screen area.

See also: withTargetScreenArea

◆ getTopLevelTargetComponent()

Component * juce::PopupMenu::Options::getTopLevelTargetComponent ( ) const

inlinenoexcept

Gets the target component that was set for the top-level menu.

When querying the options of a submenu, getTargetComponent() will always return nullptr, while getTopLevelTargetComponent() will return the target passed to withTargetComponent() when creating the top-level menu.

◆ hasWatchedComponentBeenDeleted()

bool juce::PopupMenu::Options::hasWatchedComponentBeenDeleted ( ) const

inlinenoexcept

Returns true if the menu was watching a component, and that component has been deleted, and false otherwise.

See also: withDeletionCheck

◆ operator=()

Options & juce::PopupMenu::Options::operator= ( const Options & )

default

◆ withDeletionCheck()

Options juce::PopupMenu::Options::withDeletionCheck ( Component & componentToWatchForDeletion ) const

If the passed component has been deleted when the popup menu exits, the selected item's action will not be called.

This is useful for avoiding dangling references inside the action callback, in the case that the callback needs to access a component that may be deleted.

◆ withInitiallySelectedItem()

Options juce::PopupMenu::Options::withInitiallySelectedItem ( int idOfItemToBeSelected ) const

Sets an item to select in the menu.

This is useful for controls such as combo boxes, where opening the combo box with the keyboard should ideally highlight the currently-selected item, allowing the next/previous item to be selected by pressing up/down on the keyboard, rather than needing to move the highlighted row down from the top of the menu each time it is opened.

◆ withItemThatMustBeVisible()

Options juce::PopupMenu::Options::withItemThatMustBeVisible ( int idOfItemToBeVisible ) const

Sets an item which must be visible when the menu is initially drawn.

This is useful to ensure that a particular item is shown when the menu contains too many items to display on a single screen.

◆ withMaximumNumColumns()

Options juce::PopupMenu::Options::withMaximumNumColumns ( int maxNumColumns ) const

Sets the maximum number of columns in the popup window.

◆ withMinimumNumColumns()

Options juce::PopupMenu::Options::withMinimumNumColumns ( int minNumColumns ) const

Sets the minimum number of columns in the popup window.

◆ withMinimumWidth()

Options juce::PopupMenu::Options::withMinimumWidth ( int minWidth ) const

Sets the minimum width of the popup window.

◆ withMousePosition()

Options juce::PopupMenu::Options::withMousePosition ( ) const

Sets the target screen area to match the current mouse position.

Make sure to call this after withTargetComponent().

See also: withTargetScreenArea

◆ withParentComponent()

Options juce::PopupMenu::Options::withParentComponent ( Component * parentComponent ) const

Sets a component that the popup menu will be drawn into.

Some plugin formats, such as AUv3, dislike it when the plugin editor spawns additional windows. Some AUv3 hosts display pink backgrounds underneath transparent popup windows, which is confusing and can appear as though the plugin is malfunctioning. Setting a parent component will avoid this unwanted behaviour, but with the downside that the menu size will be constrained by the size of the parent component.

◆ withPreferredPopupDirection()

Options juce::PopupMenu::Options::withPreferredPopupDirection ( PopupDirection direction ) const

Sets the direction of the popup menu relative to the target screen area.

◆ withStandardItemHeight()

Options juce::PopupMenu::Options::withStandardItemHeight ( int standardHeight ) const

Sets the default height of each item in the popup menu.

◆ withTargetComponent() [1/2]

Options juce::PopupMenu::Options::withTargetComponent ( Component & targetComponent ) const

◆ withTargetComponent() [2/2]

Options juce::PopupMenu::Options::withTargetComponent ( Component * targetComponent ) const

Sets the target component to use when displaying the menu.

This is normally the button or other control that triggered the menu.

The target component is primarily used to control the scale of the menu, so it's important to supply a target component if you'll be using your program on hi-DPI displays.

This function will also set the target screen area, so that the menu displays next to the target component. If you need to display the menu at a specific location, you should call withTargetScreenArea() after withTargetComponent.

See also: withTargetComponent, withTargetScreenArea

◆ withTargetScreenArea()

Options juce::PopupMenu::Options::withTargetScreenArea ( Rectangle< int > targetArea ) const

Sets the region of the screen next to which the menu should be displayed.

To display the menu next to the mouse cursor use withMousePosition(), which is equivalent to passing the following to this function:

Rectangle<int>{}.withPosition (Desktop::getMousePosition())

juce::Desktop::getMousePosition

static Point< int > getMousePosition()

Returns the mouse position.

juce::Rectangle

Manages a rectangle and allows geometric operations to be performed on it.

Definition juce_Rectangle.h:76

juce::Rectangle::withPosition

Rectangle withPosition(ValueType newX, ValueType newY) const noexcept

Returns a rectangle with the same size as this one, but a new position.

Definition juce_Rectangle.h:241

withTargetComponent() will also set the target screen area. If you need a target component and a target screen area, make sure to call withTargetScreenArea() after withTargetComponent().

See also: withMousePosition

Member Data Documentation

◆ componentToWatchForDeletion

WeakReference<Component> juce::PopupMenu::Options::componentToWatchForDeletion

private

◆ initiallySelectedItemId

int juce::PopupMenu::Options::initiallySelectedItemId = 0

private

◆ isWatchingForDeletion

bool juce::PopupMenu::Options::isWatchingForDeletion = false

private

◆ maxColumns

int juce::PopupMenu::Options::maxColumns = 0

private

◆ minColumns

int juce::PopupMenu::Options::minColumns = 1

private

◆ minWidth

int juce::PopupMenu::Options::minWidth = 0

private

◆ parentComponent

WeakReference<Component> juce::PopupMenu::Options::parentComponent

private

◆ preferredPopupDirection

PopupDirection juce::PopupMenu::Options::preferredPopupDirection = PopupDirection::downwards

private

◆ standardHeight

int juce::PopupMenu::Options::standardHeight = 0

private

◆ targetArea

Rectangle<int> juce::PopupMenu::Options::targetArea

private

◆ targetComponent

WeakReference<Component> juce::PopupMenu::Options::targetComponent

private

◆ topLevelTarget

WeakReference<Component> juce::PopupMenu::Options::topLevelTarget

private

◆ visibleItemID

int juce::PopupMenu::Options::visibleItemID = 0

private

The documentation for this class was generated from the following file:

juce_PopupMenu.h

Public Types

Public Member Functions

Private Attributes

Detailed Description

Member Enumeration Documentation

◆ PopupDirection

Constructor & Destructor Documentation

◆ Options() [1/2]

◆ Options() [2/2]

Member Function Documentation

◆ forSubmenu()

◆ getInitiallySelectedItemId()

◆ getItemThatMustBeVisible()

◆ getMaximumNumColumns()

◆ getMinimumNumColumns()

◆ getMinimumWidth()

◆ getParentComponent()

◆ getPreferredPopupDirection()

◆ getStandardItemHeight()

◆ getTargetComponent()

◆ getTargetScreenArea()

◆ getTopLevelTargetComponent()

◆ hasWatchedComponentBeenDeleted()

◆ operator=()

◆ withDeletionCheck()

◆ withInitiallySelectedItem()

◆ withItemThatMustBeVisible()

◆ withMaximumNumColumns()

◆ withMinimumNumColumns()

◆ withMinimumWidth()

◆ withMousePosition()

◆ withParentComponent()

◆ withPreferredPopupDirection()

◆ withStandardItemHeight()

◆ withTargetComponent() [1/2]

◆ withTargetComponent() [2/2]

◆ withTargetScreenArea()

Member Data Documentation

◆ componentToWatchForDeletion

◆ initiallySelectedItemId

◆ isWatchingForDeletion

◆ maxColumns

◆ minColumns

◆ minWidth

◆ parentComponent

◆ preferredPopupDirection

◆ standardHeight

◆ targetArea

◆ targetComponent

◆ topLevelTarget

◆ visibleItemID
