juce::PopupMenu Class Reference

Creates and displays a popup-menu. More...

#include <juce_PopupMenu.h>

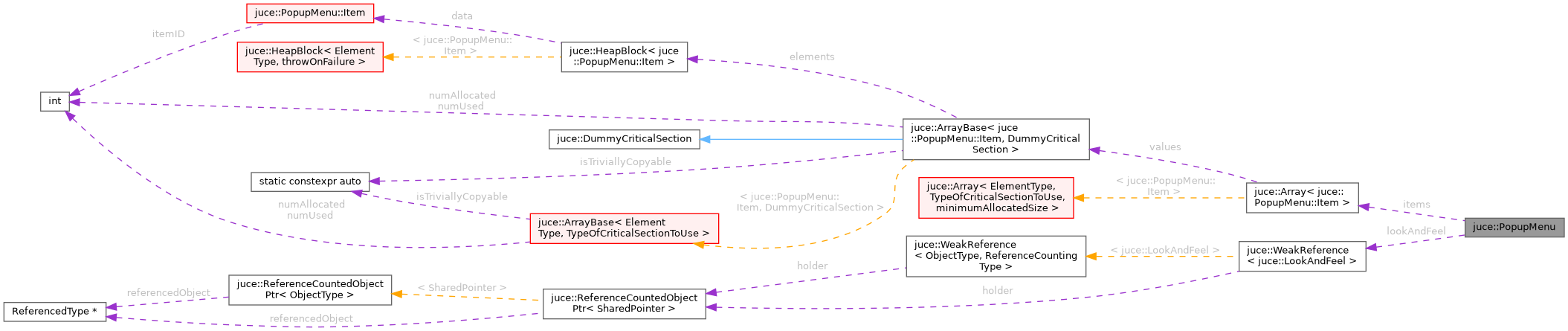

Collaboration diagram for juce::PopupMenu:

Classes

class  CustomCallback
 A user-defined callback that can be used for specific items in a popup menu. More...

class  CustomComponent
 A user-defined component that can be used as an item in a popup menu. More...

struct  Item
 Describes a popup menu item. More...

struct  LookAndFeelMethods
 This abstract base class is implemented by LookAndFeel classes to provide menu drawing functionality. More...

class  MenuItemIterator
 Allows you to iterate through the items in a pop-up menu, and examine their properties. More...

class  Options
 Class used to create a set of options to pass to the show() method. More...


Public Types

enum  ColourIds {
  backgroundColourId = 0x1000700,
  textColourId = 0x1000600,
  headerTextColourId = 0x1000601,
  highlightedBackgroundColourId = 0x1000900,
  highlightedTextColourId = 0x1000800
}
 A set of colour IDs to use to change the colour of various aspects of the menu. More...


Public Member Functions

 PopupMenu ()=default
 Creates an empty popup menu. More...

 PopupMenu (const PopupMenu &)
 Creates a copy of another menu. More...

 PopupMenu (PopupMenu &&) noexcept
 Move constructor. More...

 ~PopupMenu ()
 Destructor. More...

void addColouredItem (int itemResultID, String itemText, Colour itemTextColour, bool isEnabled, bool isTicked, std::unique_ptr< Drawable > iconToUse)
 Appends a text item with a special colour. More...

void addColouredItem (int itemResultID, String itemText, Colour itemTextColour, bool isEnabled=true, bool isTicked=false, const Image &iconToUse={})
 Appends a text item with a special colour. More...

void addColumnBreak ()
 Adds a column break to the menu, to help break it up into sections. More...

void addCommandItem (ApplicationCommandManager *commandManager, CommandID commandID, String displayName={}, std::unique_ptr< Drawable > iconToUse={})
 Adds an item that represents one of the commands in a command manager object. More...

void addCustomItem (int itemResultID, Component &customComponent, int idealWidth, int idealHeight, bool triggerMenuItemAutomaticallyWhenClicked, std::unique_ptr< const PopupMenu > optionalSubMenu=nullptr, const String &itemTitle={})
 Appends a custom menu item that can't be used to trigger a result. More...

void addCustomItem (int itemResultID, std::unique_ptr< CustomComponent > customComponent, std::unique_ptr< const PopupMenu > optionalSubMenu=nullptr, const String &itemTitle={})
 Appends a custom menu item. More...

void addItem (int itemResultID, String itemText, bool isEnabled, bool isTicked, const Image &iconToUse)
 Appends a new item with an icon. More...

void addItem (int itemResultID, String itemText, bool isEnabled, bool isTicked, std::unique_ptr< Drawable > iconToUse)
 Appends a new item with an icon. More...

void addItem (int itemResultID, String itemText, bool isEnabled=true, bool isTicked=false)
 Appends a new text item for this menu to show. More...

void addItem (Item newItem)
 Adds an item to the menu. More...

void addItem (String itemText, bool isEnabled, bool isTicked, std::function< void()> action)
 Adds an item to the menu with an action callback. More...

void addItem (String itemText, std::function< void()> action)
 Adds an item to the menu with an action callback. More...

void addSectionHeader (String title)
 Adds a non-clickable text item to the menu. More...

void addSeparator ()
 Appends a separator to the menu, to help break it up into sections. More...

void addSubMenu (String subMenuName, PopupMenu subMenu, bool isEnabled, const Image &iconToUse, bool isTicked=false, int itemResultID=0)
 Appends a sub-menu with an icon. More...

void addSubMenu (String subMenuName, PopupMenu subMenu, bool isEnabled, std::unique_ptr< Drawable > iconToUse, bool isTicked=false, int itemResultID=0)
 Appends a sub-menu with an icon. More...

void addSubMenu (String subMenuName, PopupMenu subMenu, bool isEnabled=true)
 Appends a sub-menu. More...

void clear ()
 Resets the menu, removing all its items. More...

bool containsAnyActiveItems () const noexcept
 Returns true if the menu contains any items that can be used. More...

bool containsCommandItem (int commandID) const
 Returns true if the menu contains a command item that triggers the given command. More...

int getNumItems () const noexcept
 Returns the number of items that the menu currently contains. More...

PopupMenuoperator= (const PopupMenu &)
 Copies this menu from another one. More...

PopupMenuoperator= (PopupMenu &&) noexcept
 Move assignment operator. More...

void setLookAndFeel (LookAndFeel *newLookAndFeel)
 Specifies a look-and-feel for the menu and any sub-menus that it has. More...

int show (int itemIDThatMustBeVisible=0, int minimumWidth=0, int maximumNumColumns=0, int standardItemHeight=0, ModalComponentManager::Callback *callback=nullptr)
 Displays the menu and waits for the user to pick something. More...

int showAt (Component *componentToAttachTo, int itemIDThatMustBeVisible=0, int minimumWidth=0, int maximumNumColumns=0, int standardItemHeight=0, ModalComponentManager::Callback *callback=nullptr)
 Displays the menu as if it's attached to a component such as a button. More...

int showAt (Rectangle< int > screenAreaToAttachTo, int itemIDThatMustBeVisible=0, int minimumWidth=0, int maximumNumColumns=0, int standardItemHeight=0, ModalComponentManager::Callback *callback=nullptr)
 Displays the menu at a specific location. More...

int showMenu (const Options &options)
 Displays and runs the menu modally, with a set of options. More...

void showMenuAsync (const Options &options)
 Runs the menu asynchronously. More...

void showMenuAsync (const Options &options, ModalComponentManager::Callback *callback)
 Runs the menu asynchronously, with a user-provided callback that will receive the result. More...

void showMenuAsync (const Options &options, std::function< void(int)> callback)
 Runs the menu asynchronously, with a user-provided callback that will receive the result. More...


Static Public Member Functions

static bool dismissAllActiveMenus ()
 Closes any menus that are currently open. More...


Private Member Functions

ComponentcreateWindow (const Options &, ApplicationCommandManager **) const

int showWithOptionalCallback (const Options &, ModalComponentManager::Callback *, bool)


Static Private Member Functions

static void setItem (CustomComponent &, const Item *)


Private Attributes

Array< Itemitems

WeakReference< LookAndFeellookAndFeel


Friends

struct HelperClasses

class MenuBarComponent


Detailed Description

Creates and displays a popup-menu.

To show a popup-menu, you create one of these, add some items to it, then call its show() method, which returns the id of the item the user selects.

E.g.

void MyWidget::mouseDown (const MouseEvent& e)
{
m.addItem (1, "item 1");
m.addItem (2, "item 2");
m.showMenuAsync (PopupMenu::Options(),
[] (int result)
{
if (result == 0)
{
// user dismissed the menu without picking anything
}
else if (result == 1)
{
// user picked item 1
}
else if (result == 2)
{
// user picked item 2
}
});
}

Submenus are easy too:

void MyWidget::mouseDown (const MouseEvent& e)
{
PopupMenu subMenu;
subMenu.addItem (1, "item 1");
subMenu.addItem (2, "item 2");
PopupMenu mainMenu;
mainMenu.addItem (3, "item 3");
mainMenu.addSubMenu ("other choices", subMenu);
m.showMenuAsync (...);
}

@tags{GUI}

Member Enumeration Documentation

◆ ColourIds

A set of colour IDs to use to change the colour of various aspects of the menu.

These constants can be used either via the LookAndFeel::setColour() method for the look and feel that is set for this menu with setLookAndFeel()

See also
setLookAndFeel, LookAndFeel::setColour, LookAndFeel::findColour
Enumerator
backgroundColourId

The colour to fill the menu's background with.

textColourId

The colour for normal menu item text, (unless the colour is specified when the item is added).

headerTextColourId

The colour for section header item text (see the addSectionHeader() method).

highlightedBackgroundColourId

The colour to fill the background of the currently highlighted menu item.

highlightedTextColourId

The colour to use for the text of the currently highlighted item.

Constructor & Destructor Documentation

◆ PopupMenu() [1/3]

juce::PopupMenu::PopupMenu ( )
default

Creates an empty popup menu.

◆ PopupMenu() [2/3]

juce::PopupMenu::PopupMenu ( const PopupMenu )

Creates a copy of another menu.

◆ ~PopupMenu()

juce::PopupMenu::~PopupMenu ( )

Destructor.

◆ PopupMenu() [3/3]

juce::PopupMenu::PopupMenu ( PopupMenu &&  )
noexcept

Move constructor.

Member Function Documentation

◆ addColouredItem() [1/2]

void juce::PopupMenu::addColouredItem ( int  itemResultID,
String  itemText,
Colour  itemTextColour,
bool  isEnabled,
bool  isTicked,
std::unique_ptr< Drawable iconToUse
)

Appends a text item with a special colour.

This is the same as addItem(), but specifies a colour to use for the text, which will override the default colours that are used by the current look-and-feel. See addItem() for a description of the parameters.

◆ addColouredItem() [2/2]

void juce::PopupMenu::addColouredItem ( int  itemResultID,
String  itemText,
Colour  itemTextColour,
bool  isEnabled = true,
bool  isTicked = false,
const Image iconToUse = {}
)

Appends a text item with a special colour.

This is the same as addItem(), but specifies a colour to use for the text, which will override the default colours that are used by the current look-and-feel. See addItem() for a description of the parameters.

◆ addColumnBreak()

void juce::PopupMenu::addColumnBreak ( )

Adds a column break to the menu, to help break it up into sections.

Subsequent items will be placed in a new column, rather than being appended to the current column.

If a menu contains explicit column breaks, the menu will never add additional breaks.

◆ addCommandItem()

void juce::PopupMenu::addCommandItem ( ApplicationCommandManager commandManager,
CommandID  commandID,
String  displayName = {},
std::unique_ptr< Drawable iconToUse = {}
)

Adds an item that represents one of the commands in a command manager object.

Parameters
commandManagerthe manager to use to trigger the command and get information about it
commandIDthe ID of the command
displayNameif this is non-empty, then this string will be used instead of the command's registered name
iconToUsean optional Drawable object to use as the icon to the left of the item. The menu will take ownership of this drawable object and will delete it later when no longer needed

◆ addCustomItem() [1/2]

void juce::PopupMenu::addCustomItem ( int  itemResultID,
Component customComponent,
int  idealWidth,
int  idealHeight,
bool  triggerMenuItemAutomaticallyWhenClicked,
std::unique_ptr< const PopupMenu optionalSubMenu = nullptr,
const String itemTitle = {}
)

Appends a custom menu item that can't be used to trigger a result.

This will add a user-defined component to use as a menu item. The caller must ensure that the passed-in component stays alive until after the menu has been hidden.

If triggerMenuItemAutomaticallyWhenClicked is true, the menu itself will handle detection of a mouse-click on your component, and use that to trigger the menu ID specified in itemResultID. If this is false, the menu item can't be triggered, so itemResultID is not used.

itemTitle will be used as the fallback text for this item, and will be exposed to screen reader clients.

Note that native macOS menus do not support custom components.

◆ addCustomItem() [2/2]

void juce::PopupMenu::addCustomItem ( int  itemResultID,
std::unique_ptr< CustomComponent customComponent,
std::unique_ptr< const PopupMenu optionalSubMenu = nullptr,
const String itemTitle = {}
)

Appends a custom menu item.

This will add a user-defined component to use as a menu item.

Note that native macOS menus do not support custom components.

itemTitle will be used as the fallback text for this item, and will be exposed to screen reader clients.

See also
CustomComponent

◆ addItem() [1/6]

void juce::PopupMenu::addItem ( int  itemResultID,
String  itemText,
bool  isEnabled,
bool  isTicked,
const Image iconToUse
)

Appends a new item with an icon.

Parameters
itemResultIDthe number that will be returned from the show() method if the user picks this item. The value should never be zero, because that's used to indicate that the user didn't select anything.
itemTextthe text to show.
isEnabledif false, the item will be shown 'greyed-out' and can't be picked
isTickedif true, the item will be shown with a tick next to it
iconToUseif this is a valid image, it will be displayed to the left of the item.
See also
addSeparator, addColouredItem, addCustomItem, addSubMenu

◆ addItem() [2/6]

void juce::PopupMenu::addItem ( int  itemResultID,
String  itemText,
bool  isEnabled,
bool  isTicked,
std::unique_ptr< Drawable iconToUse
)

Appends a new item with an icon.

Parameters
itemResultIDthe number that will be returned from the show() method if the user picks this item. The value should never be zero, because that's used to indicate that the user didn't select anything.
itemTextthe text to show.
isEnabledif false, the item will be shown 'greyed-out' and can't be picked
isTickedif true, the item will be shown with a tick next to it
iconToUsea Drawable object to use as the icon to the left of the item. The menu will take ownership of this drawable object and will delete it later when no longer needed
See also
addSeparator, addColouredItem, addCustomItem, addSubMenu

◆ addItem() [3/6]

void juce::PopupMenu::addItem ( int  itemResultID,
String  itemText,
bool  isEnabled = true,
bool  isTicked = false
)

Appends a new text item for this menu to show.

Parameters
itemResultIDthe number that will be returned from the show() method if the user picks this item. The value should never be zero, because that's used to indicate that the user didn't select anything.
itemTextthe text to show.
isEnabledif false, the item will be shown 'greyed-out' and can't be picked
isTickedif true, the item will be shown with a tick next to it
See also
addSeparator, addColouredItem, addCustomItem, addSubMenu

◆ addItem() [4/6]

void juce::PopupMenu::addItem ( Item  newItem)

Adds an item to the menu.

You can call this method for full control over the item that is added, or use the other addItem helper methods if you want to pass arguments rather than creating an Item object.

◆ addItem() [5/6]

void juce::PopupMenu::addItem ( String  itemText,
bool  isEnabled,
bool  isTicked,
std::function< void()>  action
)

Adds an item to the menu with an action callback.

◆ addItem() [6/6]

void juce::PopupMenu::addItem ( String  itemText,
std::function< void()>  action
)

Adds an item to the menu with an action callback.

◆ addSectionHeader()

void juce::PopupMenu::addSectionHeader ( String  title)

Adds a non-clickable text item to the menu.

This is a bold-font items which can be used as a header to separate the items into named groups.

◆ addSeparator()

void juce::PopupMenu::addSeparator ( )

Appends a separator to the menu, to help break it up into sections.

The menu class is smart enough not to display separators at the top or bottom of the menu, and it will replace multiple adjacent separators with a single one, so your code can be quite free and easy about adding these, and it'll always look ok.

◆ addSubMenu() [1/3]

void juce::PopupMenu::addSubMenu ( String  subMenuName,
PopupMenu  subMenu,
bool  isEnabled,
const Image iconToUse,
bool  isTicked = false,
int  itemResultID = 0
)

Appends a sub-menu with an icon.

If the menu that's passed in is empty, it will appear as an inactive item. If the itemResultID argument is non-zero, then the sub-menu item itself can be clicked to trigger it as a command.

◆ addSubMenu() [2/3]

void juce::PopupMenu::addSubMenu ( String  subMenuName,
PopupMenu  subMenu,
bool  isEnabled,
std::unique_ptr< Drawable iconToUse,
bool  isTicked = false,
int  itemResultID = 0
)

Appends a sub-menu with an icon.

If the menu that's passed in is empty, it will appear as an inactive item. If the itemResultID argument is non-zero, then the sub-menu item itself can be clicked to trigger it as a command.

The iconToUse parameter is a Drawable object to use as the icon to the left of the item. The menu will take ownership of this drawable object and will delete it later when no longer needed

◆ addSubMenu() [3/3]

void juce::PopupMenu::addSubMenu ( String  subMenuName,
PopupMenu  subMenu,
bool  isEnabled = true
)

Appends a sub-menu.

If the menu that's passed in is empty, it will appear as an inactive item. If the itemResultID argument is non-zero, then the sub-menu item itself can be clicked to trigger it as a command.

◆ clear()

void juce::PopupMenu::clear ( )

Resets the menu, removing all its items.

◆ containsAnyActiveItems()

bool juce::PopupMenu::containsAnyActiveItems ( ) const
noexcept

Returns true if the menu contains any items that can be used.

◆ containsCommandItem()

bool juce::PopupMenu::containsCommandItem ( int  commandID) const

Returns true if the menu contains a command item that triggers the given command.

◆ createWindow()

Component* juce::PopupMenu::createWindow ( const Options ,
ApplicationCommandManager **
) const
private

◆ dismissAllActiveMenus()

static bool juce::PopupMenu::dismissAllActiveMenus ( )
static

Closes any menus that are currently open.

This might be useful if you have a situation where your window is being closed by some means other than a user action, and you'd like to make sure that menus aren't left hanging around.

◆ getNumItems()

int juce::PopupMenu::getNumItems ( ) const
noexcept

Returns the number of items that the menu currently contains.

(This doesn't count separators).

◆ operator=() [1/2]

PopupMenu& juce::PopupMenu::operator= ( const PopupMenu )

Copies this menu from another one.

◆ operator=() [2/2]

PopupMenu& juce::PopupMenu::operator= ( PopupMenu &&  )
noexcept

Move assignment operator.

◆ setItem()

static void juce::PopupMenu::setItem ( CustomComponent ,
const Item
)
staticprivate

◆ setLookAndFeel()

void juce::PopupMenu::setLookAndFeel ( LookAndFeel newLookAndFeel)

Specifies a look-and-feel for the menu and any sub-menus that it has.

This can be called before show() if you need a customised menu. Be careful not to delete the LookAndFeel object before the menu has been deleted.

◆ show()

int juce::PopupMenu::show ( int  itemIDThatMustBeVisible = 0,
int  minimumWidth = 0,
int  maximumNumColumns = 0,
int  standardItemHeight = 0,
ModalComponentManager::Callback callback = nullptr
)

Displays the menu and waits for the user to pick something.

This will display the menu modally, and return the ID of the item that the user picks. If they click somewhere off the menu to get rid of it without choosing anything, this will return 0.

The current location of the mouse will be used as the position to show the menu - to explicitly set the menu's position, use showAt() instead. Depending on where this point is on the screen, the menu will appear above, below or to the side of the point.

Parameters
itemIDThatMustBeVisibleif you set this to the ID of one of the menu items, then when the menu first appears, it will make sure that this item is visible. So if the menu has too many items to fit on the screen, it will be scrolled to a position where this item is visible.
minimumWidtha minimum width for the menu, in pixels. It may be wider than this if some items are too long to fit.
maximumNumColumnsif there are too many items to fit on-screen in a single vertical column, the menu may be laid out as a series of columns - this is the maximum number allowed. To use the default value for this (probably about 7), you can pass in zero.
standardItemHeightif this is non-zero, it will be used as the standard height for menu items (apart from custom items)
callbackif this is not a nullptr, the menu will be launched asynchronously, returning immediately, and the callback will receive a call when the menu is either dismissed or has an item selected. This object will be owned and deleted by the system, so make sure that it works safely and that any pointers that it uses are safely within scope.
See also
showAt

◆ showAt() [1/2]

int juce::PopupMenu::showAt ( Component componentToAttachTo,
int  itemIDThatMustBeVisible = 0,
int  minimumWidth = 0,
int  maximumNumColumns = 0,
int  standardItemHeight = 0,
ModalComponentManager::Callback callback = nullptr
)

Displays the menu as if it's attached to a component such as a button.

This is similar to showAt(), but will position it next to the given component, e.g. so that the menu's edge is aligned with that of the component. This is intended for things like buttons that trigger a pop-up menu.

◆ showAt() [2/2]

int juce::PopupMenu::showAt ( Rectangle< int screenAreaToAttachTo,
int  itemIDThatMustBeVisible = 0,
int  minimumWidth = 0,
int  maximumNumColumns = 0,
int  standardItemHeight = 0,
ModalComponentManager::Callback callback = nullptr
)

Displays the menu at a specific location.

This is the same as show(), but uses a specific location (in global screen coordinates) rather than the current mouse position.

The screenAreaToAttachTo parameter indicates a screen area to which the menu will be adjacent. Depending on where this is, the menu will decide which edge to attach itself to, in order to fit itself fully on-screen. If you just want to trigger a menu at a specific point, you can pass in a rectangle of size (0, 0) with the position that you want.

See also
show()

◆ showMenu()

int juce::PopupMenu::showMenu ( const Options options)

Displays and runs the menu modally, with a set of options.

◆ showMenuAsync() [1/3]

void juce::PopupMenu::showMenuAsync ( const Options options)

Runs the menu asynchronously.

◆ showMenuAsync() [2/3]

void juce::PopupMenu::showMenuAsync ( const Options options,
ModalComponentManager::Callback callback
)

Runs the menu asynchronously, with a user-provided callback that will receive the result.

◆ showMenuAsync() [3/3]

void juce::PopupMenu::showMenuAsync ( const Options options,
std::function< void(int)>  callback
)

Runs the menu asynchronously, with a user-provided callback that will receive the result.

◆ showWithOptionalCallback()

int juce::PopupMenu::showWithOptionalCallback ( const Options ,
ModalComponentManager::Callback ,
bool
)
private

Friends And Related Function Documentation

◆ HelperClasses

friend struct HelperClasses
friend

◆ MenuBarComponent

friend class MenuBarComponent
friend

Member Data Documentation

◆ items

Array<Item> juce::PopupMenu::items
private

◆ lookAndFeel

WeakReference<LookAndFeel> juce::PopupMenu::lookAndFeel
private

The documentation for this class was generated from the following file:
juce::PopupMenu::PopupMenu
PopupMenu()=default
Creates an empty popup menu.
juce::gl::m
const GLfloat * m
Definition: juce_gl.h:6278
juce::gl::result
GLuint64EXT * result
Definition: juce_gl.h:10112
