juce::TextLayout::Line Class Reference

A line containing a sequence of glyph-runs. More...

#include <juce_TextLayout.h>

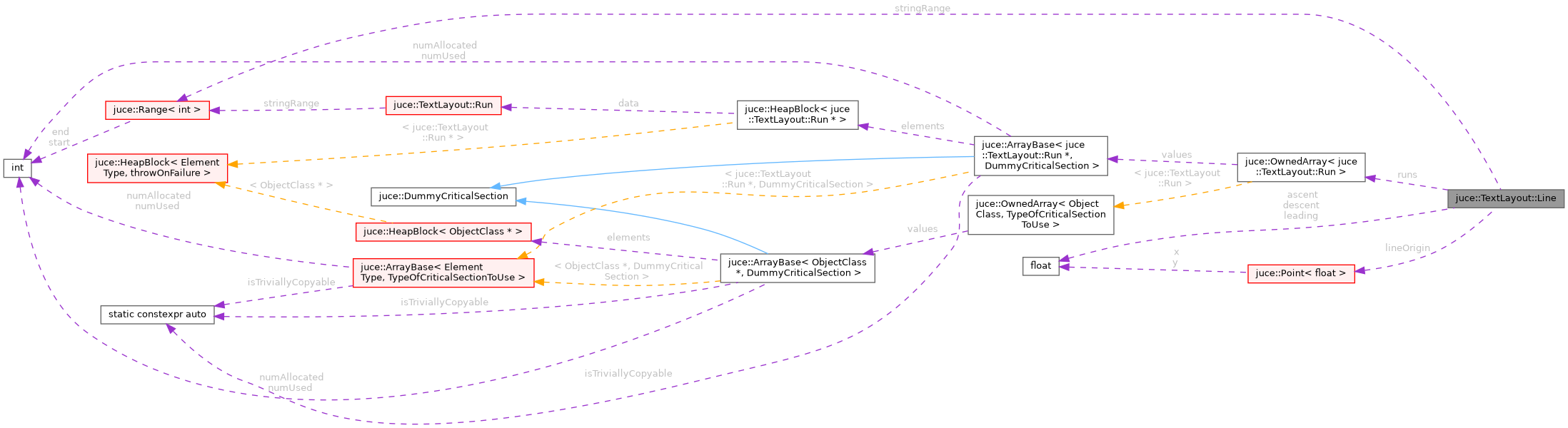

Collaboration diagram for juce::TextLayout::Line:

Public Member Functions
	Line ()=default
	Line (const Line &)
	Line (Line &&) noexcept=default
	Line (Range< int > stringRange, Point< float > lineOrigin, float ascent, float descent, float leading, int numRunsToPreallocate)
	~Line () noexcept=default
Rectangle< float >	getLineBounds () const noexcept
	Returns the smallest rectangle which contains all the glyphs in this line. More...
Range< float >	getLineBoundsX () const noexcept
	Returns the X position range which contains all the glyphs in this line. More...
Range< float >	getLineBoundsY () const noexcept
	Returns the Y position range which contains all the glyphs in this line. More...
Line &	operator= (const Line &)
Line &	operator= (Line &&) noexcept=default
void	swap (Line &other) noexcept

Public Attributes
float	ascent = 0.0f
float	descent = 0.0f
float	leading = 0.0f
Point< float >	lineOrigin
	The line's baseline origin. More...
OwnedArray< Run >	runs
	The glyph-runs in this line. More...
Range< int >	stringRange
	The character range that this line represents in the original string that was used to create it. More...

Detailed Description

A line containing a sequence of glyph-runs.

Constructor & Destructor Documentation

Line() [1/4]

juce::TextLayout::Line::Line ( )

default

Line() [2/4]

juce::TextLayout::Line::Line	(	Range< int >	stringRange,
		Point< float >	lineOrigin,
		float	ascent,
		float	descent,
		float	leading,
		int	numRunsToPreallocate
	)

Line() [3/4]

juce::TextLayout::Line::Line

(

const Line &

)

Line() [4/4]

juce::TextLayout::Line::Line ( Line &&  )

defaultnoexcept

~Line()

juce::TextLayout::Line::~Line ( )

defaultnoexcept

Member Function Documentation

getLineBounds()

Rectangle<float> juce::TextLayout::Line::getLineBounds ( ) const

noexcept

Returns the smallest rectangle which contains all the glyphs in this line.

getLineBoundsX()

Range<float> juce::TextLayout::Line::getLineBoundsX ( ) const

noexcept

Returns the X position range which contains all the glyphs in this line.

getLineBoundsY()

Range<float> juce::TextLayout::Line::getLineBoundsY ( ) const

noexcept

Returns the Y position range which contains all the glyphs in this line.

operator=() [1/2]

Line& juce::TextLayout::Line::operator=

(

const Line &

)

operator=() [2/2]

Line& juce::TextLayout::Line::operator= ( Line &&  )

defaultnoexcept

swap()

void juce::TextLayout::Line::swap ( Line &  other )

noexcept

Member Data Documentation

ascent

float juce::TextLayout::Line::ascent = 0.0f

descent

float juce::TextLayout::Line::descent = 0.0f

leading

float juce::TextLayout::Line::leading = 0.0f

lineOrigin

Point<float> juce::TextLayout::Line::lineOrigin

The line's baseline origin.

runs

OwnedArray<Run> juce::TextLayout::Line::runs

The glyph-runs in this line.

stringRange

Range<int> juce::TextLayout::Line::stringRange

The character range that this line represents in the original string that was used to create it.

---

The documentation for this class was generated from the following file:

• juce_TextLayout.h
