juce::TextLayout Class Reference

A Pre-formatted piece of text, which may contain multiple fonts and colours. More...

#include <juce_TextLayout.h>

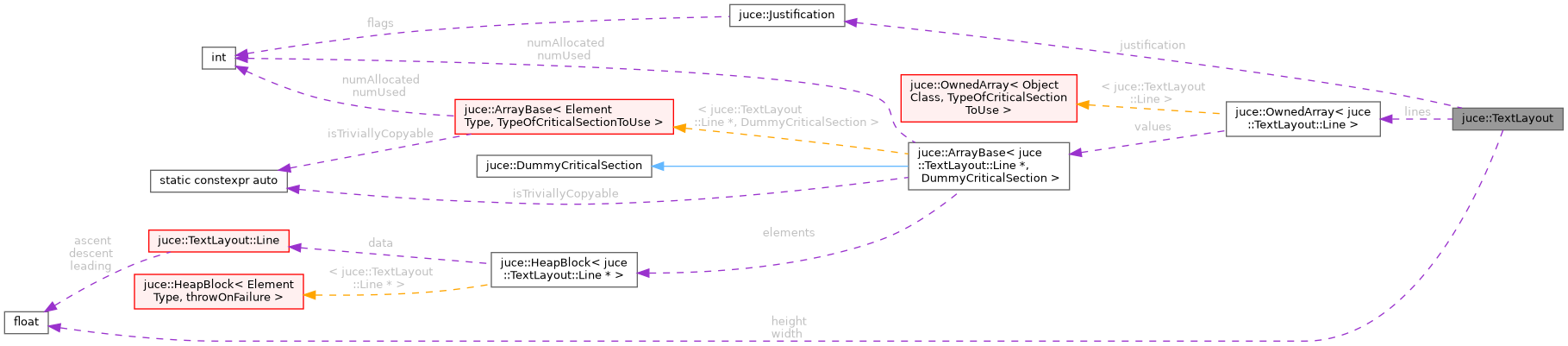

Collaboration diagram for juce::TextLayout:

Classes
class	DereferencingIterator
class	Glyph
	A positioned glyph. More...
class	Line
	A line containing a sequence of glyph-runs. More...
class	Run
	A sequence of glyphs with a common font and colour. More...

Public Types
using	const_iterator = DereferencingIterator< const Line *const * >
using	iterator = DereferencingIterator< Line *const * >

Public Member Functions
	TextLayout ()
	Creates an empty layout. More...
	TextLayout (const TextLayout &)
	TextLayout (TextLayout &&) noexcept
	~TextLayout ()
	Destructor. More...
void	addLine (std::unique_ptr< Line >)
	Adds a line to the layout. More...
iterator	begin ()
	Returns an iterator over the lines of content. More...
const_iterator	begin () const
const_iterator	cbegin () const
const_iterator	cend () const
void	createLayout (const AttributedString &, float maxWidth)
	Creates a layout from the given attributed string. More...
void	createLayout (const AttributedString &, float maxWidth, float maxHeight)
	Creates a layout from the given attributed string, given some size constraints. More...
void	createLayoutWithBalancedLineLengths (const AttributedString &, float maxWidth)
	Creates a layout, attempting to choose a width which results in lines of a similar length. More...
void	createLayoutWithBalancedLineLengths (const AttributedString &, float maxWidth, float maxHeight)
	Creates a layout, attempting to choose a width which results in lines of a similar length. More...
void	draw (Graphics &, Rectangle< float > area) const
	Draws the layout within the specified area. More...
iterator	end ()
	Returns an iterator over the lines of content. More...
const_iterator	end () const
void	ensureStorageAllocated (int numLinesNeeded)
	Pre-allocates space for the specified number of lines. More...
float	getHeight () const noexcept
	Returns the maximum height of the content. More...
Line &	getLine (int index) const noexcept
	Returns one of the lines. More...
int	getNumLines () const noexcept
	Returns the number of lines in the layout. More...
float	getWidth () const noexcept
	Returns the maximum width of the content. More...
TextLayout &	operator= (const TextLayout &)
TextLayout &	operator= (TextLayout &&) noexcept
void	recalculateSize ()
	If you modify the TextLayout after creating it, call this to compute the new dimensions of the content. More...

Private Member Functions
bool	createNativeLayout (const AttributedString &)
void	createStandardLayout (const AttributedString &)

Private Attributes
float	height
Justification	justification
OwnedArray< Line >	lines
float	width

Detailed Description

A Pre-formatted piece of text, which may contain multiple fonts and colours.

A TextLayout is created from an AttributedString, and once created can be quickly drawn into a Graphics context.

See also

AttributedString

@tags{Graphics}

Member Typedef Documentation

const_iterator

using juce::TextLayout::const_iterator = DereferencingIterator<const Line* const*>

iterator

using juce::TextLayout::iterator = DereferencingIterator< Line* const*>

Constructor & Destructor Documentation

TextLayout() [1/3]

juce::TextLayout::TextLayout

(

)

Creates an empty layout.

Having created a TextLayout, you can populate it using createLayout() or createLayoutWithBalancedLineLengths().

TextLayout() [2/3]

juce::TextLayout::TextLayout

(

const TextLayout &

)

TextLayout() [3/3]

juce::TextLayout::TextLayout ( TextLayout &&  )

noexcept

~TextLayout()

juce::TextLayout::~TextLayout

(

)

Destructor.

Member Function Documentation

addLine()

void juce::TextLayout::addLine

(

std::unique_ptr< Line >

)

Adds a line to the layout.

The layout will take ownership of this line object and will delete it when it is no longer needed.

begin() [1/2]

iterator juce::TextLayout::begin ( )

inline

Returns an iterator over the lines of content.

begin() [2/2]

const_iterator juce::TextLayout::begin ( ) const

inline

cbegin()

const_iterator juce::TextLayout::cbegin ( ) const

inline

cend()

const_iterator juce::TextLayout::cend ( ) const

inline

createLayout() [1/2]

void juce::TextLayout::createLayout	(	const AttributedString &	,
		float	maxWidth
	)

Creates a layout from the given attributed string.

This will replace any data that is currently stored in the layout.

createLayout() [2/2]

void juce::TextLayout::createLayout	(	const AttributedString &	,
		float	maxWidth,
		float	maxHeight
	)

Creates a layout from the given attributed string, given some size constraints.

This will replace any data that is currently stored in the layout.

createLayoutWithBalancedLineLengths() [1/2]

void juce::TextLayout::createLayoutWithBalancedLineLengths	(	const AttributedString &	,
		float	maxWidth
	)

Creates a layout, attempting to choose a width which results in lines of a similar length.

This will be slower than the normal createLayout method, but produces a tidier result.

createLayoutWithBalancedLineLengths() [2/2]

void juce::TextLayout::createLayoutWithBalancedLineLengths	(	const AttributedString &	,
		float	maxWidth,
		float	maxHeight
	)

Creates a layout, attempting to choose a width which results in lines of a similar length.

This will be slower than the normal createLayout method, but produces a tidier result.

createNativeLayout()

bool juce::TextLayout::createNativeLayout ( const AttributedString &  )

private

createStandardLayout()

void juce::TextLayout::createStandardLayout ( const AttributedString &  )

private

draw()

void juce::TextLayout::draw	(	Graphics &	,
		Rectangle< float >	area
	)		const

Draws the layout within the specified area.

The position of the text within the rectangle is controlled by the justification flags set in the original AttributedString that was used to create this layout.

end() [1/2]

iterator juce::TextLayout::end ( )

inline

Returns an iterator over the lines of content.

end() [2/2]

const_iterator juce::TextLayout::end ( ) const

inline

ensureStorageAllocated()

void juce::TextLayout::ensureStorageAllocated

(

int

numLinesNeeded

)

Pre-allocates space for the specified number of lines.

getHeight()

float juce::TextLayout::getHeight ( ) const

inlinenoexcept

Returns the maximum height of the content.

References juce::gl::height.

getLine()

Line& juce::TextLayout::getLine ( int  index ) const

noexcept

Returns one of the lines.

getNumLines()

int juce::TextLayout::getNumLines ( ) const

inlinenoexcept

Returns the number of lines in the layout.

getWidth()

float juce::TextLayout::getWidth ( ) const

inlinenoexcept

Returns the maximum width of the content.

References juce::gl::width.

operator=() [1/2]

TextLayout& juce::TextLayout::operator=

(

const TextLayout &

)

operator=() [2/2]

TextLayout& juce::TextLayout::operator= ( TextLayout &&  )

noexcept

recalculateSize()

void juce::TextLayout::recalculateSize

(

)

If you modify the TextLayout after creating it, call this to compute the new dimensions of the content.

Member Data Documentation

height

float juce::TextLayout::height

private

justification

Justification juce::TextLayout::justification

private

lines

OwnedArray<Line> juce::TextLayout::lines

private

width

float juce::TextLayout::width

private

---

The documentation for this class was generated from the following file:

• juce_TextLayout.h
