juce::ImagePixelData Class Reference

This is a base class for holding image data in implementation-specific ways. More...

#include <juce_Image.h>

Inheritance diagram for juce::ImagePixelData:

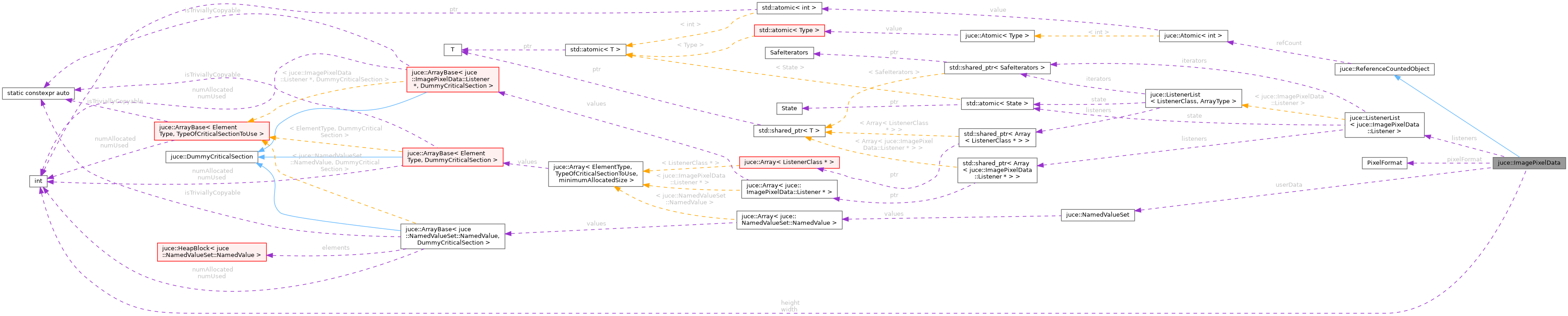

Collaboration diagram for juce::ImagePixelData:

Classes
struct	Listener
	Used to receive callbacks for image data changes. More...

Public Types
using	BackupExtensions = ImagePixelDataBackupExtensions
using	NativeExtensions = ImagePixelDataNativeExtensions
using	Ptr = ReferenceCountedObjectPtr< ImagePixelData >

Public Member Functions
	ImagePixelData (Image::PixelFormat, int width, int height)
	~ImagePixelData () override
void	applyGaussianBlurEffect (float radius)
virtual void	applyGaussianBlurEffectInArea (Rectangle< int > bounds, float radius)
	Applies a native blur effect to this image, if available.
void	applySingleChannelBoxBlurEffect (int radius)
virtual void	applySingleChannelBoxBlurEffectInArea (Rectangle< int > bounds, int radius)
	Applies a native blur effect to this image, if available.
virtual Ptr	clone ()=0
	Creates a copy of this image.
virtual std::unique_ptr< LowLevelGraphicsContext >	createLowLevelContext ()=0
	Creates a context that will draw into this image.
virtual std::unique_ptr< ImageType >	createType () const =0
	Creates an instance of the type of this image.
void	decReferenceCount () noexcept
	Decreases the object's reference count.
bool	decReferenceCountWithoutDeleting () noexcept
	Decreases the object's reference count.
void	desaturate ()
virtual void	desaturateInArea (Rectangle< int > bounds)
	Changes all the colours to be shades of grey, based on their current luminosity.
virtual BackupExtensions *	getBackupExtensions ()
	Returns a raw pointer to an instance of ImagePixelDataBackupExtensions if this ImagePixelData provides this extension, or nullptr otherwise.
virtual const BackupExtensions *	getBackupExtensions () const
virtual NativeExtensions	getNativeExtensions ()
int	getReferenceCount () const noexcept
	Returns the object's current reference count.
virtual int	getSharedCount () const noexcept
	Returns the number of Image objects which are currently referring to the same internal shared image data.
void	incReferenceCount () noexcept
	Increments the object's reference count.
virtual void	initialiseBitmapData (Image::BitmapData &, int x, int y, Image::BitmapData::ReadWriteMode)=0
	Initialises a BitmapData object.
void	moveImageSection (Point< int > destTopLeft, Rectangle< int > sourceRect)
	Copies a section of the image to somewhere else within itself.
void	multiplyAllAlphas (float amount)
virtual void	multiplyAllAlphasInArea (Rectangle< int > bounds, float amount)
	Multiples all alpha-channel values in the image by the specified amount.
void	sendDataChangeMessage ()

Public Attributes
const int	height
ListenerList< Listener >	listeners
const Image::PixelFormat	pixelFormat
	The pixel format of the image data.
NamedValueSet	userData
	User-defined settings that are attached to this image.
const int	width

Protected Member Functions
void	resetReferenceCount () noexcept
	Resets the reference count to zero without deleting the object.

Private Member Functions
virtual void	moveValidatedImageSection (Point< int > destTopLeft, Rectangle< int > sourceRect)

Private Attributes
Atomic< int >	refCount { 0 }

Detailed Description

This is a base class for holding image data in implementation-specific ways.

You may never need to use this class directly - it's used internally by the Image class to store the actual image data. To access pixel data directly, you should use Image::BitmapData rather than this class.

ImagePixelData objects are created indirectly, by subclasses of ImageType.

See also

Image, ImageType

@tags{Graphics}

Member Typedef Documentation

BackupExtensions

using juce::ImagePixelData::BackupExtensions = ImagePixelDataBackupExtensions

NativeExtensions

using juce::ImagePixelData::NativeExtensions = ImagePixelDataNativeExtensions

Ptr

using juce::ImagePixelData::Ptr = ReferenceCountedObjectPtr<ImagePixelData>

Constructor & Destructor Documentation

ImagePixelData()

juce::ImagePixelData::ImagePixelData	(	Image::PixelFormat	,
		int	width,
		int	height
	)

~ImagePixelData()

juce::ImagePixelData::~ImagePixelData ( )

override

Member Function Documentation

applyGaussianBlurEffect()

void juce::ImagePixelData::applyGaussianBlurEffect ( float  radius )

inline

See also

applyGaussianBlurEffectInArea()

applyGaussianBlurEffectInArea()

virtual void juce::ImagePixelData::applyGaussianBlurEffectInArea ( Rectangle< int >  bounds, float  radius  )

virtual

Applies a native blur effect to this image, if available.

This blur applies to all channels of the input image. It may be more expensive to calculate than a box blur, but should produce higher-quality results.

The default implementation will modify the image pixel-by-pixel on the CPU, which will be slow. Native image types may provide optimised implementations.

Reimplemented in juce::Direct2DPixelData.

applySingleChannelBoxBlurEffect()

void juce::ImagePixelData::applySingleChannelBoxBlurEffect ( int  radius )

inline

See also

applySingleChannelBoxBlurEffectInArea()

applySingleChannelBoxBlurEffectInArea()

virtual void juce::ImagePixelData::applySingleChannelBoxBlurEffectInArea ( Rectangle< int >  bounds, int  radius  )

virtual

Applies a native blur effect to this image, if available.

This is intended for blurring single-channel images, which is useful when rendering drop shadows. This is implemented as several box-blurs in series. The results should be visually similar to a Gaussian blur, but less accurate.

The default implementation will modify the image pixel-by-pixel on the CPU, which will be slow. Native image types may provide optimised implementations.

Reimplemented in juce::Direct2DPixelData.

clone()

virtual Ptr juce::ImagePixelData::clone ( )

pure virtual

Creates a copy of this image.

Implemented in juce::Direct2DPixelData.

createLowLevelContext()

virtual std::unique_ptr< LowLevelGraphicsContext > juce::ImagePixelData::createLowLevelContext ( )

pure virtual

Creates a context that will draw into this image.

Implemented in juce::Direct2DPixelData.

Referenced by juce::RenderingHelpers::SoftwareRendererSavedState::beginTransparencyLayer().

createType()

virtual std::unique_ptr< ImageType > juce::ImagePixelData::createType ( ) const

pure virtual

Creates an instance of the type of this image.

Implemented in juce::Direct2DPixelData.

decReferenceCount()

void juce::ReferenceCountedObject::decReferenceCount ( )

inlinenoexceptinherited

Decreases the object's reference count.

If the count gets to zero, the object will be deleted.

References jassert.

decReferenceCountWithoutDeleting()

bool juce::ReferenceCountedObject::decReferenceCountWithoutDeleting ( )

inlinenoexceptinherited

Decreases the object's reference count.

If the count gets to zero, the object will not be deleted, but this method will return true, allowing the caller to take care of deletion.

References jassert.

desaturate()

void juce::ImagePixelData::desaturate ( )

inline

See also

desaturateInArea()

desaturateInArea()

virtual void juce::ImagePixelData::desaturateInArea ( Rectangle< int >  bounds )

virtual

Changes all the colours to be shades of grey, based on their current luminosity.

The default implementation will modify the image pixel-by-pixel on the CPU, which will be slow. Native image types may provide optimised implementations.

Reimplemented in juce::Direct2DPixelData.

getBackupExtensions() [1/2]

virtual BackupExtensions * juce::ImagePixelData::getBackupExtensions ( )

inlinevirtual

Returns a raw pointer to an instance of ImagePixelDataBackupExtensions if this ImagePixelData provides this extension, or nullptr otherwise.

Reimplemented in juce::Direct2DPixelData.

getBackupExtensions() [2/2]

virtual const BackupExtensions * juce::ImagePixelData::getBackupExtensions ( ) const

inlinevirtual

Reimplemented in juce::Direct2DPixelData.

getNativeExtensions()

virtual NativeExtensions juce::ImagePixelData::getNativeExtensions ( )

virtual

intentionally not callable from user code

Reimplemented in juce::Direct2DPixelData.

getReferenceCount()

int juce::ReferenceCountedObject::getReferenceCount ( ) const

inlinenoexceptinherited

Returns the object's current reference count.

getSharedCount()

virtual int juce::ImagePixelData::getSharedCount ( ) const

virtualnoexcept

Returns the number of Image objects which are currently referring to the same internal shared image data.

This is different to the reference count as an instance of ImagePixelData can internally depend on another ImagePixelData via it's member variables.

incReferenceCount()

void juce::ReferenceCountedObject::incReferenceCount ( )

inlinenoexceptinherited

Increments the object's reference count.

This is done automatically by the smart pointer, but is public just in case it's needed for nefarious purposes.

initialiseBitmapData()

virtual void juce::ImagePixelData::initialiseBitmapData ( Image::BitmapData &  , int  x, int  y, Image::BitmapData::ReadWriteMode    )

pure virtual

Initialises a BitmapData object.

Implemented in juce::Direct2DPixelData.

moveImageSection()

void juce::ImagePixelData::moveImageSection	(	Point< int >	destTopLeft,
		Rectangle< int >	sourceRect
	)

Copies a section of the image to somewhere else within itself.

moveValidatedImageSection()

virtual void juce::ImagePixelData::moveValidatedImageSection ( Point< int >  destTopLeft, Rectangle< int >  sourceRect  )

privatevirtual

Reimplemented in juce::Direct2DPixelData.

multiplyAllAlphas()

void juce::ImagePixelData::multiplyAllAlphas ( float  amount )

inline

See also

multiplyAllAlphasInArea()

multiplyAllAlphasInArea()

virtual void juce::ImagePixelData::multiplyAllAlphasInArea ( Rectangle< int >  bounds, float  amount  )

virtual

Multiples all alpha-channel values in the image by the specified amount.

The default implementation will modify the image pixel-by-pixel on the CPU, which will be slow. Native image types may provide optimised implementations.

Reimplemented in juce::Direct2DPixelData.

resetReferenceCount()

void juce::ReferenceCountedObject::resetReferenceCount ( )

inlineprotectednoexceptinherited

Resets the reference count to zero without deleting the object.

You should probably never need to use this!

sendDataChangeMessage()

void juce::ImagePixelData::sendDataChangeMessage

(

)

Member Data Documentation

height

const int juce::ImagePixelData::height

listeners

ListenerList<Listener> juce::ImagePixelData::listeners

pixelFormat

const Image::PixelFormat juce::ImagePixelData::pixelFormat

The pixel format of the image data.

refCount

Atomic<int> juce::ReferenceCountedObject::refCount { 0 }

privateinherited

userData

NamedValueSet juce::ImagePixelData::userData

User-defined settings that are attached to this image.

See also

Image::getProperties().

width

const int juce::ImagePixelData::width

---

The documentation for this class was generated from the following file:

• juce_Image.h
