#include <juce_RenderingHelpers.h>

Inheritance diagram for juce::RenderingHelpers::SoftwareRendererSavedState:

[legend]

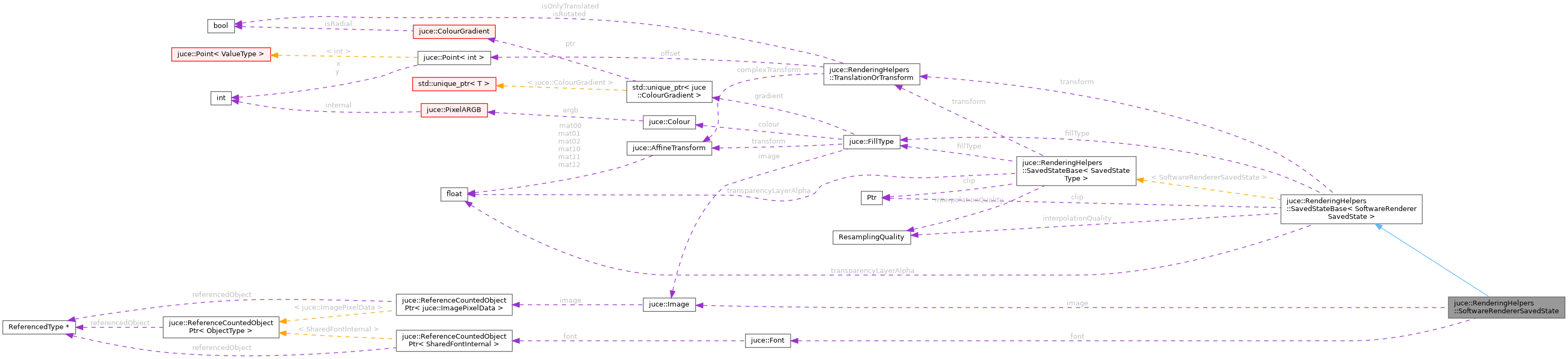

Collaboration diagram for juce::RenderingHelpers::SoftwareRendererSavedState:

[legend]

Public Types
using	BaseRegionType = typename ClipRegions::Base< SoftwareRendererSavedState >

using	EdgeTableRegionType = typename ClipRegions::EdgeTableRegion< SoftwareRendererSavedState >

using	RectangleListRegionType = typename ClipRegions::RectangleListRegion< SoftwareRendererSavedState >

Public Member Functions
	SoftwareRendererSavedState (const Image &im, const RectangleList< int > &clipList, Point< int > origin)

	SoftwareRendererSavedState (const Image &im, Rectangle< int > clipBounds)

	SoftwareRendererSavedState (const SoftwareRendererSavedState &other)=default

std::unique_ptr< SoftwareRendererSavedState >	beginTransparencyLayer (float opacity)

bool	clipRegionIntersects (Rectangle< int > r) const

void	clipToImageAlpha (const Image &sourceImage, const AffineTransform &t)

void	clipToPath (const Path &p, const AffineTransform &t)

bool	clipToRectangle (Rectangle< int > r)

bool	clipToRectangleList (const RectangleList< int > &r)

void	cloneClipIfMultiplyReferenced ()

void	drawImage (const Image &sourceImage, const AffineTransform &trans)

void	drawLine (Line< float > line)

void	endTransparencyLayer (SoftwareRendererSavedState &finishedLayerState)

bool	excludeClipRectangle (Rectangle< int > r)

void	fillEdgeTable (const EdgeTable &edgeTable, float x, int y)

void	fillPath (const Path &path, const AffineTransform &t)

void	fillRect (Rectangle< float > r)

void	fillRect (Rectangle< int > r, bool replaceContents)

void	fillRectAsPath (Rectangle< CoordType > r)

void	fillRectList (const RectangleList< float > &list)

void	fillShape (typename BaseRegionType::Ptr shapeToFill, bool replaceContents)

void	fillTargetRect (Rectangle< float > r)

void	fillTargetRect (Rectangle< int > r, bool replaceContents)

template<typename IteratorType >
void	fillWithGradient (IteratorType &iter, ColourGradient &gradient, const AffineTransform &trans, bool isIdentity) const

template<typename IteratorType >
void	fillWithSolidColour (IteratorType &iter, PixelARGB colour, bool replaceContents) const

Rectangle< int >	getClipBounds () const

Rectangle< int >	getMaximumBounds () const

SoftwareRendererSavedState &	getThis () noexcept

void	renderImage (const Image &sourceImage, const AffineTransform &trans, const BaseRegionType *tiledFillClipRegion)

template<typename IteratorType >
void	renderImageTransformed (IteratorType &iter, const Image &src, int alpha, const AffineTransform &trans, Graphics::ResamplingQuality quality, bool tiledFill) const

template<typename IteratorType >
void	renderImageUntransformed (IteratorType &iter, const Image &src, int alpha, int x, int y, bool tiledFill) const

void	setFillType (const FillType &newFill)

Static Public Member Functions
static void	clearGlyphCache ()

static bool	isOnlyTranslationAllowingError (const AffineTransform &t, float tolerance) noexcept

Public Attributes
BaseRegionType::Ptr	clip

FillType	fillType

Font	font { FontOptions{} }

Image	image

Graphics::ResamplingQuality	interpolationQuality

RenderingHelpers::TranslationOrTransform	transform

float	transparencyLayerAlpha

Private Types
using	BaseClass = SavedStateBase< SoftwareRendererSavedState >

Private Member Functions
SoftwareRendererSavedState &	operator= (const SoftwareRendererSavedState &)=delete

Member Typedef Documentation

◆ BaseClass

using juce::RenderingHelpers::SoftwareRendererSavedState::BaseClass = SavedStateBase<SoftwareRendererSavedState>

private

◆ BaseRegionType

using juce::RenderingHelpers::SavedStateBase< SoftwareRendererSavedState >::BaseRegionType = typename ClipRegions::Base<SoftwareRendererSavedState >

inherited

◆ EdgeTableRegionType

using juce::RenderingHelpers::SavedStateBase< SoftwareRendererSavedState >::EdgeTableRegionType = typename ClipRegions::EdgeTableRegion<SoftwareRendererSavedState >

inherited

◆ RectangleListRegionType

using juce::RenderingHelpers::SavedStateBase< SoftwareRendererSavedState >::RectangleListRegionType = typename ClipRegions::RectangleListRegion<SoftwareRendererSavedState >

inherited

Constructor & Destructor Documentation

◆ SoftwareRendererSavedState() [1/3]

juce::RenderingHelpers::SoftwareRendererSavedState::SoftwareRendererSavedState	(	const Image &	im,
		Rectangle< int >	clipBounds
	)

inline

◆ SoftwareRendererSavedState() [2/3]

juce::RenderingHelpers::SoftwareRendererSavedState::SoftwareRendererSavedState	(	const Image &	im,
		const RectangleList< int > &	clipList,
		Point< int >	origin
	)

inline

◆ SoftwareRendererSavedState() [3/3]

juce::RenderingHelpers::SoftwareRendererSavedState::SoftwareRendererSavedState ( const SoftwareRendererSavedState & other )

default

Member Function Documentation

◆ beginTransparencyLayer()

std::unique_ptr< SoftwareRendererSavedState > juce::RenderingHelpers::SoftwareRendererSavedState::beginTransparencyLayer ( float opacity )

inline

References juce::Image::ARGB, juce::RenderingHelpers::SavedStateBase< SoftwareRendererSavedState >::clip, juce::ImagePixelData::createLowLevelContext(), juce::Image::getPixelData(), and image.

◆ clearGlyphCache()

static void juce::RenderingHelpers::SoftwareRendererSavedState::clearGlyphCache ( )

inlinestatic

References juce::RenderingHelpers::GlyphCache::getInstance(), and juce::RenderingHelpers::GlyphCache::reset().

◆ clipRegionIntersects()

bool juce::RenderingHelpers::SavedStateBase< SoftwareRendererSavedState >::clipRegionIntersects ( Rectangle< int > r ) const

inlineinherited

◆ clipToImageAlpha()

void juce::RenderingHelpers::SavedStateBase< SoftwareRendererSavedState >::clipToImageAlpha	(	const Image &	sourceImage,
		const AffineTransform &	t
	)

inlineinherited

◆ clipToPath()

void juce::RenderingHelpers::SavedStateBase< SoftwareRendererSavedState >::clipToPath	(	const Path &	p,
		const AffineTransform &	t
	)

inlineinherited

◆ clipToRectangle()

bool juce::RenderingHelpers::SavedStateBase< SoftwareRendererSavedState >::clipToRectangle ( Rectangle< int > r )

inlineinherited

◆ clipToRectangleList()

bool juce::RenderingHelpers::SavedStateBase< SoftwareRendererSavedState >::clipToRectangleList ( const RectangleList< int > & r )

inlineinherited

◆ cloneClipIfMultiplyReferenced()

void juce::RenderingHelpers::SavedStateBase< SoftwareRendererSavedState >::cloneClipIfMultiplyReferenced ( )

inlineinherited

◆ drawImage()

void juce::RenderingHelpers::SavedStateBase< SoftwareRendererSavedState >::drawImage	(	const Image &	sourceImage,
		const AffineTransform &	trans
	)

inlineinherited

◆ drawLine()

void juce::RenderingHelpers::SavedStateBase< SoftwareRendererSavedState >::drawLine ( Line< float > line )

inlineinherited

◆ endTransparencyLayer()

void juce::RenderingHelpers::SoftwareRendererSavedState::endTransparencyLayer ( SoftwareRendererSavedState & finishedLayerState )

inline

References juce::RenderingHelpers::SavedStateBase< SoftwareRendererSavedState >::clip, juce::Image::createLowLevelContext(), image, juce::AffineTransform::translation(), and juce::RenderingHelpers::SavedStateBase< SavedStateType >::transparencyLayerAlpha.

◆ excludeClipRectangle()

bool juce::RenderingHelpers::SavedStateBase< SoftwareRendererSavedState >::excludeClipRectangle ( Rectangle< int > r )

inlineinherited

◆ fillEdgeTable()

void juce::RenderingHelpers::SavedStateBase< SoftwareRendererSavedState >::fillEdgeTable	(	const EdgeTable &	edgeTable,
		float	x,
		int	y
	)

inlineinherited

◆ fillPath()

void juce::RenderingHelpers::SavedStateBase< SoftwareRendererSavedState >::fillPath	(	const Path &	path,
		const AffineTransform &	t
	)

inlineinherited

◆ fillRect() [1/2]

void juce::RenderingHelpers::SavedStateBase< SoftwareRendererSavedState >::fillRect ( Rectangle< float > r )

inlineinherited

◆ fillRect() [2/2]

void juce::RenderingHelpers::SavedStateBase< SoftwareRendererSavedState >::fillRect	(	Rectangle< int >	r,
		bool	replaceContents
	)

inlineinherited

◆ fillRectAsPath()

void juce::RenderingHelpers::SavedStateBase< SoftwareRendererSavedState >::fillRectAsPath ( Rectangle< CoordType > r )

inlineinherited

◆ fillRectList()

void juce::RenderingHelpers::SavedStateBase< SoftwareRendererSavedState >::fillRectList ( const RectangleList< float > & list )

inlineinherited

◆ fillShape()

void juce::RenderingHelpers::SavedStateBase< SoftwareRendererSavedState >::fillShape	(	typename BaseRegionType::Ptr	shapeToFill,
		bool	replaceContents
	)

inlineinherited

◆ fillTargetRect() [1/2]

void juce::RenderingHelpers::SavedStateBase< SoftwareRendererSavedState >::fillTargetRect ( Rectangle< float > r )

inlineinherited

◆ fillTargetRect() [2/2]

void juce::RenderingHelpers::SavedStateBase< SoftwareRendererSavedState >::fillTargetRect	(	Rectangle< int >	r,
		bool	replaceContents
	)

inlineinherited

◆ fillWithGradient()

template<typename IteratorType >

void juce::RenderingHelpers::SoftwareRendererSavedState::fillWithGradient	(	IteratorType &	iter,
		ColourGradient &	gradient,
		const AffineTransform &	trans,
		bool	isIdentity
	)		const

inline

References juce::Image::ARGB, juce::ColourGradient::createLookupTable(), image, jassert, juce::Image::BitmapData::pixelFormat, juce::Image::BitmapData::readWrite, juce::RenderingHelpers::EdgeTableFillers::renderGradient(), juce::Image::RGB, juce::Image::SingleChannel, and juce::Image::UnknownFormat.

◆ fillWithSolidColour()

template<typename IteratorType >

void juce::RenderingHelpers::SoftwareRendererSavedState::fillWithSolidColour	(	IteratorType &	iter,
		PixelARGB	colour,
		bool	replaceContents
	)		const

inline

References juce::Image::ARGB, image, juce::Image::BitmapData::pixelFormat, juce::Image::BitmapData::readWrite, juce::RenderingHelpers::EdgeTableFillers::renderSolidFill(), juce::Image::RGB, juce::Image::SingleChannel, and juce::Image::UnknownFormat.

◆ getClipBounds()

Rectangle< int > juce::RenderingHelpers::SavedStateBase< SoftwareRendererSavedState >::getClipBounds ( ) const

inlineinherited

◆ getMaximumBounds()

Rectangle< int > juce::RenderingHelpers::SoftwareRendererSavedState::getMaximumBounds ( ) const

inline

References juce::Image::getBounds(), and image.

◆ getThis()

SoftwareRendererSavedState & juce::RenderingHelpers::SavedStateBase< SoftwareRendererSavedState >::getThis ( )

inlinenoexceptinherited

◆ isOnlyTranslationAllowingError()

static bool juce::RenderingHelpers::SavedStateBase< SoftwareRendererSavedState >::isOnlyTranslationAllowingError	(	const AffineTransform &	t,
		float	tolerance
	)

inlinestaticnoexceptinherited

◆ operator=()

SoftwareRendererSavedState & juce::RenderingHelpers::SoftwareRendererSavedState::operator= ( const SoftwareRendererSavedState & )

privatedelete

◆ renderImage()

void juce::RenderingHelpers::SavedStateBase< SoftwareRendererSavedState >::renderImage	(	const Image &	sourceImage,
		const AffineTransform &	trans,
		const BaseRegionType *	tiledFillClipRegion
	)

inlineinherited

◆ renderImageTransformed()

template<typename IteratorType >

void juce::RenderingHelpers::SoftwareRendererSavedState::renderImageTransformed	(	IteratorType &	iter,
		const Image &	src,
		int	alpha,
		const AffineTransform &	trans,
		Graphics::ResamplingQuality	quality,
		bool	tiledFill
	)		const

inline

References image, juce::Image::BitmapData::readOnly, juce::Image::BitmapData::readWrite, and juce::RenderingHelpers::EdgeTableFillers::renderImageTransformed().

◆ renderImageUntransformed()

template<typename IteratorType >

void juce::RenderingHelpers::SoftwareRendererSavedState::renderImageUntransformed	(	IteratorType &	iter,
		const Image &	src,
		int	alpha,
		int	x,
		int	y,
		bool	tiledFill
	)		const

inline

References image, juce::Image::BitmapData::readOnly, juce::Image::BitmapData::readWrite, and juce::RenderingHelpers::EdgeTableFillers::renderImageUntransformed().

◆ setFillType()

void juce::RenderingHelpers::SavedStateBase< SoftwareRendererSavedState >::setFillType ( const FillType & newFill )

inlineinherited

Member Data Documentation

◆ clip

BaseRegionType::Ptr juce::RenderingHelpers::SavedStateBase< SoftwareRendererSavedState >::clip

inherited

◆ fillType

FillType juce::RenderingHelpers::SavedStateBase< SoftwareRendererSavedState >::fillType

inherited

◆ font

Font juce::RenderingHelpers::SoftwareRendererSavedState::font { FontOptions{} }

◆ image

Image juce::RenderingHelpers::SoftwareRendererSavedState::image

Referenced by beginTransparencyLayer(), endTransparencyLayer(), fillWithGradient(), fillWithSolidColour(), getMaximumBounds(), renderImageTransformed(), and renderImageUntransformed().

◆ interpolationQuality

Graphics::ResamplingQuality juce::RenderingHelpers::SavedStateBase< SoftwareRendererSavedState >::interpolationQuality

inherited

◆ transform

RenderingHelpers::TranslationOrTransform juce::RenderingHelpers::SavedStateBase< SoftwareRendererSavedState >::transform

inherited

◆ transparencyLayerAlpha

float juce::RenderingHelpers::SavedStateBase< SoftwareRendererSavedState >::transparencyLayerAlpha

inherited

The documentation for this class was generated from the following file:

juce_RenderingHelpers.h
