juce::VBlankAnimatorUpdater Class Reference

Similar to AnimatorUpdater, but automatically calls update() whenever the screen refreshes. More...

#include <juce_VBlankAnimatorUpdater.h>

Inheritance diagram for juce::VBlankAnimatorUpdater:

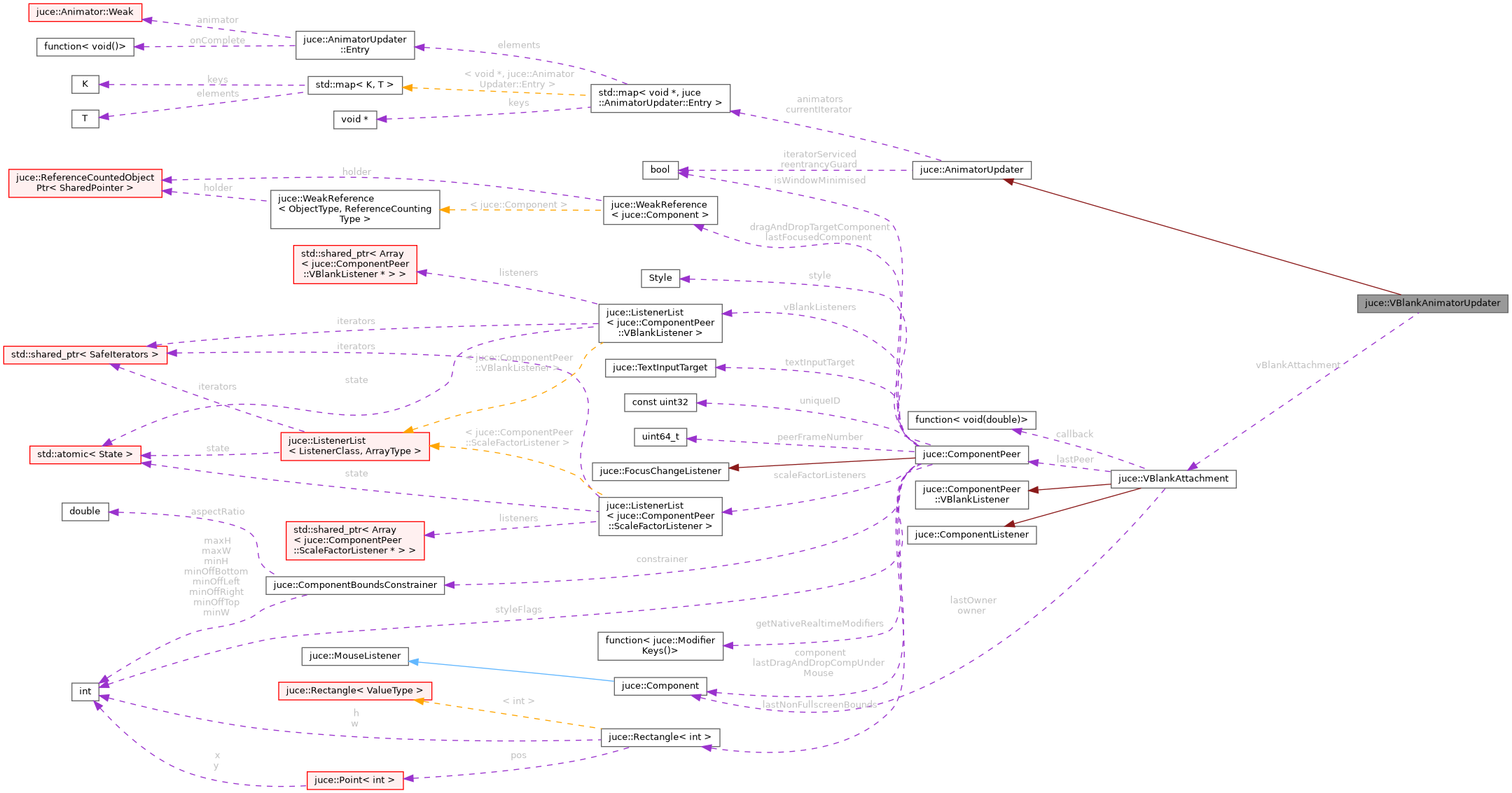

Collaboration diagram for juce::VBlankAnimatorUpdater:

Public Member Functions
	VBlankAnimatorUpdater (Component *c)
	Constructs a VBlankAnimatorUpdater that is synchronised to the refresh rate of the monitor that the provided Component is being displayed on.
void	addAnimator (const Animator &animator)
	Registers an Animator with the updater.
void	addAnimator (const Animator &animator, std::function< void()> onComplete)
	Registers an Animator with the updater and specifies a callback to be called upon the completion of the Animator.
void	removeAnimator (const Animator &animator)
	Removes an Animator.

Private Member Functions
void	update ()
	Calls Animator::update() for all registered Animators that are still alive.
void	update (double timestampMs)
	Calls Animator::update() for all registered Animators that are still alive.

Private Attributes
std::map< void *, Entry >	animators
std::map< void *, Entry >::iterator	currentIterator
bool	iteratorServiced = false
bool	reentrancyGuard = false
VBlankAttachment	vBlankAttachment

Detailed Description

Similar to AnimatorUpdater, but automatically calls update() whenever the screen refreshes.

@tags{Animations}

Constructor & Destructor Documentation

VBlankAnimatorUpdater()

juce::VBlankAnimatorUpdater::VBlankAnimatorUpdater ( Component *  c )

inlineexplicit

Constructs a VBlankAnimatorUpdater that is synchronised to the refresh rate of the monitor that the provided Component is being displayed on.

Member Function Documentation

addAnimator() [1/2]

void juce::AnimatorUpdater::addAnimator

(

const Animator &

animator

)

Registers an Animator with the updater.

addAnimator() [2/2]

void juce::AnimatorUpdater::addAnimator	(	const Animator &	animator,
		std::function< void()>	onComplete
	)

Registers an Animator with the updater and specifies a callback to be called upon the completion of the Animator.

This callback can be used for cleanup purposes e.g.

animatorUpdater.addAnimator (someComponentPtr->getAnimator(),
                             [&someComponentPtr] { someComponentPtr.reset(); });

removeAnimator()

void juce::AnimatorUpdater::removeAnimator

(

const Animator &

animator

)

Removes an Animator.

update() [1/2]

void juce::AnimatorUpdater::update ( )

inherited

Calls Animator::update() for all registered Animators that are still alive.

References to deleted Animators are removed.

Uses Time::getMillisecondCounterHiRes() to calculate the necessary timestamp. Consider using a VBlankAnimatorUpdater instead for using timestamps that are synchronised across all VBlankAnimatorUpdater instances.

update() [2/2]

void juce::AnimatorUpdater::update ( double  timestampMs )

inherited

Calls Animator::update() for all registered Animators that are still alive.

References to deleted Animators are removed.

The supplied timestamp should be monotonically increasing for correct behaviour. Ideally this should be a timestamp supplied by a VBlankAttachment. Consider using the VBlankAnimatorUpdater class, which takes care of supplying the right timestamp.

See also

VBlankAnimatorUpdater

Member Data Documentation

animators

std::map<void*, Entry> juce::AnimatorUpdater::animators

privateinherited

currentIterator

std::map<void*,Entry>::iterator juce::AnimatorUpdater::currentIterator

privateinherited

iteratorServiced

bool juce::AnimatorUpdater::iteratorServiced = false

privateinherited

reentrancyGuard

bool juce::AnimatorUpdater::reentrancyGuard = false

privateinherited

vBlankAttachment

VBlankAttachment juce::VBlankAnimatorUpdater::vBlankAttachment

private

---

The documentation for this class was generated from the following file:

• juce_VBlankAnimatorUpdater.h
