A lowest-common-denominator implementation of LowLevelGraphicsContext that does all its rendering in memory. More...

#include <juce_LowLevelGraphicsSoftwareRenderer.h>

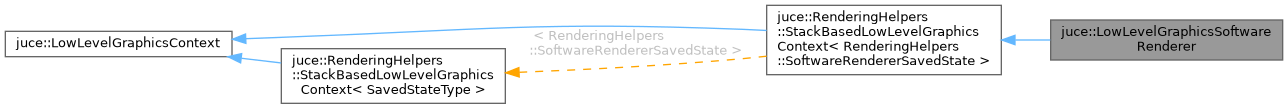

Inheritance diagram for juce::LowLevelGraphicsSoftwareRenderer:

[legend]

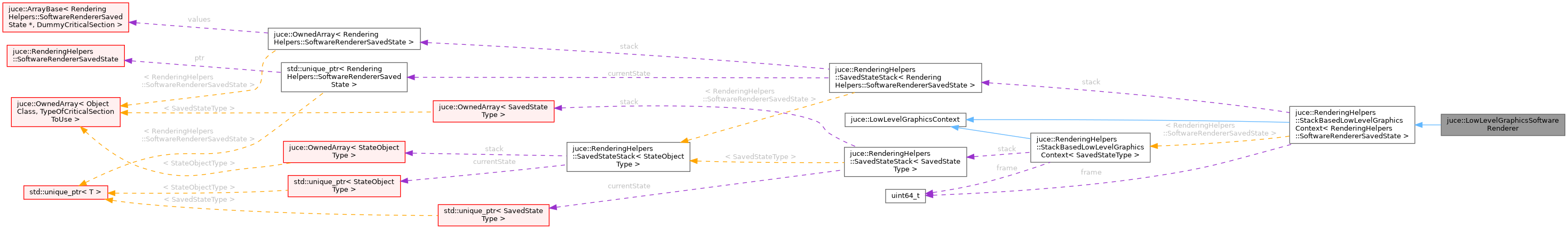

Collaboration diagram for juce::LowLevelGraphicsSoftwareRenderer:

[legend]

Public Member Functions
	LowLevelGraphicsSoftwareRenderer (const Image &imageToRenderOnto)
	Creates a context to render into an image.

	LowLevelGraphicsSoftwareRenderer (const Image &imageToRenderOnto, Point< int > origin, const RectangleList< int > &initialClip)
	Creates a context to render into a clipped subsection of an image.

	~LowLevelGraphicsSoftwareRenderer () override
	Destructor.

void	addTransform (const AffineTransform &t) override

void	beginTransparencyLayer (float opacity) override

bool	clipRegionIntersects (const Rectangle< int > &r) override

void	clipToImageAlpha (const Image &im, const AffineTransform &t) override

void	clipToPath (const Path &path, const AffineTransform &t) override

bool	clipToRectangle (const Rectangle< int > &r) override

bool	clipToRectangleList (const RectangleList< int > &r) override

virtual void	drawEllipse (const Rectangle< float > &area, float lineThickness)

void	drawGlyphs (Span< const uint16_t > glyphs, Span< const Point< float > > positions, const AffineTransform &t) override
	Uses the current font to draw the provided glyph numbers.

void	drawImage (const Image &im, const AffineTransform &t) override

void	drawLine (const Line< float > &line) override

virtual void	drawLineWithThickness (const Line< float > &line, float lineThickness)

virtual void	drawRect (const Rectangle< float > &rect, float lineThickness)

virtual void	drawRoundedRectangle (const Rectangle< float > &r, float cornerSize, float lineThickness)

void	endTransparencyLayer () override

void	excludeClipRectangle (const Rectangle< int > &r) override

virtual void	fillAll ()

virtual void	fillEllipse (const Rectangle< float > &area)

void	fillPath (const Path &path, const AffineTransform &t) override

void	fillRect (const Rectangle< float > &r) override

void	fillRect (const Rectangle< int > &r, bool replace) override

void	fillRectList (const RectangleList< float > &list) override

virtual void	fillRoundedRectangle (const Rectangle< float > &r, float cornerSize)

Rectangle< int >	getClipBounds () const override

const Font &	getFont () override

uint64_t	getFrameId () const override
	Returns an integer that uniquely identifies the current frame.

float	getPhysicalPixelScaleFactor () const override

std::unique_ptr< ImageType >	getPreferredImageTypeForTemporaryImages () const override
	Returns the optimal ImageType for creating temporary images in this GraphicsContext.

bool	isClipEmpty () const override

bool	isVectorDevice () const override
	Returns true if this device is vector-based, e.g.

void	restoreState () override

void	saveState () override

void	setFill (const FillType &fillType) override

void	setFont (const Font &newFont) override

void	setInterpolationQuality (Graphics::ResamplingQuality quality) override

void	setOpacity (float newOpacity) override

void	setOrigin (Point< int > o) override
	Moves the origin to a new position.

virtual void	strokePath (const Path &path, const PathStrokeType &strokeType, const AffineTransform &transform)

Protected Member Functions
void	drawGlyph (uint16_t i, const AffineTransform &t)

Protected Attributes
uint64_t	frame

RenderingHelpers::SavedStateStack< RenderingHelpers::SoftwareRendererSavedState >	stack

Detailed Description

A lowest-common-denominator implementation of LowLevelGraphicsContext that does all its rendering in memory.

User code is not supposed to create instances of this class directly - do all your rendering via the Graphics class instead.

@tags{Graphics}

Constructor & Destructor Documentation

◆ LowLevelGraphicsSoftwareRenderer() [1/2]

juce::LowLevelGraphicsSoftwareRenderer::LowLevelGraphicsSoftwareRenderer ( const Image & imageToRenderOnto )

Creates a context to render into an image.

◆ LowLevelGraphicsSoftwareRenderer() [2/2]

juce::LowLevelGraphicsSoftwareRenderer::LowLevelGraphicsSoftwareRenderer	(	const Image &	imageToRenderOnto,
		Point< int >	origin,
		const RectangleList< int > &	initialClip
	)

Creates a context to render into a clipped subsection of an image.

◆ ~LowLevelGraphicsSoftwareRenderer()

juce::LowLevelGraphicsSoftwareRenderer::~LowLevelGraphicsSoftwareRenderer ( )

override

Destructor.

Member Function Documentation

◆ addTransform()

void juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< RenderingHelpers::SoftwareRendererSavedState >::addTransform ( const AffineTransform & t )

inlineoverridevirtualinherited

Implements juce::LowLevelGraphicsContext.

◆ beginTransparencyLayer()

void juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< RenderingHelpers::SoftwareRendererSavedState >::beginTransparencyLayer ( float opacity )

inlineoverridevirtualinherited

Implements juce::LowLevelGraphicsContext.

◆ clipRegionIntersects()

bool juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< RenderingHelpers::SoftwareRendererSavedState >::clipRegionIntersects ( const Rectangle< int > & r )

inlineoverridevirtualinherited

Implements juce::LowLevelGraphicsContext.

◆ clipToImageAlpha()

void juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< RenderingHelpers::SoftwareRendererSavedState >::clipToImageAlpha	(	const Image &	im,
		const AffineTransform &	t
	)

inlineoverridevirtualinherited

Implements juce::LowLevelGraphicsContext.

◆ clipToPath()

void juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< RenderingHelpers::SoftwareRendererSavedState >::clipToPath	(	const Path &	path,
		const AffineTransform &	t
	)

inlineoverridevirtualinherited

Implements juce::LowLevelGraphicsContext.

◆ clipToRectangle()

bool juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< RenderingHelpers::SoftwareRendererSavedState >::clipToRectangle ( const Rectangle< int > & r )

inlineoverridevirtualinherited

Implements juce::LowLevelGraphicsContext.

◆ clipToRectangleList()

bool juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< RenderingHelpers::SoftwareRendererSavedState >::clipToRectangleList ( const RectangleList< int > & r )

inlineoverridevirtualinherited

Implements juce::LowLevelGraphicsContext.

◆ drawEllipse()

virtual void juce::LowLevelGraphicsContext::drawEllipse	(	const Rectangle< float > &	area,
		float	lineThickness
	)

inlinevirtualinherited

Reimplemented in juce::CoreGraphicsContext, and juce::Direct2DGraphicsContext.

References juce::approximatelyEqual(), juce::Rectangle< ValueType >::expanded(), juce::Rectangle< ValueType >::getHeight(), juce::Rectangle< ValueType >::getWidth(), and juce::Rectangle< ValueType >::reduced().

◆ drawGlyph()

void juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< RenderingHelpers::SoftwareRendererSavedState >::drawGlyph	(	uint16_t	i,
		const AffineTransform &	t
	)

inlineprotectedinherited

◆ drawGlyphs()

void juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< RenderingHelpers::SoftwareRendererSavedState >::drawGlyphs	(	Span< const uint16_t >	glyphs,
		Span< const Point< float > >	positions,
		const AffineTransform &	t
	)

inlineoverridevirtualinherited

Uses the current font to draw the provided glyph numbers.

Implements juce::LowLevelGraphicsContext.

◆ drawImage()

void juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< RenderingHelpers::SoftwareRendererSavedState >::drawImage	(	const Image &	im,
		const AffineTransform &	t
	)

inlineoverridevirtualinherited

Implements juce::LowLevelGraphicsContext.

◆ drawLine()

void juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< RenderingHelpers::SoftwareRendererSavedState >::drawLine ( const Line< float > & line )

inlineoverridevirtualinherited

Implements juce::LowLevelGraphicsContext.

◆ drawLineWithThickness()

virtual void juce::LowLevelGraphicsContext::drawLineWithThickness	(	const Line< float > &	line,
		float	lineThickness
	)

inlinevirtualinherited

Reimplemented in juce::Direct2DGraphicsContext, and juce::CoreGraphicsContext.

◆ drawRect()

virtual void juce::LowLevelGraphicsContext::drawRect	(	const Rectangle< float > &	rect,
		float	lineThickness
	)

inlinevirtualinherited

Reimplemented in juce::Direct2DGraphicsContext.

References juce::RectangleList< ValueType >::addWithoutMerging().

◆ drawRoundedRectangle()

virtual void juce::LowLevelGraphicsContext::drawRoundedRectangle	(	const Rectangle< float > &	r,
		float	cornerSize,
		float	lineThickness
	)

inlinevirtualinherited

Reimplemented in juce::Direct2DGraphicsContext, and juce::CoreGraphicsContext.

◆ endTransparencyLayer()

void juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< RenderingHelpers::SoftwareRendererSavedState >::endTransparencyLayer ( )

inlineoverridevirtualinherited

Implements juce::LowLevelGraphicsContext.

◆ excludeClipRectangle()

void juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< RenderingHelpers::SoftwareRendererSavedState >::excludeClipRectangle ( const Rectangle< int > & r )

inlineoverridevirtualinherited

Implements juce::LowLevelGraphicsContext.

◆ fillAll()

virtual void juce::LowLevelGraphicsContext::fillAll ( )

inlinevirtualinherited

Reimplemented in juce::CoreGraphicsContext.

◆ fillEllipse()

virtual void juce::LowLevelGraphicsContext::fillEllipse ( const Rectangle< float > & area )

inlinevirtualinherited

Reimplemented in juce::CoreGraphicsContext, and juce::Direct2DGraphicsContext.

◆ fillPath()

void juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< RenderingHelpers::SoftwareRendererSavedState >::fillPath	(	const Path &	path,
		const AffineTransform &	t
	)

inlineoverridevirtualinherited

Implements juce::LowLevelGraphicsContext.

◆ fillRect() [1/2]

void juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< RenderingHelpers::SoftwareRendererSavedState >::fillRect ( const Rectangle< float > & r )

inlineoverridevirtualinherited

Implements juce::LowLevelGraphicsContext.

◆ fillRect() [2/2]

void juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< RenderingHelpers::SoftwareRendererSavedState >::fillRect	(	const Rectangle< int > &	r,
		bool	replace
	)

inlineoverridevirtualinherited

Implements juce::LowLevelGraphicsContext.

◆ fillRectList()

void juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< RenderingHelpers::SoftwareRendererSavedState >::fillRectList ( const RectangleList< float > & list )

inlineoverridevirtualinherited

Implements juce::LowLevelGraphicsContext.

◆ fillRoundedRectangle()

virtual void juce::LowLevelGraphicsContext::fillRoundedRectangle	(	const Rectangle< float > &	r,
		float	cornerSize
	)

inlinevirtualinherited

Reimplemented in juce::Direct2DGraphicsContext, and juce::CoreGraphicsContext.

◆ getClipBounds()

Rectangle< int > juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< RenderingHelpers::SoftwareRendererSavedState >::getClipBounds ( ) const

inlineoverridevirtualinherited

Implements juce::LowLevelGraphicsContext.

◆ getFont()

const Font & juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< RenderingHelpers::SoftwareRendererSavedState >::getFont ( )

inlineoverridevirtualinherited

Implements juce::LowLevelGraphicsContext.

◆ getFrameId()

uint64_t juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< RenderingHelpers::SoftwareRendererSavedState >::getFrameId ( ) const

inlineoverridevirtualinherited

Returns an integer that uniquely identifies the current frame.

Useful for debugging/logging.

Implements juce::LowLevelGraphicsContext.

◆ getPhysicalPixelScaleFactor()

float juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< RenderingHelpers::SoftwareRendererSavedState >::getPhysicalPixelScaleFactor ( ) const

inlineoverridevirtualinherited

Implements juce::LowLevelGraphicsContext.

◆ getPreferredImageTypeForTemporaryImages()

std::unique_ptr< ImageType > juce::LowLevelGraphicsSoftwareRenderer::getPreferredImageTypeForTemporaryImages ( ) const

inlineoverridevirtual

Returns the optimal ImageType for creating temporary images in this GraphicsContext.

While this typically matches the GraphicsContext's native ImageType, certain scenarios may benefit from using a different format for temporary operations (e.g., for performance, memory efficiency, or specific rendering requirements).

Returns: A unique_ptr to the recommended ImageType instance for temporary images

Implements juce::LowLevelGraphicsContext.

◆ isClipEmpty()

bool juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< RenderingHelpers::SoftwareRendererSavedState >::isClipEmpty ( ) const

inlineoverridevirtualinherited

Implements juce::LowLevelGraphicsContext.

◆ isVectorDevice()

bool juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< RenderingHelpers::SoftwareRendererSavedState >::isVectorDevice ( ) const

inlineoverridevirtualinherited

Returns true if this device is vector-based, e.g.

a printer.

Implements juce::LowLevelGraphicsContext.

◆ restoreState()

void juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< RenderingHelpers::SoftwareRendererSavedState >::restoreState ( )

inlineoverridevirtualinherited

Implements juce::LowLevelGraphicsContext.

◆ saveState()

void juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< RenderingHelpers::SoftwareRendererSavedState >::saveState ( )

inlineoverridevirtualinherited

Implements juce::LowLevelGraphicsContext.

◆ setFill()

void juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< RenderingHelpers::SoftwareRendererSavedState >::setFill ( const FillType & fillType )

inlineoverridevirtualinherited

Implements juce::LowLevelGraphicsContext.

◆ setFont()

void juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< RenderingHelpers::SoftwareRendererSavedState >::setFont ( const Font & newFont )

inlineoverridevirtualinherited

Implements juce::LowLevelGraphicsContext.

◆ setInterpolationQuality()

void juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< RenderingHelpers::SoftwareRendererSavedState >::setInterpolationQuality ( Graphics::ResamplingQuality quality )

inlineoverridevirtualinherited

Implements juce::LowLevelGraphicsContext.

◆ setOpacity()

void juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< RenderingHelpers::SoftwareRendererSavedState >::setOpacity ( float newOpacity )

inlineoverridevirtualinherited

Implements juce::LowLevelGraphicsContext.

◆ setOrigin()

void juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< RenderingHelpers::SoftwareRendererSavedState >::setOrigin ( Point< int > o )

inlineoverridevirtualinherited

Moves the origin to a new position.

The coordinates are relative to the current origin, and indicate the new position of (0, 0).

Implements juce::LowLevelGraphicsContext.

◆ strokePath()

virtual void juce::LowLevelGraphicsContext::strokePath	(	const Path &	path,
		const PathStrokeType &	strokeType,
		const AffineTransform &	transform
	)

inlinevirtualinherited

Reimplemented in juce::Direct2DGraphicsContext, and juce::CoreGraphicsContext.

References juce::PathStrokeType::createStrokedPath().

Member Data Documentation

◆ frame

uint64_t juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< RenderingHelpers::SoftwareRendererSavedState >::frame

protectedinherited

◆ stack

RenderingHelpers::SavedStateStack<RenderingHelpers::SoftwareRendererSavedState > juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< RenderingHelpers::SoftwareRendererSavedState >::stack

protectedinherited

The documentation for this class was generated from the following file:

juce_LowLevelGraphicsSoftwareRenderer.h

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ LowLevelGraphicsSoftwareRenderer() [1/2]

◆ LowLevelGraphicsSoftwareRenderer() [2/2]

◆ ~LowLevelGraphicsSoftwareRenderer()

Member Function Documentation

◆ addTransform()

◆ beginTransparencyLayer()

◆ clipRegionIntersects()

◆ clipToImageAlpha()

◆ clipToPath()

◆ clipToRectangle()

◆ clipToRectangleList()

◆ drawEllipse()

◆ drawGlyph()

◆ drawGlyphs()

◆ drawImage()

◆ drawLine()

◆ drawLineWithThickness()

◆ drawRect()

◆ drawRoundedRectangle()

◆ endTransparencyLayer()

◆ excludeClipRectangle()

◆ fillAll()

◆ fillEllipse()

◆ fillPath()

◆ fillRect() [1/2]

◆ fillRect() [2/2]

◆ fillRectList()

◆ fillRoundedRectangle()

◆ getClipBounds()

◆ getFont()

◆ getFrameId()

◆ getPhysicalPixelScaleFactor()

◆ getPreferredImageTypeForTemporaryImages()

◆ isClipEmpty()

◆ isVectorDevice()

◆ restoreState()

◆ saveState()

◆ setFill()

◆ setFont()

◆ setInterpolationQuality()

◆ setOpacity()

◆ setOrigin()

◆ strokePath()

Member Data Documentation

◆ frame

◆ stack
