HPS::AnchorShapeElement Class Reference

The AnchorShapeElement class is a user space object. More...

#include <hps.h>

Inheritance diagram for HPS::AnchorShapeElement:

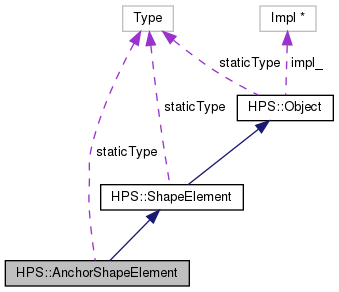

Collaboration diagram for HPS::AnchorShapeElement:

Public Member Functions
	AnchorShapeElement ()
	The default constructor creates an empty AnchorShapeElement object. More...
	AnchorShapeElement (ShapeElement const &in_that)
	This constructor creates a AnchorShapeElement object that contains the same settings as the source ShapeElement. More...
	AnchorShapeElement (AnchorShapeElement const &in_that)
	The copy constructor creates a AnchorShapeElement AnchorShapeElement object that contains the same settings as the source AnchorShapeElement. More...
	AnchorShapeElement (ShapePoint const &in_anchor_point)
	This constructor creates a AnchorShapeElement with the specified anchor point. More...
	AnchorShapeElement (ShapePoint const &in_anchor_point, ShapePointArray const &in_intermediate_points, bool in_connection)
	This constructor creates a AnchorShapeElement with the specified parameters. More...
	AnchorShapeElement (AnchorShapeElement &&in_that)
	The move constructor creates a AnchorShapeElement by transferring the underlying impl of the rvalue reference to this AnchorShapeElement thereby avoiding a copy and allocation. More...
AnchorShapeElement &	operator= (AnchorShapeElement &&in_that)
	The move assignment operator transfers the underlying impl of the rvalue reference to this AnchorShapeElement thereby avoiding a copy. More...
	~AnchorShapeElement ()
HPS::Type	ObjectType () const
AnchorShapeElement &	SetAnchor (ShapePoint const &in_anchor)
	Sets the anchor point for this AnchorShapeElement. More...
bool	ShowAnchor (ShapePoint &out_anchor) const
	Shows the anchor for this AnchorShapeElement. More...
AnchorShapeElement &	SetIntermediatePoints (ShapePointArray const &in_intermediate_points)
	Sets the intermediate points for this AnchorShapeElement. More...
bool	ShowIntermediatePoints (ShapePointArray &out_intermediate_points) const
	Shows the intermediate points for this AnchorShapeElement. More...
AnchorShapeElement &	UnsetIntermediatePoints ()
	Unsets the intermediate points for this AnchorShapeElement. More...
AnchorShapeElement &	SetConnection (bool in_connection)
	Sets the connection setting for this AnchorShapeElement. More...
bool	ShowConnection (bool &out_connection) const
	Shows the connection setting for this AnchorShapeElement. More...
AnchorShapeElement &	UnsetConnection ()
	Unsets the connection setting for this AnchorShapeElement. More...
void	Set (ShapeElement const &in_that)
	Copies the source ShapeElement into this ShapeElement. More...
bool	Equals (ShapeElement const &in_that) const
	Check if the source ShapeElement is equivalent to this ShapeElement. More...
bool	operator== (ShapeElement const &in_that) const
	Check if the source ShapeElement is equivalent to this ShapeElement. More...
bool	operator!= (ShapeElement const &in_that) const
	Check if the source ShapeElement is not equivalent to this ShapeElement. More...
ShapeElement &	SetDisjointed (bool in_state)
	Sets the disjointed state for this ShapeElement. More...
bool	ShowDisjointed (bool &out_state) const
	Shows the disjointed state for this ShapeElement. More...
ShapeElement &	SetFill (bool in_state)
	Sets the fill mode for this ShapeElement. More...
bool	ShowFill (bool &out_state) const
	Shows the fill mode for this ShapeElement. More...
virtual HPS::Type	Type () const
	This function returns the true type of the underlying object. More...
virtual bool	Empty () const
	Indicates whether this object has any values set on it. More...
virtual void	Reset ()
	Resets this object to its initial, uninitialized state. More...
bool	HasType (HPS::Type in_mask) const
	This function indicates whether this Object has the given Type mask. More...
intptr_t	GetClassID () const
	Returns a unique identifier that is shared by all objects of the same class. More...
intptr_t	GetInstanceID () const
	Returns an identifier that can be used to identify which instance of a class an object is. More...

Static Public Member Functions
template<typename T >
static intptr_t	ClassID ()
	Unique identifier for this class. More...

Static Public Attributes
static const HPS::Type	staticType = HPS::Type::AnchorShapeElement

Detailed Description

The AnchorShapeElement class is a user space object.

It is used to define anchor elements to make up shapes for text backgrounds. Anchor points are point to which text leader lines connect. If no anchor elements are defined, all ShapePoints used to construct the shape will be used as anchor points. If at least one anchor point is defined, only explicitly defined anchor points will be used.

Constructor & Destructor Documentation

AnchorShapeElement() [1/6]

HPS::AnchorShapeElement::AnchorShapeElement

(

)

The default constructor creates an empty AnchorShapeElement object.

AnchorShapeElement() [2/6]

HPS::AnchorShapeElement::AnchorShapeElement

(

ShapeElement const &

in_that

)

This constructor creates a AnchorShapeElement object that contains the same settings as the source ShapeElement.

The copy will only be successful if the source shape element is really an upcast of an anchor shape element. Otherwise the copy will fail and the resulting AnchorShapeElement will be invalid.

Parameters

in_that

The source ShapeElement to copy.

AnchorShapeElement() [3/6]

HPS::AnchorShapeElement::AnchorShapeElement

(

AnchorShapeElement const &

in_that

)

The copy constructor creates a AnchorShapeElement AnchorShapeElement object that contains the same settings as the source AnchorShapeElement.

Parameters

in_that

The source CircleShapeElement to copy.

AnchorShapeElement() [4/6]

HPS::AnchorShapeElement::AnchorShapeElement ( ShapePoint const &  in_anchor_point )

explicit

This constructor creates a AnchorShapeElement with the specified anchor point.

Parameters

in_anchor_point

The anchor point.

AnchorShapeElement() [5/6]

HPS::AnchorShapeElement::AnchorShapeElement ( ShapePoint const &  in_anchor_point, ShapePointArray const &  in_intermediate_points, bool  in_connection  )

explicit

This constructor creates a AnchorShapeElement with the specified parameters.

Parameters

in_anchor_point	The anchor point.
in_intermediate_points	Intermediate points between the leader line and the anchor point
in_connection	Whether the first intermediate point is connected to the anchor point by a line.

AnchorShapeElement() [6/6]

HPS::AnchorShapeElement::AnchorShapeElement

(

AnchorShapeElement &&

in_that

)

The move constructor creates a AnchorShapeElement by transferring the underlying impl of the rvalue reference to this AnchorShapeElement thereby avoiding a copy and allocation.

Parameters

in_that

An rvalue reference to a AnchorShapeElement to take the impl from.

~AnchorShapeElement()

HPS::AnchorShapeElement::~AnchorShapeElement

(

)

Member Function Documentation

ClassID()

template<typename T >

static intptr_t HPS::Object::ClassID ( )

inlinestaticinherited

Unique identifier for this class.

Note: this method uses construction of static objects. If used in a constructor, it should be used in the body not the initializer list.

Empty()

virtual bool HPS::Object::Empty ( ) const

inlinevirtualinherited

Indicates whether this object has any values set on it.

Returns

true if no values are set on this object, false otherwise.

Reimplemented in HPS::STL::ImportResultsKit, HPS::STL::ImportOptionsKit, HPS::OBJ::ImportResultsKit, HPS::OBJ::ImportOptionsKit, HPS::Hardcopy::File::ExportOptionsKit, HPS::Stream::ExportOptionsKit, HPS::Stream::ImportResultsKit, HPS::Stream::ImportOptionsKit, HPS::PointCloud::ImportOptionsKit, HPS::PointCloud::ImportResultsKit, HPS::UpdateOptionsKit, HPS::HighlightSearchOptionsKit, HPS::HighlightOptionsKit, HPS::SelectionOptionsKit, HPS::SearchOptionsKit, HPS::CutGeometryGatheringOptionsKit, HPS::ShapeKit, HPS::ShaderKit, HPS::Shader::ImportOptionsKit, HPS::ImageKit, HPS::Image::ImportOptionsKit, HPS::Image::ExportOptionsKit, HPS::TextureOptionsKit, HPS::LinePatternKit, HPS::LinePatternParallelKit, HPS::LinePatternOptionsKit, HPS::GlyphKit, HPS::ApplicationWindowOptionsKit, HPS::OffScreenWindowOptionsKit, HPS::StandAloneWindowOptionsKit, HPS::GridKit, HPS::PolygonKit, HPS::MeshKit, HPS::ShellKit, HPS::ShellRelationResultsKit, HPS::ShellRelationOptionsKit, HPS::ShellOptimizationOptionsKit, HPS::TextKit, HPS::EllipticalArcKit, HPS::EllipseKit, HPS::TrimKit, HPS::NURBSSurfaceKit, HPS::NURBSCurveKit, HPS::SpotlightKit, HPS::InfiniteLineKit, HPS::CuttingSectionKit, HPS::CircularWedgeKit, HPS::CircularArcKit, HPS::CircleKit, HPS::SphereKit, HPS::CylinderKit, HPS::DistantLightKit, HPS::MarkerKit, HPS::LineKit, HPS::AttributeLockKit, HPS::FontInfoState, HPS::WindowInfoKit, HPS::DebuggingKit, HPS::SubwindowKit, HPS::ContourLineKit, HPS::VisualEffectsKit, HPS::TransformMaskKit, HPS::PostProcessEffectsKit, HPS::DrawingAttributeKit, HPS::HiddenLineAttributeKit, HPS::PerformanceKit, HPS::NURBSSurfaceAttributeKit, HPS::MaterialKit, HPS::MaterialMappingKit, HPS::MatrixKit, HPS::CurveAttributeKit, HPS::EdgeAttributeKit, HPS::LineAttributeKit, HPS::TextAttributeKit, HPS::CuttingSectionAttributeKit, HPS::CylinderAttributeKit, HPS::LightingAttributeKit, HPS::SphereAttributeKit, HPS::MarkerAttributeKit, HPS::CullingKit, HPS::ColorInterpolationKit, HPS::TransparencyKit, HPS::SelectabilityKit, HPS::CameraKit, HPS::VisibilityKit, HPS::BoundingKit, HPS::SegmentOptimizationOptionsKit, HPS::Publish::ExportOptionsKit, HPS::Publish::TextFieldKit, HPS::Publish::SignatureFieldKit, HPS::Publish::DropDownListKit, HPS::Exchange::TessellationOptionsKit, HPS::Publish::ListBoxKit, HPS::Exchange::ExportSTEPOptionsKit, HPS::Exchange::ExportParasolidOptionsKit, HPS::Publish::RadioButtonKit, HPS::Exchange::ExportIGESOptionsKit, HPS::Exchange::ExportXMLOptionsKit, HPS::Publish::CheckBoxKit, HPS::Exchange::ExportU3DOptionsKit, HPS::Exchange::ExportSTLOptionsKit, HPS::Publish::ButtonKit, HPS::Exchange::ExportPRCOptionsKit, HPS::Publish::LinkKit, HPS::Exchange::ExportJTOptionsKit, HPS::Publish::SlideTableKit, HPS::Exchange::ExportACISOptionsKit, HPS::Publish::TableKit, HPS::Exchange::Export3MFOptionsKit, HPS::Publish::ImageKit, HPS::Publish::TextKit, HPS::Exchange::ModelFileImportOptionsKit, HPS::Publish::ViewKit, HPS::Exchange::TranslationOptionsKit, HPS::Publish::ArtworkKit, HPS::Publish::AnnotationKit, HPS::ComponentPath, HPS::Exchange::ImportOptionsKit, HPS::Parasolid::ExportOptionsKit, HPS::Exchange::NURBSConversionOptionsKit, HPS::Parasolid::LineTessellationKit, HPS::Exchange::Configuration, HPS::Publish::PageKit, HPS::Parasolid::FacetTessellationKit, HPS::Publish::DocumentKit, HPS::Parasolid::ImportOptionsKit, HPS::DWG::ImportOptionsKit, HPS::OOC::ImportOptionsKit, HPS::Sketchup::ImportOptionsKit, and HPS::Sketchup::ImportResultsKit.

Equals()

bool HPS::ShapeElement::Equals ( ShapeElement const &  in_that ) const

inherited

Check if the source ShapeElement is equivalent to this ShapeElement.

Parameters

in_that

The source ShapeElement to compare to this ShapeElement.

Returns

true if the objects are equivalent, false otherwise.

GetClassID()

intptr_t HPS::Object::GetClassID ( ) const

inherited

Returns a unique identifier that is shared by all objects of the same class.

Returns

A unique value shared by all objects of the same class.

GetInstanceID()

intptr_t HPS::Object::GetInstanceID ( ) const

inherited

Returns an identifier that can be used to identify which instance of a class an object is.

Different keys and controls will return the same value if they are backed by the same database resource.

Returns

A value unique to an instance of an object and all objects that are backed by the same database resource.

HasType()

bool HPS::Object::HasType ( HPS::Type  in_mask ) const

inherited

This function indicates whether this Object has the given Type mask.

Parameters

in_mask

The Type mask to check against this Object.

Returns

true if this Object has the given Type mask, false otherwise.

ObjectType()

HPS::Type HPS::AnchorShapeElement::ObjectType ( ) const

inlinevirtual

Reimplemented from HPS::ShapeElement.

operator!=()

bool HPS::ShapeElement::operator!= ( ShapeElement const &  in_that ) const

inherited

Check if the source ShapeElement is not equivalent to this ShapeElement.

Parameters

in_that

The source ShapeElement to compare to this ShapeElement.

Returns

true if the objects are not equivalent, false otherwise.

operator=()

AnchorShapeElement& HPS::AnchorShapeElement::operator=

(

AnchorShapeElement &&

in_that

)

The move assignment operator transfers the underlying impl of the rvalue reference to this AnchorShapeElement thereby avoiding a copy.

Parameters

in_that

An rvalue reference to a AnchorShapeElement to take the impl from.

Returns

A reference to this AnchorShapeElement.

operator==()

bool HPS::ShapeElement::operator== ( ShapeElement const &  in_that ) const

inherited

Check if the source ShapeElement is equivalent to this ShapeElement.

Parameters

in_that

The source ShapeElement to compare to this ShapeElement.

Returns

true if the objects are equivalent, false otherwise.

Reset()

virtual void HPS::Object::Reset ( )

virtualinherited

Resets this object to its initial, uninitialized state.

Reimplemented in HPS::EventHandler, HPS::EventDispatcher, HPS::World, HPS::HighlightSearchResults, HPS::HighlightSearchResultsIterator, HPS::SelectionResults, HPS::SelectionResultsIterator, HPS::FontSearchResults, HPS::FontSearchResultsIterator, HPS::SearchResults, and HPS::SearchResultsIterator.

Set()

void HPS::ShapeElement::Set ( ShapeElement const &  in_that )

inherited

Copies the source ShapeElement into this ShapeElement.

Parameters

in_that

The source ShapeElement to copy.

SetAnchor()

AnchorShapeElement& HPS::AnchorShapeElement::SetAnchor

(

ShapePoint const &

in_anchor

)

Sets the anchor point for this AnchorShapeElement.

Parameters

in_anchor

The anchor point.

SetConnection()

AnchorShapeElement& HPS::AnchorShapeElement::SetConnection

(

bool

in_connection

)

Sets the connection setting for this AnchorShapeElement.

Parameters

in_connection

Whether the first intermediate point connects to the anchor point.

SetDisjointed()

ShapeElement& HPS::ShapeElement::SetDisjointed ( bool  in_state )

inherited

Sets the disjointed state for this ShapeElement.

Two shape elements of the same type are automatically joined together if they appear consecutively in the shape element array. LineShapeElement objects are always disjointed.

Parameters

in_state

The disjointed state for this ShapeElement.

SetFill()

ShapeElement& HPS::ShapeElement::SetFill ( bool  in_state )

inherited

Sets the fill mode for this ShapeElement.

All shape elements default to being filled, except for Lines which cannot be filled.

Parameters

in_state

The fill mode for this ShapeElement.

SetIntermediatePoints()

AnchorShapeElement& HPS::AnchorShapeElement::SetIntermediatePoints

(

ShapePointArray const &

in_intermediate_points

)

Sets the intermediate points for this AnchorShapeElement.

Parameters

in_intermediate_points

The points between the anchor and the leader line.

ShowAnchor()

bool HPS::AnchorShapeElement::ShowAnchor

(

ShapePoint &

out_anchor

)

const

Shows the anchor for this AnchorShapeElement.

Parameters

out_anchor

The anchor point.

Returns

true if an anchor point was set, false otherwise.

ShowConnection()

bool HPS::AnchorShapeElement::ShowConnection

(

bool &

out_connection

)

const

Shows the connection setting for this AnchorShapeElement.

Parameters

out_connection

Whether the first intermediate point connects to the anchor point.

Returns

true if a connection setting was set, false otherwise.

ShowDisjointed()

bool HPS::ShapeElement::ShowDisjointed ( bool &  out_state ) const

inherited

Shows the disjointed state for this ShapeElement.

Two shape elements of the same type are automatically joined together if they appear consecutively in the shape element array. LineShapeElement objects are always disjointed.

Parameters

out_state

Whether this shape element will be disjointed from the previous one.

Returns

true if a disjointed state was set, false otherwise.

ShowFill()

bool HPS::ShapeElement::ShowFill ( bool &  out_state ) const

inherited

Shows the fill mode for this ShapeElement.

All shape elements default to being filled, except for Lines which cannot be filled.

Parameters

out_state

Whether faces are drawn for this shape element.

Returns

true if a fill mode was set, false otherwise.

ShowIntermediatePoints()

bool HPS::AnchorShapeElement::ShowIntermediatePoints

(

ShapePointArray &

out_intermediate_points

)

const

Shows the intermediate points for this AnchorShapeElement.

Parameters

out_intermediate_points

The points between the anchor point and the leader line.

Returns

true if intermediate points were set, false otherwise.

Type()

virtual HPS::Type HPS::Object::Type ( ) const

virtualinherited

This function returns the true type of the underlying object.

This function is useful for finding the type of smart pointer objects that have been cast to more generic types.

Returns

The true type of the object in question.

Reimplemented in HPS::UpdateOptionsControl, HPS::HighlightControl, HPS::SelectionOptionsControl, HPS::OffScreenWindowOptionsControl, HPS::ApplicationWindowOptionsControl, HPS::StandAloneWindowOptionsControl, HPS::AttributeLockControl, HPS::WindowInfoControl, HPS::DebuggingControl, HPS::SubwindowControl, HPS::ContourLineControl, HPS::VisualEffectsControl, HPS::TransformMaskControl, HPS::PostProcessEffectsControl, HPS::DrawingAttributeControl, HPS::HiddenLineAttributeControl, HPS::PerformanceControl, HPS::NURBSSurfaceAttributeControl, HPS::ConditionControl, HPS::StyleControl, HPS::PortfolioControl, HPS::MaterialMappingControl, HPS::TextureMatrixControl, HPS::ModellingMatrixControl, HPS::CurveAttributeControl, HPS::EdgeAttributeControl, HPS::LineAttributeControl, HPS::TextAttributeControl, HPS::CuttingSectionAttributeControl, HPS::CylinderAttributeControl, HPS::LightingAttributeControl, HPS::SphereAttributeControl, HPS::MarkerAttributeControl, HPS::CullingControl, HPS::ColorInterpolationControl, HPS::TransparencyControl, HPS::SelectabilityControl, HPS::CameraControl, HPS::VisibilityControl, HPS::BoundingControl, HPS::Kit, and HPS::Control.

UnsetConnection()

AnchorShapeElement& HPS::AnchorShapeElement::UnsetConnection

(

)

Unsets the connection setting for this AnchorShapeElement.

UnsetIntermediatePoints()

AnchorShapeElement& HPS::AnchorShapeElement::UnsetIntermediatePoints

(

)

Unsets the intermediate points for this AnchorShapeElement.

Member Data Documentation

staticType

const HPS::Type HPS::AnchorShapeElement::staticType = HPS::Type::AnchorShapeElement

static

---

The documentation for this class was generated from the following file:

• hps.h
