HPS::Exchange::TranslationNotifier Class Reference

The TranslationNotifier class is a smart-pointer that is tied to a file translation. More...

#include <sprk_exchange.h>

Inheritance diagram for HPS::Exchange::TranslationNotifier:

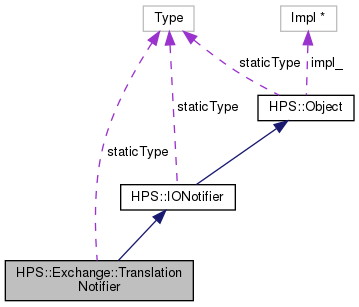

Collaboration diagram for HPS::Exchange::TranslationNotifier:

Public Member Functions
	TranslationNotifier ()
	The default constructor creates an TranslationNotifier object which is not tied to any file translation. More...
	TranslationNotifier (TranslationNotifier const &in_that)
	The copy constructor creates a new TranslationNotifier object that is associated with the same file translation as the source TranslationNotifier. More...
	TranslationNotifier (IONotifier const &in_that)
	The conversion constructor creates a new derived TranslationNotifier object from a base IONotifier object. More...
	TranslationNotifier (TranslationNotifier &&in_that)
	The move constructor creates an TranslationNotifier by transferring the underlying impl of the rvalue reference to this TranslationNotifier thereby avoiding a copy and allocation. More...
TranslationNotifier &	operator= (TranslationNotifier &&in_that)
	The move assignment operator transfers the underlying impl of the rvalue reference to this TranslationNotifier thereby avoiding a copy. More...
virtual	~TranslationNotifier ()
HPS::Type	ObjectType () const
TranslationNotifier &	operator= (TranslationNotifier const &in_that)
	Associate this TranslationNotifier with the same file translation as the source TranslationNotifier. More...
void	Assign (TranslationNotifier const &in_that)
	Associate this TranslationNotifier with the same file translation as the source TranslationNotifier. More...
Exchange::ParasolidEntityArray	GetParasolidParts () const
	Get the Parasolid parts obtained from the translation. More...
HPS::Time	GetImportTime () const
	Get the number of milliseconds it took Exchange to read the CAD file(s) and generate the corresponding PRC data. More...
HPS::Time	GetTranslationTime () const
	Get the number of milliseconds it took Exchange to translate the PRC data into Parasolid data. More...
void	Assign (IONotifier const &in_that)
	Associate this IONotifier with the same file IO operation as the source IONotifier. More...
IONotifier &	Wait ()
	Cause this thread to sleep until the asynchronous file IO operation associated with this notifier is complete. More...
IOResult	Status () const
	Query the status of the file IO operation for this notifier. More...
IOResult	Status (float &out_percent_complete) const
	Query the status and completion percentage of the file IO for this notifier. More...
IONotifier &	Cancel ()
	Requests to cancel the asynchronous file IO if it is still in progress. More...
virtual HPS::Type	Type () const
	This function returns the true type of the underlying object. More...
virtual bool	Empty () const
	Indicates whether this object has any values set on it. More...
virtual void	Reset ()
	Resets this object to its initial, uninitialized state. More...
bool	HasType (HPS::Type in_mask) const
	This function indicates whether this Object has the given Type mask. More...
intptr_t	GetClassID () const
	Returns a unique identifier that is shared by all objects of the same class. More...
intptr_t	GetInstanceID () const
	Returns an identifier that can be used to identify which instance of a class an object is. More...

Static Public Member Functions
template<typename T >
static intptr_t	ClassID ()
	Unique identifier for this class. More...

Static Public Attributes
static const HPS::Type	staticType = HPS::Type::ExchangeTranslationNotifier

Detailed Description

The TranslationNotifier class is a smart-pointer that is tied to a file translation.

It is used to interact with an ongoing translation or get the results from a completed translation.

Constructor & Destructor Documentation

TranslationNotifier() [1/4]

HPS::Exchange::TranslationNotifier::TranslationNotifier

(

)

The default constructor creates an TranslationNotifier object which is not tied to any file translation.

TranslationNotifier() [2/4]

HPS::Exchange::TranslationNotifier::TranslationNotifier

(

TranslationNotifier const &

in_that

)

The copy constructor creates a new TranslationNotifier object that is associated with the same file translation as the source TranslationNotifier.

Parameters

in_that

The source TranslationNotifier to copy.

TranslationNotifier() [3/4]

HPS::Exchange::TranslationNotifier::TranslationNotifier

(

IONotifier const &

in_that

)

The conversion constructor creates a new derived TranslationNotifier object from a base IONotifier object.

The copy will only be successful if the source notifier is really an upcast of this notifier type. Otherwise the copy will fail and the resulting TranslationNotifier will be invalid.

Parameters

in_that

The source IONotifier to copy.

TranslationNotifier() [4/4]

HPS::Exchange::TranslationNotifier::TranslationNotifier

(

TranslationNotifier &&

in_that

)

The move constructor creates an TranslationNotifier by transferring the underlying impl of the rvalue reference to this TranslationNotifier thereby avoiding a copy and allocation.

Parameters

in_that

An rvalue reference to an TranslationNotifier to take the impl from.

~TranslationNotifier()

virtual HPS::Exchange::TranslationNotifier::~TranslationNotifier ( )

virtual

Member Function Documentation

Assign() [1/2]

void HPS::Exchange::TranslationNotifier::Assign

(

TranslationNotifier const &

in_that

)

Associate this TranslationNotifier with the same file translation as the source TranslationNotifier.

Parameters

in_that

The source TranslationNotifier for the assignment.

Assign() [2/2]

void HPS::IONotifier::Assign ( IONotifier const &  in_that )

inherited

Associate this IONotifier with the same file IO operation as the source IONotifier.

Parameters

in_that

The source IONotifier for the assignment.

Cancel()

IONotifier& HPS::IONotifier::Cancel ( )

inherited

Requests to cancel the asynchronous file IO if it is still in progress.

The Cancel() function will return synchronously, however there may be some delay between when the cancel request is made and when the asynchronous file IO stops. Call Wait() to ensure that the asynchronous file IO operation has stopped.

Returns

A reference to this IONotifier.

ClassID()

template<typename T >

static intptr_t HPS::Object::ClassID ( )

inlinestaticinherited

Unique identifier for this class.

Note: this method uses construction of static objects. If used in a constructor, it should be used in the body not the initializer list.

Empty()

virtual bool HPS::Object::Empty ( ) const

inlinevirtualinherited

Indicates whether this object has any values set on it.

Returns

true if no values are set on this object, false otherwise.

Reimplemented in HPS::STL::ImportResultsKit, HPS::STL::ImportOptionsKit, HPS::OBJ::ImportResultsKit, HPS::OBJ::ImportOptionsKit, HPS::Hardcopy::File::ExportOptionsKit, HPS::Stream::ExportOptionsKit, HPS::Stream::ImportResultsKit, HPS::Stream::ImportOptionsKit, HPS::PointCloud::ImportOptionsKit, HPS::PointCloud::ImportResultsKit, HPS::UpdateOptionsKit, HPS::HighlightSearchOptionsKit, HPS::HighlightOptionsKit, HPS::SelectionOptionsKit, HPS::SearchOptionsKit, HPS::CutGeometryGatheringOptionsKit, HPS::ShapeKit, HPS::ShaderKit, HPS::Shader::ImportOptionsKit, HPS::ImageKit, HPS::Image::ImportOptionsKit, HPS::Image::ExportOptionsKit, HPS::TextureOptionsKit, HPS::LinePatternKit, HPS::LinePatternParallelKit, HPS::LinePatternOptionsKit, HPS::GlyphKit, HPS::ApplicationWindowOptionsKit, HPS::OffScreenWindowOptionsKit, HPS::StandAloneWindowOptionsKit, HPS::GridKit, HPS::PolygonKit, HPS::MeshKit, HPS::ShellKit, HPS::ShellRelationResultsKit, HPS::ShellRelationOptionsKit, HPS::ShellOptimizationOptionsKit, HPS::TextKit, HPS::EllipticalArcKit, HPS::EllipseKit, HPS::TrimKit, HPS::NURBSSurfaceKit, HPS::NURBSCurveKit, HPS::SpotlightKit, HPS::InfiniteLineKit, HPS::CuttingSectionKit, HPS::CircularWedgeKit, HPS::CircularArcKit, HPS::CircleKit, HPS::SphereKit, HPS::CylinderKit, HPS::DistantLightKit, HPS::MarkerKit, HPS::LineKit, HPS::AttributeLockKit, HPS::FontInfoState, HPS::WindowInfoKit, HPS::DebuggingKit, HPS::SubwindowKit, HPS::ContourLineKit, HPS::VisualEffectsKit, HPS::TransformMaskKit, HPS::PostProcessEffectsKit, HPS::DrawingAttributeKit, HPS::HiddenLineAttributeKit, HPS::PerformanceKit, HPS::NURBSSurfaceAttributeKit, HPS::MaterialKit, HPS::MaterialMappingKit, HPS::MatrixKit, HPS::CurveAttributeKit, HPS::EdgeAttributeKit, HPS::LineAttributeKit, HPS::TextAttributeKit, HPS::CuttingSectionAttributeKit, HPS::CylinderAttributeKit, HPS::LightingAttributeKit, HPS::SphereAttributeKit, HPS::MarkerAttributeKit, HPS::CullingKit, HPS::ColorInterpolationKit, HPS::TransparencyKit, HPS::SelectabilityKit, HPS::CameraKit, HPS::VisibilityKit, HPS::BoundingKit, HPS::SegmentOptimizationOptionsKit, HPS::Publish::ExportOptionsKit, HPS::Publish::TextFieldKit, HPS::Publish::SignatureFieldKit, HPS::Publish::DropDownListKit, HPS::Exchange::TessellationOptionsKit, HPS::Publish::ListBoxKit, HPS::Exchange::ExportSTEPOptionsKit, HPS::Exchange::ExportParasolidOptionsKit, HPS::Publish::RadioButtonKit, HPS::Exchange::ExportIGESOptionsKit, HPS::Exchange::ExportXMLOptionsKit, HPS::Publish::CheckBoxKit, HPS::Exchange::ExportU3DOptionsKit, HPS::Exchange::ExportSTLOptionsKit, HPS::Publish::ButtonKit, HPS::Exchange::ExportPRCOptionsKit, HPS::Publish::LinkKit, HPS::Exchange::ExportJTOptionsKit, HPS::Publish::SlideTableKit, HPS::Exchange::ExportACISOptionsKit, HPS::Publish::TableKit, HPS::Exchange::Export3MFOptionsKit, HPS::Publish::ImageKit, HPS::Publish::TextKit, HPS::Exchange::ModelFileImportOptionsKit, HPS::Publish::ViewKit, HPS::Exchange::TranslationOptionsKit, HPS::Publish::ArtworkKit, HPS::Publish::AnnotationKit, HPS::ComponentPath, HPS::Exchange::ImportOptionsKit, HPS::Parasolid::ExportOptionsKit, HPS::Exchange::NURBSConversionOptionsKit, HPS::Parasolid::LineTessellationKit, HPS::Exchange::Configuration, HPS::Publish::PageKit, HPS::Parasolid::FacetTessellationKit, HPS::Publish::DocumentKit, HPS::Parasolid::ImportOptionsKit, HPS::DWG::ImportOptionsKit, HPS::OOC::ImportOptionsKit, HPS::Sketchup::ImportOptionsKit, and HPS::Sketchup::ImportResultsKit.

GetClassID()

intptr_t HPS::Object::GetClassID ( ) const

inherited

Returns a unique identifier that is shared by all objects of the same class.

Returns

A unique value shared by all objects of the same class.

GetImportTime()

HPS::Time HPS::Exchange::TranslationNotifier::GetImportTime

(

)

const

Get the number of milliseconds it took Exchange to read the CAD file(s) and generate the corresponding PRC data.

Throws an IOException if the translation is not complete, was not successful or was canceled.

GetInstanceID()

intptr_t HPS::Object::GetInstanceID ( ) const

inherited

Returns an identifier that can be used to identify which instance of a class an object is.

Different keys and controls will return the same value if they are backed by the same database resource.

Returns

A value unique to an instance of an object and all objects that are backed by the same database resource.

GetParasolidParts()

Exchange::ParasolidEntityArray HPS::Exchange::TranslationNotifier::GetParasolidParts

(

)

const

Get the Parasolid parts obtained from the translation.

Throws an IOException if the translation is not complete, was not successful or was canceled.

Returns

The Parasolid Parts for a successful file translation.

GetTranslationTime()

HPS::Time HPS::Exchange::TranslationNotifier::GetTranslationTime

(

)

const

Get the number of milliseconds it took Exchange to translate the PRC data into Parasolid data.

Throws an IOException if the translation is not complete, was not successful or was canceled.

HasType()

bool HPS::Object::HasType ( HPS::Type  in_mask ) const

inherited

This function indicates whether this Object has the given Type mask.

Parameters

in_mask

The Type mask to check against this Object.

Returns

true if this Object has the given Type mask, false otherwise.

ObjectType()

HPS::Type HPS::Exchange::TranslationNotifier::ObjectType ( ) const

inlinevirtual

Reimplemented from HPS::IONotifier.

operator=() [1/2]

TranslationNotifier& HPS::Exchange::TranslationNotifier::operator=

(

TranslationNotifier &&

in_that

)

The move assignment operator transfers the underlying impl of the rvalue reference to this TranslationNotifier thereby avoiding a copy.

Parameters

in_that

An rvalue reference to an TranslationNotifier to take the impl from.

Returns

A reference to this TranslationNotifier.

operator=() [2/2]

TranslationNotifier& HPS::Exchange::TranslationNotifier::operator=

(

TranslationNotifier const &

in_that

)

Associate this TranslationNotifier with the same file translation as the source TranslationNotifier.

Parameters

in_that

The source TranslationNotifier for the assignment.

Returns

A reference to this TranslationNotifier.

Reset()

virtual void HPS::Object::Reset ( )

virtualinherited

Resets this object to its initial, uninitialized state.

Reimplemented in HPS::EventHandler, HPS::EventDispatcher, HPS::World, HPS::HighlightSearchResults, HPS::HighlightSearchResultsIterator, HPS::SelectionResults, HPS::SelectionResultsIterator, HPS::FontSearchResults, HPS::FontSearchResultsIterator, HPS::SearchResults, and HPS::SearchResultsIterator.

Status() [1/2]

IOResult HPS::IONotifier::Status ( ) const

inherited

Query the status of the file IO operation for this notifier.

Returns

The current state of the file import.

Status() [2/2]

IOResult HPS::IONotifier::Status ( float &  out_percent_complete ) const

inherited

Query the status and completion percentage of the file IO for this notifier.

Parameters

out_percent_complete

Float in the range [0,1] indicating the current percentage complete.

Returns

The current state of the file import.

Type()

virtual HPS::Type HPS::Object::Type ( ) const

virtualinherited

This function returns the true type of the underlying object.

This function is useful for finding the type of smart pointer objects that have been cast to more generic types.

Returns

The true type of the object in question.

Reimplemented in HPS::UpdateOptionsControl, HPS::HighlightControl, HPS::SelectionOptionsControl, HPS::OffScreenWindowOptionsControl, HPS::ApplicationWindowOptionsControl, HPS::StandAloneWindowOptionsControl, HPS::AttributeLockControl, HPS::WindowInfoControl, HPS::DebuggingControl, HPS::SubwindowControl, HPS::ContourLineControl, HPS::VisualEffectsControl, HPS::TransformMaskControl, HPS::PostProcessEffectsControl, HPS::DrawingAttributeControl, HPS::HiddenLineAttributeControl, HPS::PerformanceControl, HPS::NURBSSurfaceAttributeControl, HPS::ConditionControl, HPS::StyleControl, HPS::PortfolioControl, HPS::MaterialMappingControl, HPS::TextureMatrixControl, HPS::ModellingMatrixControl, HPS::CurveAttributeControl, HPS::EdgeAttributeControl, HPS::LineAttributeControl, HPS::TextAttributeControl, HPS::CuttingSectionAttributeControl, HPS::CylinderAttributeControl, HPS::LightingAttributeControl, HPS::SphereAttributeControl, HPS::MarkerAttributeControl, HPS::CullingControl, HPS::ColorInterpolationControl, HPS::TransparencyControl, HPS::SelectabilityControl, HPS::CameraControl, HPS::VisibilityControl, HPS::BoundingControl, HPS::Kit, and HPS::Control.

Wait()

IONotifier& HPS::IONotifier::Wait ( )

inherited

Cause this thread to sleep until the asynchronous file IO operation associated with this notifier is complete.

Returns

A reference to this IONotifier.

Member Data Documentation

staticType

const HPS::Type HPS::Exchange::TranslationNotifier::staticType = HPS::Type::ExchangeTranslationNotifier

static

---

The documentation for this class was generated from the following file:

• sprk_exchange.h
