HPS::GlyphDefinition Class Reference

The GlyphDefinition class is a smart pointer to a database object. More...

#include <hps.h>

Inheritance diagram for HPS::GlyphDefinition:

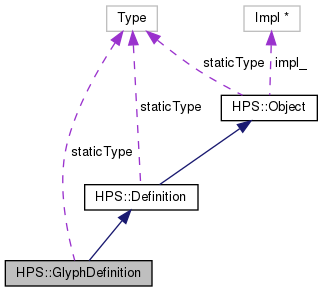

Collaboration diagram for HPS::GlyphDefinition:

Public Member Functions

 GlyphDefinition ()
 The default constructor creates an uninitialized GlyphDefinition object. More...

 GlyphDefinition (Definition const &in_that)
 This constructor creates an GlyphDefinition object that shares the underlying smart-pointer of the source Definition. More...

 GlyphDefinition (GlyphDefinition const &in_that)
 The copy constructor creates an GlyphDefinition object that shares the underlying smart-pointer of the source GlyphDefinition. More...

GlyphDefinitionoperator= (GlyphDefinition const &in_that)
 Associate this GlyphDefinition with the same underlying impl as the source GlyphDefinition. More...

 GlyphDefinition (GlyphDefinition &&in_that)
 The move constructor creates a GlyphDefinition by transferring the underlying impl of the rvalue reference to this GlyphDefinition thereby avoiding a copy and allocation. More...

GlyphDefinitionoperator= (GlyphDefinition &&in_that)
 The move assignment operator transfers the underlying impl of the rvalue reference to this GlyphDefinition thereby avoiding a copy. More...

 ~GlyphDefinition ()

HPS::Type ObjectType () const

void Set (GlyphKit const &in_kit)
 Redefine the glyph for this GlyphDefinition. More...

void Show (GlyphKit &out_kit) const
 Shows the glyph for this GlyphDefinition. More...

void Undefine ()
 Removes this definition from the owning portfolio. More...

PortfolioKey Owner () const
 Get the portfolio that owns this Definition. More...

UTF8 Name () const
 Get the name given to this Definition when it was defined. More...

virtual void Assign (Definition const &in_that)
 Associate this Definition with the same underlying impl as the source Definition. More...

bool Equals (Definition const &in_that) const
 Check if the source Definition is equivalent to this Definition. More...

bool operator== (Definition const &in_that) const
 Check if the source Definition is equivalent to this Definition. More...

bool operator!= (Definition const &in_that) const
 Check if the source Definition is not equivalent to this Definition. More...

virtual HPS::Type Type () const
 This function returns the true type of the underlying object. More...

virtual bool Empty () const
 Indicates whether this object has any values set on it. More...

virtual void Reset ()
 Resets this object to its initial, uninitialized state. More...

bool HasType (HPS::Type in_mask) const
 This function indicates whether this Object has the given Type mask. More...

intptr_t GetClassID () const
 Returns a unique identifier that is shared by all objects of the same class. More...

intptr_t GetInstanceID () const
 Returns an identifier that can be used to identify which instance of a class an object is. More...


Static Public Member Functions

template<typename T >
static intptr_t ClassID ()
 Unique identifier for this class. More...


Static Public Attributes

static const HPS::Type staticType = HPS::Type::GlyphDefinition


Detailed Description

The GlyphDefinition class is a smart pointer to a database object.

It is a handler to a glyph defined within a portfolio.

Constructor & Destructor Documentation

◆ GlyphDefinition() [1/4]

HPS::GlyphDefinition::GlyphDefinition ( )

The default constructor creates an uninitialized GlyphDefinition object.

The Type() function will return Type::None.

◆ GlyphDefinition() [2/4]

HPS::GlyphDefinition::GlyphDefinition ( Definition const &  in_that)

This constructor creates an GlyphDefinition object that shares the underlying smart-pointer of the source Definition.

The copy will only be successful if the source definition is really an upcast of a glyph definition. Otherwise the copy will fail and the resulting GlyphDefinition will be invalid.

Parameters
in_thatThe source Definition to copy.

◆ GlyphDefinition() [3/4]

HPS::GlyphDefinition::GlyphDefinition ( GlyphDefinition const &  in_that)

The copy constructor creates an GlyphDefinition object that shares the underlying smart-pointer of the source GlyphDefinition.

Parameters
in_thatThe source GlyphDefinition to copy.

◆ GlyphDefinition() [4/4]

HPS::GlyphDefinition::GlyphDefinition ( GlyphDefinition &&  in_that)

The move constructor creates a GlyphDefinition by transferring the underlying impl of the rvalue reference to this GlyphDefinition thereby avoiding a copy and allocation.

Parameters
in_thatAn rvalue reference to a GlyphDefinition to take the impl from.

◆ ~GlyphDefinition()

HPS::GlyphDefinition::~GlyphDefinition ( )

Member Function Documentation

◆ Assign()

virtual void HPS::Definition::Assign ( Definition const &  in_that)
virtualinherited

Associate this Definition with the same underlying impl as the source Definition.

Parameters
in_thatThe source Definition for the assignment.

◆ ClassID()

template<typename T >
static intptr_t HPS::Object::ClassID ( )
inlinestaticinherited

Unique identifier for this class.

Note: this method uses construction of static objects. If used in a constructor, it should be used in the body not the initializer list.

◆ Empty()

virtual bool HPS::Object::Empty ( ) const
inlinevirtualinherited

Indicates whether this object has any values set on it.

Returns
true if no values are set on this object, false otherwise.

Reimplemented in HPS::STL::ImportResultsKit, HPS::STL::ImportOptionsKit, HPS::OBJ::ImportResultsKit, HPS::OBJ::ImportOptionsKit, HPS::Hardcopy::File::ExportOptionsKit, HPS::Stream::ExportOptionsKit, HPS::Stream::ImportResultsKit, HPS::Stream::ImportOptionsKit, HPS::PointCloud::ImportOptionsKit, HPS::PointCloud::ImportResultsKit, HPS::UpdateOptionsKit, HPS::HighlightSearchOptionsKit, HPS::HighlightOptionsKit, HPS::SelectionOptionsKit, HPS::SearchOptionsKit, HPS::CutGeometryGatheringOptionsKit, HPS::ShapeKit, HPS::ShaderKit, HPS::Shader::ImportOptionsKit, HPS::ImageKit, HPS::Image::ImportOptionsKit, HPS::Image::ExportOptionsKit, HPS::TextureOptionsKit, HPS::LinePatternKit, HPS::LinePatternParallelKit, HPS::LinePatternOptionsKit, HPS::GlyphKit, HPS::ApplicationWindowOptionsKit, HPS::OffScreenWindowOptionsKit, HPS::StandAloneWindowOptionsKit, HPS::GridKit, HPS::PolygonKit, HPS::MeshKit, HPS::ShellKit, HPS::ShellRelationResultsKit, HPS::ShellRelationOptionsKit, HPS::ShellOptimizationOptionsKit, HPS::TextKit, HPS::EllipticalArcKit, HPS::EllipseKit, HPS::TrimKit, HPS::NURBSSurfaceKit, HPS::NURBSCurveKit, HPS::SpotlightKit, HPS::InfiniteLineKit, HPS::CuttingSectionKit, HPS::CircularWedgeKit, HPS::CircularArcKit, HPS::CircleKit, HPS::SphereKit, HPS::CylinderKit, HPS::DistantLightKit, HPS::MarkerKit, HPS::LineKit, HPS::AttributeLockKit, HPS::FontInfoState, HPS::WindowInfoKit, HPS::DebuggingKit, HPS::SubwindowKit, HPS::ContourLineKit, HPS::VisualEffectsKit, HPS::TransformMaskKit, HPS::PostProcessEffectsKit, HPS::DrawingAttributeKit, HPS::HiddenLineAttributeKit, HPS::PerformanceKit, HPS::NURBSSurfaceAttributeKit, HPS::MaterialKit, HPS::MaterialMappingKit, HPS::MatrixKit, HPS::CurveAttributeKit, HPS::EdgeAttributeKit, HPS::LineAttributeKit, HPS::TextAttributeKit, HPS::CuttingSectionAttributeKit, HPS::CylinderAttributeKit, HPS::LightingAttributeKit, HPS::SphereAttributeKit, HPS::MarkerAttributeKit, HPS::CullingKit, HPS::ColorInterpolationKit, HPS::TransparencyKit, HPS::SelectabilityKit, HPS::CameraKit, HPS::VisibilityKit, HPS::BoundingKit, HPS::SegmentOptimizationOptionsKit, HPS::Publish::ExportOptionsKit, HPS::Publish::TextFieldKit, HPS::Publish::SignatureFieldKit, HPS::Publish::DropDownListKit, HPS::Exchange::TessellationOptionsKit, HPS::Publish::ListBoxKit, HPS::Exchange::ExportSTEPOptionsKit, HPS::Exchange::ExportParasolidOptionsKit, HPS::Publish::RadioButtonKit, HPS::Exchange::ExportIGESOptionsKit, HPS::Exchange::ExportXMLOptionsKit, HPS::Publish::CheckBoxKit, HPS::Exchange::ExportU3DOptionsKit, HPS::Exchange::ExportSTLOptionsKit, HPS::Publish::ButtonKit, HPS::Exchange::ExportPRCOptionsKit, HPS::Publish::LinkKit, HPS::Exchange::ExportJTOptionsKit, HPS::Publish::SlideTableKit, HPS::Exchange::ExportACISOptionsKit, HPS::Publish::TableKit, HPS::Exchange::Export3MFOptionsKit, HPS::Publish::ImageKit, HPS::Publish::TextKit, HPS::Exchange::ModelFileImportOptionsKit, HPS::Publish::ViewKit, HPS::Exchange::TranslationOptionsKit, HPS::Publish::ArtworkKit, HPS::Publish::AnnotationKit, HPS::ComponentPath, HPS::Exchange::ImportOptionsKit, HPS::Parasolid::ExportOptionsKit, HPS::Exchange::NURBSConversionOptionsKit, HPS::Parasolid::LineTessellationKit, HPS::Exchange::Configuration, HPS::Publish::PageKit, HPS::Parasolid::FacetTessellationKit, HPS::Publish::DocumentKit, HPS::Parasolid::ImportOptionsKit, HPS::DWG::ImportOptionsKit, HPS::OOC::ImportOptionsKit, HPS::Sketchup::ImportOptionsKit, and HPS::Sketchup::ImportResultsKit.

◆ Equals()

bool HPS::Definition::Equals ( Definition const &  in_that) const
inherited

Check if the source Definition is equivalent to this Definition.

Parameters
in_thatThe source Definition to compare to this Definition.
Returns
true if the objects are equivalent, false otherwise.

◆ GetClassID()

intptr_t HPS::Object::GetClassID ( ) const
inherited

Returns a unique identifier that is shared by all objects of the same class.

Returns
A unique value shared by all objects of the same class.

◆ GetInstanceID()

intptr_t HPS::Object::GetInstanceID ( ) const
inherited

Returns an identifier that can be used to identify which instance of a class an object is.

Different keys and controls will return the same value if they are backed by the same database resource.

Returns
A value unique to an instance of an object and all objects that are backed by the same database resource.

◆ HasType()

bool HPS::Object::HasType ( HPS::Type  in_mask) const
inherited

This function indicates whether this Object has the given Type mask.

Parameters
in_maskThe Type mask to check against this Object.
Returns
true if this Object has the given Type mask, false otherwise.

◆ Name()

UTF8 HPS::Definition::Name ( ) const
inherited

Get the name given to this Definition when it was defined.

Returns
UTF8-encoded name of this Definition.

◆ ObjectType()

HPS::Type HPS::GlyphDefinition::ObjectType ( ) const
inlinevirtual

Reimplemented from HPS::Definition.

◆ operator!=()

bool HPS::Definition::operator!= ( Definition const &  in_that) const
inherited

Check if the source Definition is not equivalent to this Definition.

Parameters
in_thatThe source Definition to compare to this Definition.
Returns
true if the objects are not equivalent, false otherwise.

◆ operator=() [1/2]

GlyphDefinition& HPS::GlyphDefinition::operator= ( GlyphDefinition const &  in_that)

Associate this GlyphDefinition with the same underlying impl as the source GlyphDefinition.

Parameters
in_thatThe source GlyphDefinition for the assignment.
Returns
A reference to this GlyphDefinition.

◆ operator=() [2/2]

GlyphDefinition& HPS::GlyphDefinition::operator= ( GlyphDefinition &&  in_that)

The move assignment operator transfers the underlying impl of the rvalue reference to this GlyphDefinition thereby avoiding a copy.

Parameters
in_thatAn rvalue reference to a GlyphDefinition to take the impl from.
Returns
A reference to this GlyphDefinition.

◆ operator==()

bool HPS::Definition::operator== ( Definition const &  in_that) const
inherited

Check if the source Definition is equivalent to this Definition.

Parameters
in_thatThe source Definition to compare to this Definition.
Returns
true if the objects are equivalent, false otherwise.

◆ Owner()

PortfolioKey HPS::Definition::Owner ( ) const
inherited

Get the portfolio that owns this Definition.

Returns
The portfolio that owns this Definition.

◆ Reset()

◆ Set()

void HPS::GlyphDefinition::Set ( GlyphKit const &  in_kit)

Redefine the glyph for this GlyphDefinition.

Parameters
in_kitThe new glyph for this GlyphDefinition.

◆ Show()

void HPS::GlyphDefinition::Show ( GlyphKit out_kit) const

Shows the glyph for this GlyphDefinition.

Parameters
out_kitThe glyph for this GlyphDefinition.

◆ Type()

◆ Undefine()

void HPS::Definition::Undefine ( )
inherited

Removes this definition from the owning portfolio.

Member Data Documentation

◆ staticType

const HPS::Type HPS::GlyphDefinition::staticType = HPS::Type::GlyphDefinition
static

The documentation for this class was generated from the following file:
