HPS::IncludeKey Class Reference

The IncludeKey class is a smart pointer to a database object. More...

#include <hps.h>

Inheritance diagram for HPS::IncludeKey:

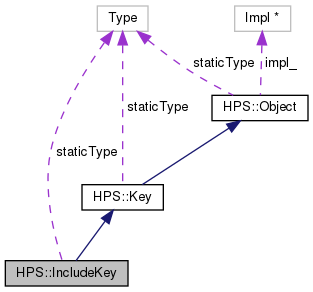

Collaboration diagram for HPS::IncludeKey:

Public Member Functions
	IncludeKey ()
	The default constructor creates an uninitialized IncludeKey object. More...
	IncludeKey (Key const &in_that)
	This constructor creates an IncludeKey object that shares the underlying smart-pointer of the source Key. More...
	IncludeKey (IncludeKey const &in_that)
	The copy constructor creates a IncludeKey object that shares the underlying smart-pointer of the source IncludeKey. More...
IncludeKey &	operator= (IncludeKey const &in_that)
	Associate this IncludeKey with the same underlying impl as the source IncludeKey. More...
	IncludeKey (IncludeKey &&in_that)
	The move constructor creates an IncludeKey by transferring the underlying impl of the rvalue reference to this IncludeKey thereby avoiding a copy and allocation. More...
IncludeKey &	operator= (IncludeKey &&in_that)
	The move assignment operator transfers the underlying impl of the rvalue reference to this IncludeKey thereby avoiding a copy. More...
	~IncludeKey ()
HPS::Type	ObjectType () const
SegmentKey	GetTarget () const
	Gets the target, i.e., the segment to be included, for this IncludeKey. More...
IncludeKey &	SetPriority (int in_priority)
	Assigns a specific drawing priority value of an include. More...
IncludeKey &	SetConditionalExpression (ConditionalExpression const &in_conditional)
	Sets a conditional expression on this IncludeKey. More...
IncludeKey &	UnsetPriority ()
	Removes a drawing priority setting. More...
IncludeKey &	UnsetConditionalExpression ()
	Removes the conditional expression on this IncludeKey. More...
bool	ShowPriority (int &out_priority) const
	Shows the drawing priority. More...
bool	ShowConditionalExpression (ConditionalExpression &out_conditional) const
	Shows the conditional expression for this IncludeKey. More...
IncludeKey &	SetFilter (AttributeLock::Type in_type)
	Sets an attribute filter on this IncludeKey. More...
IncludeKey &	SetFilter (size_t in_count, AttributeLock::Type const in_types[])
	Sets an array of attribute filters on this IncludeKey. More...
IncludeKey &	SetFilter (AttributeLockTypeArray const &in_types)
	Sets an array of attribute filters on this IncludeKey. More...
IncludeKey &	UnsetFilter (AttributeLock::Type in_type)
	Removes an attribute filter from this IncludeKey. More...
IncludeKey &	UnsetFilter (size_t in_count, AttributeLock::Type const in_types[])
	Removes an array of attribute filters from this IncludeKey. More...
IncludeKey &	UnsetFilter (AttributeLockTypeArray const &in_types)
	Removes an array of attribute filters from this IncludeKey. More...
bool	ShowFilter (AttributeLockTypeArray &out_types) const
	Shows an array of the current attribute filters on this IncludeKey. More...
bool	ShowFilter (HPS::AttributeLock::Type in_type) const
	Tests if a specific attribute filter is set on this IncludeKey. More...
bool	HasOwner () const
SegmentKey	Up () const
SegmentKey	Owner () const
void	Delete ()
	Removes the database object referred to by this key. More...
void	MoveTo (SegmentKey const &in_new_owner)
	Moves the database object referred to by this key into a new containing segment pointed to by in_new_owner. More...
Key	CopyTo (SegmentKey const &in_destination) const
	Copies the database object referred to by this key into a segment pointed to by in_destination. More...
virtual void	Assign (Key const &in_that)
	Share the underlying smart-pointer of the Key source. More...
bool	Equals (Key const &in_that) const
	Determines whether the database objects pointed to by this key and in_that are the same. More...
bool	operator!= (Key const &in_that) const
	Determines whether the database objects pointed to by this key and in_that are the same. More...
bool	operator== (Key const &in_that) const
	Determines whether the database objects pointed to by this key and in_that are the same. More...
size_t	GetHash () const
	Returns a hash code for the key. More...
virtual HPS::Type	Type () const
	This function returns the true type of the underlying object. More...
virtual bool	Empty () const
	Indicates whether this object has any values set on it. More...
virtual void	Reset ()
	Resets this object to its initial, uninitialized state. More...
bool	HasType (HPS::Type in_mask) const
	This function indicates whether this Object has the given Type mask. More...
intptr_t	GetClassID () const
	Returns a unique identifier that is shared by all objects of the same class. More...
intptr_t	GetInstanceID () const
	Returns an identifier that can be used to identify which instance of a class an object is. More...

Static Public Member Functions
template<typename T >
static intptr_t	ClassID ()
	Unique identifier for this class. More...

Static Public Attributes
static const HPS::Type	staticType = HPS::Type::IncludeKey

Detailed Description

The IncludeKey class is a smart pointer to a database object.

It is a handle to an include key created by SegmentKey::IncludeSegment.

Constructor & Destructor Documentation

IncludeKey() [1/4]

HPS::IncludeKey::IncludeKey

(

)

The default constructor creates an uninitialized IncludeKey object.

The Type() function will return Type::None.

IncludeKey() [2/4]

HPS::IncludeKey::IncludeKey ( Key const &  in_that )

explicit

This constructor creates an IncludeKey object that shares the underlying smart-pointer of the source Key.

The copy will only be successful if the source key is really an upcast of an include key. Otherwise the copy will fail and the resulting IncludeKey will be invalid.

Parameters

in_that

The source Key to copy.

IncludeKey() [3/4]

HPS::IncludeKey::IncludeKey

(

IncludeKey const &

in_that

)

The copy constructor creates a IncludeKey object that shares the underlying smart-pointer of the source IncludeKey.

Parameters

in_that

The source IncludeKey to copy.

IncludeKey() [4/4]

HPS::IncludeKey::IncludeKey

(

IncludeKey &&

in_that

)

The move constructor creates an IncludeKey by transferring the underlying impl of the rvalue reference to this IncludeKey thereby avoiding a copy and allocation.

Parameters

in_that

An rvalue reference to an IncludeKey to take the impl from.

~IncludeKey()

HPS::IncludeKey::~IncludeKey

(

)

Member Function Documentation

Assign()

virtual void HPS::Key::Assign ( Key const &  in_that )

virtualinherited

Share the underlying smart-pointer of the Key source.

Parameters

in_that

The Key source of the assignment.

ClassID()

template<typename T >

static intptr_t HPS::Object::ClassID ( )

inlinestaticinherited

Unique identifier for this class.

Note: this method uses construction of static objects. If used in a constructor, it should be used in the body not the initializer list.

CopyTo()

Key HPS::Key::CopyTo ( SegmentKey const &  in_destination ) const

inherited

Copies the database object referred to by this key into a segment pointed to by in_destination.

Returns

The key of the new copy.

Delete()

void HPS::Key::Delete ( )

inherited

Removes the database object referred to by this key.

Empty()

virtual bool HPS::Object::Empty ( ) const

inlinevirtualinherited

Indicates whether this object has any values set on it.

Returns

true if no values are set on this object, false otherwise.

Reimplemented in HPS::STL::ImportResultsKit, HPS::STL::ImportOptionsKit, HPS::OBJ::ImportResultsKit, HPS::OBJ::ImportOptionsKit, HPS::Hardcopy::File::ExportOptionsKit, HPS::Stream::ExportOptionsKit, HPS::Stream::ImportResultsKit, HPS::Stream::ImportOptionsKit, HPS::PointCloud::ImportOptionsKit, HPS::PointCloud::ImportResultsKit, HPS::UpdateOptionsKit, HPS::HighlightSearchOptionsKit, HPS::HighlightOptionsKit, HPS::SelectionOptionsKit, HPS::SearchOptionsKit, HPS::CutGeometryGatheringOptionsKit, HPS::ShapeKit, HPS::ShaderKit, HPS::Shader::ImportOptionsKit, HPS::ImageKit, HPS::Image::ImportOptionsKit, HPS::Image::ExportOptionsKit, HPS::TextureOptionsKit, HPS::LinePatternKit, HPS::LinePatternParallelKit, HPS::LinePatternOptionsKit, HPS::GlyphKit, HPS::ApplicationWindowOptionsKit, HPS::OffScreenWindowOptionsKit, HPS::StandAloneWindowOptionsKit, HPS::GridKit, HPS::PolygonKit, HPS::MeshKit, HPS::ShellKit, HPS::ShellRelationResultsKit, HPS::ShellRelationOptionsKit, HPS::ShellOptimizationOptionsKit, HPS::TextKit, HPS::EllipticalArcKit, HPS::EllipseKit, HPS::TrimKit, HPS::NURBSSurfaceKit, HPS::NURBSCurveKit, HPS::SpotlightKit, HPS::InfiniteLineKit, HPS::CuttingSectionKit, HPS::CircularWedgeKit, HPS::CircularArcKit, HPS::CircleKit, HPS::SphereKit, HPS::CylinderKit, HPS::DistantLightKit, HPS::MarkerKit, HPS::LineKit, HPS::AttributeLockKit, HPS::FontInfoState, HPS::WindowInfoKit, HPS::DebuggingKit, HPS::SubwindowKit, HPS::ContourLineKit, HPS::VisualEffectsKit, HPS::TransformMaskKit, HPS::PostProcessEffectsKit, HPS::DrawingAttributeKit, HPS::HiddenLineAttributeKit, HPS::PerformanceKit, HPS::NURBSSurfaceAttributeKit, HPS::MaterialKit, HPS::MaterialMappingKit, HPS::MatrixKit, HPS::CurveAttributeKit, HPS::EdgeAttributeKit, HPS::LineAttributeKit, HPS::TextAttributeKit, HPS::CuttingSectionAttributeKit, HPS::CylinderAttributeKit, HPS::LightingAttributeKit, HPS::SphereAttributeKit, HPS::MarkerAttributeKit, HPS::CullingKit, HPS::ColorInterpolationKit, HPS::TransparencyKit, HPS::SelectabilityKit, HPS::CameraKit, HPS::VisibilityKit, HPS::BoundingKit, HPS::SegmentOptimizationOptionsKit, HPS::Publish::ExportOptionsKit, HPS::Publish::TextFieldKit, HPS::Publish::SignatureFieldKit, HPS::Publish::DropDownListKit, HPS::Exchange::TessellationOptionsKit, HPS::Publish::ListBoxKit, HPS::Exchange::ExportSTEPOptionsKit, HPS::Exchange::ExportParasolidOptionsKit, HPS::Publish::RadioButtonKit, HPS::Exchange::ExportIGESOptionsKit, HPS::Exchange::ExportXMLOptionsKit, HPS::Publish::CheckBoxKit, HPS::Exchange::ExportU3DOptionsKit, HPS::Exchange::ExportSTLOptionsKit, HPS::Publish::ButtonKit, HPS::Exchange::ExportPRCOptionsKit, HPS::Publish::LinkKit, HPS::Exchange::ExportJTOptionsKit, HPS::Publish::SlideTableKit, HPS::Exchange::ExportACISOptionsKit, HPS::Publish::TableKit, HPS::Exchange::Export3MFOptionsKit, HPS::Publish::ImageKit, HPS::Publish::TextKit, HPS::Exchange::ModelFileImportOptionsKit, HPS::Publish::ViewKit, HPS::Exchange::TranslationOptionsKit, HPS::Publish::ArtworkKit, HPS::Publish::AnnotationKit, HPS::ComponentPath, HPS::Exchange::ImportOptionsKit, HPS::Parasolid::ExportOptionsKit, HPS::Exchange::NURBSConversionOptionsKit, HPS::Parasolid::LineTessellationKit, HPS::Exchange::Configuration, HPS::Publish::PageKit, HPS::Parasolid::FacetTessellationKit, HPS::Publish::DocumentKit, HPS::Parasolid::ImportOptionsKit, HPS::DWG::ImportOptionsKit, HPS::OOC::ImportOptionsKit, HPS::Sketchup::ImportOptionsKit, and HPS::Sketchup::ImportResultsKit.

Equals()

bool HPS::Key::Equals ( Key const &  in_that ) const

inherited

Determines whether the database objects pointed to by this key and in_that are the same.

Empty keys (when key.Empty() returns true) are never equal to any key, even when the key is compared against itself (they act analogously to NaN comparisons in this case.)

GetClassID()

intptr_t HPS::Object::GetClassID ( ) const

inherited

Returns a unique identifier that is shared by all objects of the same class.

Returns

A unique value shared by all objects of the same class.

GetHash()

size_t HPS::Key::GetHash ( ) const

inherited

Returns a hash code for the key.

Returns

The size_t hash code.

Here is the caller graph for this function:

GetInstanceID()

intptr_t HPS::Object::GetInstanceID ( ) const

inherited

Returns an identifier that can be used to identify which instance of a class an object is.

Different keys and controls will return the same value if they are backed by the same database resource.

Returns

A value unique to an instance of an object and all objects that are backed by the same database resource.

GetTarget()

SegmentKey HPS::IncludeKey::GetTarget

(

)

const

Gets the target, i.e., the segment to be included, for this IncludeKey.

Returns

The target, i.e., the segment to be included, for this IncludeKey.

HasOwner()

bool HPS::Key::HasOwner ( ) const

inherited

Returns

Indicates whether this key has an owner or not.

HasType()

bool HPS::Object::HasType ( HPS::Type  in_mask ) const

inherited

This function indicates whether this Object has the given Type mask.

Parameters

in_mask

The Type mask to check against this Object.

Returns

true if this Object has the given Type mask, false otherwise.

MoveTo()

void HPS::Key::MoveTo ( SegmentKey const &  in_new_owner )

inherited

Moves the database object referred to by this key into a new containing segment pointed to by in_new_owner.

ObjectType()

HPS::Type HPS::IncludeKey::ObjectType ( ) const

inlinevirtual

Reimplemented from HPS::Key.

operator!=()

bool HPS::Key::operator!= ( Key const &  in_that ) const

inherited

Determines whether the database objects pointed to by this key and in_that are the same.

operator=() [1/2]

IncludeKey& HPS::IncludeKey::operator=

(

IncludeKey const &

in_that

)

Associate this IncludeKey with the same underlying impl as the source IncludeKey.

Parameters

in_that

The source IncludeKey for the assignment.

Returns

A reference to this IncludeKey.

operator=() [2/2]

IncludeKey& HPS::IncludeKey::operator=

(

IncludeKey &&

in_that

)

The move assignment operator transfers the underlying impl of the rvalue reference to this IncludeKey thereby avoiding a copy.

Parameters

in_that

An rvalue reference to an IncludeKey to take the impl from.

Returns

A reference to this IncludeKey.

operator==()

bool HPS::Key::operator== ( Key const &  in_that ) const

inherited

Determines whether the database objects pointed to by this key and in_that are the same.

Owner()

SegmentKey HPS::Key::Owner ( ) const

inherited

Returns

The segment containing this key.

Reset()

virtual void HPS::Object::Reset ( )

virtualinherited

Resets this object to its initial, uninitialized state.

Reimplemented in HPS::EventHandler, HPS::EventDispatcher, HPS::World, HPS::HighlightSearchResults, HPS::HighlightSearchResultsIterator, HPS::SelectionResults, HPS::SelectionResultsIterator, HPS::FontSearchResults, HPS::FontSearchResultsIterator, HPS::SearchResults, and HPS::SearchResultsIterator.

SetConditionalExpression()

IncludeKey& HPS::IncludeKey::SetConditionalExpression

(

ConditionalExpression const &

in_conditional

)

Sets a conditional expression on this IncludeKey.

This will either make an unconditional include into a conditional include, or modify the condition for an existing conditional include. The target segment referenced by this include will only be included if a condition satisfying the given conditional expression is set above this include in the tree.

Parameters

in_conditional

The conditional expression for this IncludeKey.

Returns

A reference to this IncludeKey.

See also

SegmentKey::SetCondition

ConditionControl::SetCondition

ConditionControl::AddCondition

SetFilter() [1/3]

IncludeKey& HPS::IncludeKey::SetFilter

(

AttributeLock::Type

in_type

)

Sets an attribute filter on this IncludeKey.

Attribute filters block the specified attributes set in the tree rooted at the target segment from taking effect for this IncludeKey.

Parameters

in_type

The attribute filter to set for this IncludeKey.

Returns

A reference to this IncludeKey.

See also

IncludeKey::UnsetFilter

IncludeKey::ShowFilter

SetFilter() [2/3]

IncludeKey& HPS::IncludeKey::SetFilter	(	size_t	in_count,
		AttributeLock::Type const	in_types[]
	)

Sets an array of attribute filters on this IncludeKey.

Attribute filters block the specified attributes set in the tree rooted at the target segment from taking effect for this IncludeKey.

Parameters

in_count	The size of the attribute filter array.
in_types	The array of attribute filters to set for this IncludeKey.

Returns

A reference to this IncludeKey.

See also

IncludeKey::UnsetFilter

IncludeKey::ShowFilter

SetFilter() [3/3]

IncludeKey& HPS::IncludeKey::SetFilter

(

AttributeLockTypeArray const &

in_types

)

Sets an array of attribute filters on this IncludeKey.

Attribute filters block the specified attributes set in the tree rooted at the target segment from taking effect for this IncludeKey.

Parameters

in_types

The array of attribute filters to set for this IncludeKey.

Returns

A reference to this IncludeKey.

See also

IncludeKey::UnsetFilter

IncludeKey::ShowFilter

SetPriority()

IncludeKey& HPS::IncludeKey::SetPriority

(

int

in_priority

)

Assigns a specific drawing priority value of an include.

It affects the order in which the include is visited, if and only if the rendering algorithm is set to Priority.

Parameters

in_priority

The drawing priority, higher priority items are visited before lower priority items.

Returns

A reference to this object.

See also

SubwindowKit::SetRenderingAlgorithm()

ShowConditionalExpression()

bool HPS::IncludeKey::ShowConditionalExpression

(

ConditionalExpression &

out_conditional

)

const

Shows the conditional expression for this IncludeKey.

Parameters

out_conditional

The conditional expression for this IncludeKey.

Returns

true if a conditional expression is set on this IncludeKey, false otherwise.

ShowFilter() [1/2]

bool HPS::IncludeKey::ShowFilter

(

AttributeLockTypeArray &

out_types

)

const

Shows an array of the current attribute filters on this IncludeKey.

Attribute filters block the specified attributes set in the tree rooted at the target segment from taking effect for this IncludeKey.

Parameters

out_types

The array of attribute filters currently set on this IncludeKey.

Returns

true if there are attribute filters, false otherwise.

See also

IncludeKey::SetFilter

IncludeKey::UnsetFilter

ShowFilter() [2/2]

bool HPS::IncludeKey::ShowFilter

(

HPS::AttributeLock::Type

in_type

)

const

Tests if a specific attribute filter is set on this IncludeKey.

Attribute filters block the specified attributes set in the tree rooted at the target segment from taking effect for this IncludeKey.

Parameters

in_type

The attribute filter to test on this IncludeKey.

Returns

true if the specified atribute filter is active on this IncludeKey, false otherwise.

See also

IncludeKey::SetFilter

IncludeKey::UnsetFilter

ShowPriority()

bool HPS::IncludeKey::ShowPriority

(

int &

out_priority

)

const

Shows the drawing priority.

Parameters

out_priority

The drawing priority, higher priority items are drawn on top of lower priority items.

Returns

true if the setting is valid, false otherwise.

Type()

virtual HPS::Type HPS::Object::Type ( ) const

virtualinherited

This function returns the true type of the underlying object.

This function is useful for finding the type of smart pointer objects that have been cast to more generic types.

Returns

The true type of the object in question.

Reimplemented in HPS::UpdateOptionsControl, HPS::HighlightControl, HPS::SelectionOptionsControl, HPS::OffScreenWindowOptionsControl, HPS::ApplicationWindowOptionsControl, HPS::StandAloneWindowOptionsControl, HPS::AttributeLockControl, HPS::WindowInfoControl, HPS::DebuggingControl, HPS::SubwindowControl, HPS::ContourLineControl, HPS::VisualEffectsControl, HPS::TransformMaskControl, HPS::PostProcessEffectsControl, HPS::DrawingAttributeControl, HPS::HiddenLineAttributeControl, HPS::PerformanceControl, HPS::NURBSSurfaceAttributeControl, HPS::ConditionControl, HPS::StyleControl, HPS::PortfolioControl, HPS::MaterialMappingControl, HPS::TextureMatrixControl, HPS::ModellingMatrixControl, HPS::CurveAttributeControl, HPS::EdgeAttributeControl, HPS::LineAttributeControl, HPS::TextAttributeControl, HPS::CuttingSectionAttributeControl, HPS::CylinderAttributeControl, HPS::LightingAttributeControl, HPS::SphereAttributeControl, HPS::MarkerAttributeControl, HPS::CullingControl, HPS::ColorInterpolationControl, HPS::TransparencyControl, HPS::SelectabilityControl, HPS::CameraControl, HPS::VisibilityControl, HPS::BoundingControl, HPS::Kit, and HPS::Control.

UnsetConditionalExpression()

IncludeKey& HPS::IncludeKey::UnsetConditionalExpression

(

)

Removes the conditional expression on this IncludeKey.

This will turn a conditional include into an unconditional include.

Returns

A reference to this IncludeKey.

UnsetFilter() [1/3]

IncludeKey& HPS::IncludeKey::UnsetFilter

(

AttributeLock::Type

in_type

)

Removes an attribute filter from this IncludeKey.

Attribute filters block the specified attributes set in the tree rooted at the target segment from taking effect for this IncludeKey.

Parameters

in_type

The attribute filter to remove from this IncludeKey.

Returns

A reference to this IncludeKey.

See also

IncludeKey::SetFilter

IncludeKey::ShowFilter

UnsetFilter() [2/3]

IncludeKey& HPS::IncludeKey::UnsetFilter	(	size_t	in_count,
		AttributeLock::Type const	in_types[]
	)

Removes an array of attribute filters from this IncludeKey.

Attribute filters block the specified attributes set in the tree rooted at the target segment from taking effect for this IncludeKey.

Parameters

in_count	The size of the attribute filter array.
in_types	The array of attribute filters to remove from this IncludeKey.

Returns

A reference to this IncludeKey.

See also

IncludeKey::SetFilter

IncludeKey::ShowFilter

UnsetFilter() [3/3]

IncludeKey& HPS::IncludeKey::UnsetFilter

(

AttributeLockTypeArray const &

in_types

)

Removes an array of attribute filters from this IncludeKey.

Attribute filters block the specified attributes set in the tree rooted at the target segment from taking effect for this IncludeKey.

Parameters

in_types

The array of attribute filters to remove from this IncludeKey.

Returns

A reference to this IncludeKey.

See also

IncludeKey::SetFilter

IncludeKey::ShowFilter

UnsetPriority()

IncludeKey& HPS::IncludeKey::UnsetPriority

(

)

Removes a drawing priority setting.

Returns

A reference to this object.

Up()

SegmentKey HPS::Key::Up ( ) const

inherited

Returns

The segment containing this key.

Member Data Documentation

staticType

const HPS::Type HPS::IncludeKey::staticType = HPS::Type::IncludeKey

static

---

The documentation for this class was generated from the following file:

• hps.h
