HPS::WalkOperator Class Reference

The WalkOperator class defines an operator which allows the user to accurately move the camera around the scene, while snapped to a plane. More...

#include <sprk_ops.h>

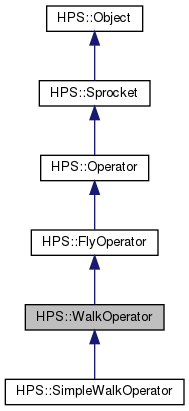

Inheritance diagram for HPS::WalkOperator:

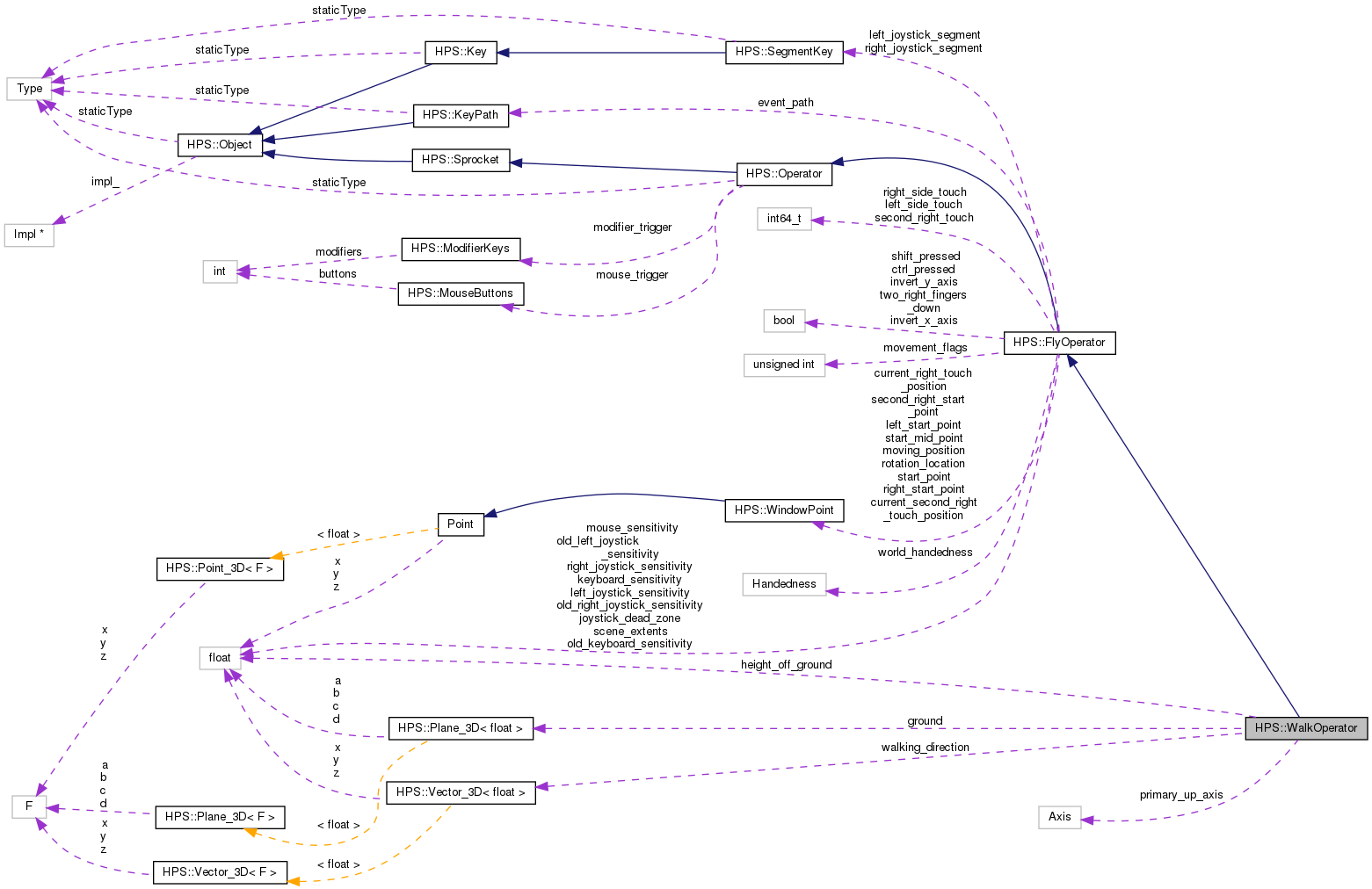

Collaboration diagram for HPS::WalkOperator:

Public Types
enum	Axis {   Axis::X,   Axis::Y,   Axis::Z,   Axis::Negative_X,   Axis::Negative_Y,   Axis::Negative_Z }
enum	Priority {   Priority::Low,   Priority::Default,   Priority::High }

Public Member Functions
	WalkOperator (MouseButtons in_mouse_trigger=MouseButtons::ButtonRight(), ModifierKeys in_modifier_trigger=ModifierKeys())
virtual HPS::UTF8	GetName () const
	Returns the name of the operator. More...
virtual void	OnModelAttached ()
	This function is called whenever a model is attached to the view that is attached to this operator. More...
virtual void	OnViewAttached ()
	This function is called whenever a view is attached to this operator. More...
virtual bool	OnTimerTick (HPS::TimerTickEvent const &in_event)
	This function is called whenever HPS receives a TimerTickEvent This function moves the camera. More...
void	SetGroundPlane (HPS::Plane const &in_plane)
HPS::Plane	GetGroundPlane () const
void	SetWalkerHeight (float height)
float	GetWalkerHeight () const
Axis	GetPrimaryUpAxis () const
Axis	UpdatePrimaryUpAxis (HPS::Vector const &v)
virtual bool	OnKeyDown (KeyboardState const &in_state)
	This function is called whenever HPS receives a KeyboardState event that signals a button was pressed. More...
virtual bool	OnKeyUp (KeyboardState const &in_state)
	This function is called whenever HPS receives a KeyboardState event that signals a button was released. More...
virtual bool	OnMouseDown (MouseState const &in_state)
	This function is called whenever HPS receives a MouseEvent that signals a mouse button was pressed. More...
virtual bool	OnMouseUp (MouseState const &in_state)
	This function is called whenever HPS receives a MouseEvent that signals a mouse button was released. More...
virtual bool	OnMouseMove (MouseState const &in_state)
	This function is called whenever HPS receives a MouseEvent that signals the mouse moved This function rotates the camera in place if the right mouse button is down. More...
virtual bool	OnMouseWheel (MouseState const &in_state)
	This function is called whenever HPS receives a MouseEvent that signals the mouse wheel moved If shift is not pressed this function increases or decreases the step length. More...
virtual bool	OnTouchDown (TouchState const &in_state)
	This function is called whenever HPS receives a TouchEvent that signals the device was touched. More...
virtual bool	OnTouchUp (TouchState const &in_state)
	This function is called whenever HPS receives a TouchEvent that signals a point of contact has been released. More...
virtual bool	OnTouchMove (TouchState const &in_state)
	This function is called whenever HPS receives a TouchEvent that signals a point of contact has moved. More...
virtual void	OnViewDetached ()
	This function is called whenever a view is detached from this operator. More...
void	InvertXAxis ()
void	InvertYAxis ()
bool	IsXAxisInverted () const
bool	IsYAxisInverted () const
float	GetKeyboardSensitivity () const
void	SetKeyboardSensitivity (float in_keyboard_sensitivity)
float	GetMouseSensitivity () const
void	SetMouseSensitivity (float in_mouse_sensitivity)
float	GetLeftJoystickSensitivity () const
void	SetLeftJoystickSensitivity (float in_left_joystick_sensitivity)
float	GetRightJoystickSensitivity () const
void	SetRightJoystickSensitivity (float in_right_joystick_sensitivity)
float	GetJoystickDeadZone () const
void	SetJoystickDeadZone (float in_dead_zone)
float	GetSceneExtents () const
HPS::Type	ObjectType () const
virtual void	Assign (Operator const &in_that)
	Assigns the parameter in_that to this operator, resulting in a clone. More...
virtual bool	Equals (Operator const &in_that) const
	Tests this operator for equality against the parameter in_that. More...
virtual bool	operator!= (Operator const &in_that) const
	Tests this operator for non-equality against the parameter in_that. More...
virtual bool	operator== (Operator const &in_that) const
	Tests this operator for equality against the parameter in_that. More...
void	DetachView ()
	Detaches the Operator from the View it was previously attached to. More...
View	GetAttachedView () const
	Returns the View the Operator is currently attached to. More...
virtual bool	OnMouseEnter (MouseState const &in_state)
	This function is called whenever HPS receives a MouseEvent that signals the mouse entered the window. More...
virtual bool	OnMouseLeave (MouseState const &in_state)
	This function is called whenever HPS receives a MouseEvent that signals the mouse left the window. More...
virtual bool	OnTextInput (HPS::UTF8 const &in_text)
	This function is called whenever HPS receives a TextInputEvent that signals text was entered. More...
virtual void	OnModelDetached ()
	This function is called whenever a model is detached from the view that is attached to this operator. More...
void	SetMouseTrigger (MouseButtons in_buttons)
	Sets the mouse trigger for this operator. More...
MouseButtons	GetMouseTrigger () const
	Gets the mouse trigger associated with this operator. More...
void	SetModifierTrigger (ModifierKeys in_modifiers)
	Sets the modifier trigger associated with this operator. More...
ModifierKeys	GetModifierTrigger () const
	Gets the modifier trigger associated with this operator. More...
virtual bool	IsMouseTriggered (MouseState const &in_state)
	Returns true if the MouseButtons and ModifierKeys are active. More...
virtual HPS::Type	Type () const
	This function returns the true type of the underlying object. More...
virtual bool	Empty () const
	Indicates whether this object has any values set on it. More...
virtual void	Reset ()
	Resets this object to its initial, uninitialized state. More...
bool	HasType (HPS::Type in_mask) const
	This function indicates whether this Object has the given Type mask. More...
intptr_t	GetClassID () const
	Returns a unique identifier that is shared by all objects of the same class. More...
intptr_t	GetInstanceID () const
	Returns an identifier that can be used to identify which instance of a class an object is. More...

Static Public Member Functions
static Axis	GetPrimaryAxis (HPS::Vector const &v)
template<typename T >
static intptr_t	ClassID ()
	Unique identifier for this class. More...

Static Public Attributes
static const HPS::Type	staticType = HPS::Type::Operator

Protected Types
enum	MovementFlags {   no_movement = 0x0000,   moving_forward = 0x0001,   moving_back = 0x0002,   moving_left = 0x0004,   moving_right = 0x0008,   moving_up = 0x0010,   moving_down = 0x0020,   roll_left = 0x0040,   roll_right = 0x0080,   rotating = 0x0100,   move_with_touch = 0x0200,   rotate_with_touch = 0x0400 }

Protected Member Functions
void	MoveLeft (HPS::Point &position, HPS::Point &target, HPS::Vector &up)
void	MoveRight (HPS::Point &position, HPS::Point &target, HPS::Vector &up)
void	MoveUp (HPS::Point &position, HPS::Point &target, HPS::Vector &up)
void	MoveDown (HPS::Point &position, HPS::Point &target, HPS::Vector &up)
void	MoveForward (HPS::Point &position, HPS::Point &target, HPS::Vector const &direction)
void	MoveBack (HPS::Point &position, HPS::Point &target, HPS::Vector const &direction)
bool	MoveWithTouch (HPS::Point &position, HPS::Point &target, HPS::Vector &up, HPS::Vector const &walking_direction)
bool	RotateScene (HPS::Point &position, HPS::Point &target)
bool	RotateWithTouch (HPS::Point &position, HPS::Point &target)
void	RotateCommon (HPS::Point const &delta, HPS::Point &position, HPS::Point &target)

Protected Attributes
unsigned int	movement_flags
HPS::MouseButtons	mouse_trigger
HPS::ModifierKeys	modifier_trigger

Private Member Functions
void	CalculateGroundPlane ()
void	SnapToPlane ()
void	AdjustWalkingDirection (HPS::Vector const &camera_direction, HPS::Vector const &camera_up)

Private Attributes
HPS::Plane	ground
HPS::Vector	walking_direction
float	height_off_ground
Axis	primary_up_axis

Detailed Description

The WalkOperator class defines an operator which allows the user to accurately move the camera around the scene, while snapped to a plane.

This operator is intended for walking through models that have a defined ground plane, such as a floor in a building. For models that don't have a ground plane, Visualize will attempt to determine a ground plane heuristically. This operator works for both mouse and touch-driven devices.

Mouse-driven devices:

W:	Move camera position and target forward
S:	Move camera position and target backward
A:	Pan camera left
D:	Pan camera right
C:	Pan camera down
space:	Pan camera up
Right-button down and move:	Rotate camera in place
Shift:	Walk at double the speed while pressed
Ctrl:	Walk at half the speed while pressed
Mouse wheel:	Increase / decrease step length
Shift + mouse wheel:	Increase / decrease field of view

Touch devices:

Touch left side of screen:	Pans camera in left or right, moves camera forward or back.
Touch right side of screen:	Rotates camera in place.
Two-finger touch and move one finger:	Pans camera up or down.
Double-touch anywhere on the screen:	Re-center the model.

NOTE: The movement speed increases as the user drags his fingers away from the initial touch position

Member Enumeration Documentation

Axis

enum HPS::WalkOperator::Axis

strong

Enumerator
X
Y
Z
Negative_X
Negative_Y
Negative_Z

MovementFlags

enum HPS::FlyOperator::MovementFlags

protectedinherited

Enumerator
no_movement
moving_forward
moving_back
moving_left
moving_right
moving_up
moving_down
roll_left
roll_right
rotating
move_with_touch
rotate_with_touch

Priority

enum HPS::Operator::Priority

stronginherited

Enumerator
Low
Default
High

Constructor & Destructor Documentation

WalkOperator()

HPS::WalkOperator::WalkOperator	(	MouseButtons	in_mouse_trigger = MouseButtons::ButtonRight(),
		ModifierKeys	in_modifier_trigger = ModifierKeys()
	)

Member Function Documentation

AdjustWalkingDirection()

void HPS::WalkOperator::AdjustWalkingDirection ( HPS::Vector const &  camera_direction, HPS::Vector const &  camera_up  )

private

Assign()

virtual void HPS::Operator::Assign ( Operator const &  in_that )

virtualinherited

Assigns the parameter in_that to this operator, resulting in a clone.

CalculateGroundPlane()

void HPS::WalkOperator::CalculateGroundPlane ( )

private

ClassID()

template<typename T >

static intptr_t HPS::Object::ClassID ( )

inlinestaticinherited

Unique identifier for this class.

Note: this method uses construction of static objects. If used in a constructor, it should be used in the body not the initializer list.

DetachView()

void HPS::Operator::DetachView ( )

inherited

Detaches the Operator from the View it was previously attached to.

Empty()

virtual bool HPS::Object::Empty ( ) const

inlinevirtualinherited

Indicates whether this object has any values set on it.

Returns

true if no values are set on this object, false otherwise.

Reimplemented in HPS::STL::ImportResultsKit, HPS::STL::ImportOptionsKit, HPS::OBJ::ImportResultsKit, HPS::OBJ::ImportOptionsKit, HPS::Hardcopy::File::ExportOptionsKit, HPS::Stream::ExportOptionsKit, HPS::Stream::ImportResultsKit, HPS::Stream::ImportOptionsKit, HPS::PointCloud::ImportOptionsKit, HPS::PointCloud::ImportResultsKit, HPS::UpdateOptionsKit, HPS::HighlightSearchOptionsKit, HPS::HighlightOptionsKit, HPS::SelectionOptionsKit, HPS::SearchOptionsKit, HPS::CutGeometryGatheringOptionsKit, HPS::ShapeKit, HPS::ShaderKit, HPS::Shader::ImportOptionsKit, HPS::ImageKit, HPS::Image::ImportOptionsKit, HPS::Image::ExportOptionsKit, HPS::TextureOptionsKit, HPS::LinePatternKit, HPS::LinePatternParallelKit, HPS::LinePatternOptionsKit, HPS::GlyphKit, HPS::ApplicationWindowOptionsKit, HPS::OffScreenWindowOptionsKit, HPS::StandAloneWindowOptionsKit, HPS::GridKit, HPS::PolygonKit, HPS::MeshKit, HPS::ShellKit, HPS::ShellRelationResultsKit, HPS::ShellRelationOptionsKit, HPS::ShellOptimizationOptionsKit, HPS::TextKit, HPS::EllipticalArcKit, HPS::EllipseKit, HPS::TrimKit, HPS::NURBSSurfaceKit, HPS::NURBSCurveKit, HPS::SpotlightKit, HPS::InfiniteLineKit, HPS::CuttingSectionKit, HPS::CircularWedgeKit, HPS::CircularArcKit, HPS::CircleKit, HPS::SphereKit, HPS::CylinderKit, HPS::DistantLightKit, HPS::MarkerKit, HPS::LineKit, HPS::AttributeLockKit, HPS::FontInfoState, HPS::WindowInfoKit, HPS::DebuggingKit, HPS::SubwindowKit, HPS::ContourLineKit, HPS::VisualEffectsKit, HPS::TransformMaskKit, HPS::PostProcessEffectsKit, HPS::DrawingAttributeKit, HPS::HiddenLineAttributeKit, HPS::PerformanceKit, HPS::NURBSSurfaceAttributeKit, HPS::MaterialKit, HPS::MaterialMappingKit, HPS::MatrixKit, HPS::CurveAttributeKit, HPS::EdgeAttributeKit, HPS::LineAttributeKit, HPS::TextAttributeKit, HPS::CuttingSectionAttributeKit, HPS::CylinderAttributeKit, HPS::LightingAttributeKit, HPS::SphereAttributeKit, HPS::MarkerAttributeKit, HPS::CullingKit, HPS::ColorInterpolationKit, HPS::TransparencyKit, HPS::SelectabilityKit, HPS::CameraKit, HPS::VisibilityKit, HPS::BoundingKit, HPS::SegmentOptimizationOptionsKit, HPS::Publish::ExportOptionsKit, HPS::Publish::TextFieldKit, HPS::Publish::SignatureFieldKit, HPS::Publish::DropDownListKit, HPS::Exchange::TessellationOptionsKit, HPS::Publish::ListBoxKit, HPS::Exchange::ExportSTEPOptionsKit, HPS::Exchange::ExportParasolidOptionsKit, HPS::Publish::RadioButtonKit, HPS::Exchange::ExportIGESOptionsKit, HPS::Exchange::ExportXMLOptionsKit, HPS::Publish::CheckBoxKit, HPS::Exchange::ExportU3DOptionsKit, HPS::Exchange::ExportSTLOptionsKit, HPS::Publish::ButtonKit, HPS::Exchange::ExportPRCOptionsKit, HPS::Publish::LinkKit, HPS::Exchange::ExportJTOptionsKit, HPS::Publish::SlideTableKit, HPS::Exchange::ExportACISOptionsKit, HPS::Publish::TableKit, HPS::Exchange::Export3MFOptionsKit, HPS::Publish::ImageKit, HPS::Publish::TextKit, HPS::Exchange::ModelFileImportOptionsKit, HPS::Publish::ViewKit, HPS::Exchange::TranslationOptionsKit, HPS::Publish::ArtworkKit, HPS::Publish::AnnotationKit, HPS::ComponentPath, HPS::Exchange::ImportOptionsKit, HPS::Parasolid::ExportOptionsKit, HPS::Exchange::NURBSConversionOptionsKit, HPS::Parasolid::LineTessellationKit, HPS::Exchange::Configuration, HPS::Publish::PageKit, HPS::Parasolid::FacetTessellationKit, HPS::Publish::DocumentKit, HPS::Parasolid::ImportOptionsKit, HPS::DWG::ImportOptionsKit, HPS::OOC::ImportOptionsKit, HPS::Sketchup::ImportOptionsKit, and HPS::Sketchup::ImportResultsKit.

Equals()

virtual bool HPS::Operator::Equals ( Operator const &  in_that ) const

virtualinherited

Tests this operator for equality against the parameter in_that.

Same as Operator::operator==

GetAttachedView()

View HPS::Operator::GetAttachedView ( ) const

inherited

Returns the View the Operator is currently attached to.

GetClassID()

intptr_t HPS::Object::GetClassID ( ) const

inherited

Returns a unique identifier that is shared by all objects of the same class.

Returns

A unique value shared by all objects of the same class.

GetGroundPlane()

HPS::Plane HPS::WalkOperator::GetGroundPlane ( ) const

inline

GetInstanceID()

intptr_t HPS::Object::GetInstanceID ( ) const

inherited

Returns an identifier that can be used to identify which instance of a class an object is.

Different keys and controls will return the same value if they are backed by the same database resource.

Returns

A value unique to an instance of an object and all objects that are backed by the same database resource.

GetJoystickDeadZone()

float HPS::FlyOperator::GetJoystickDeadZone ( ) const

inlineinherited

GetKeyboardSensitivity()

float HPS::FlyOperator::GetKeyboardSensitivity ( ) const

inlineinherited

GetLeftJoystickSensitivity()

float HPS::FlyOperator::GetLeftJoystickSensitivity ( ) const

inlineinherited

GetModifierTrigger()

ModifierKeys HPS::Operator::GetModifierTrigger ( ) const

inlineinherited

Gets the modifier trigger associated with this operator.

GetMouseSensitivity()

float HPS::FlyOperator::GetMouseSensitivity ( ) const

inlineinherited

GetMouseTrigger()

MouseButtons HPS::Operator::GetMouseTrigger ( ) const

inlineinherited

Gets the mouse trigger associated with this operator.

GetName()

virtual HPS::UTF8 HPS::WalkOperator::GetName ( ) const

inlinevirtual

Returns the name of the operator.

Reimplemented from HPS::FlyOperator.

Reimplemented in HPS::SimpleWalkOperator.

GetPrimaryAxis()

static Axis HPS::WalkOperator::GetPrimaryAxis ( HPS::Vector const &  v )

static

GetPrimaryUpAxis()

Axis HPS::WalkOperator::GetPrimaryUpAxis ( ) const

inline

GetRightJoystickSensitivity()

float HPS::FlyOperator::GetRightJoystickSensitivity ( ) const

inlineinherited

GetSceneExtents()

float HPS::FlyOperator::GetSceneExtents ( ) const

inlineinherited

GetWalkerHeight()

float HPS::WalkOperator::GetWalkerHeight ( ) const

inline

HasType()

bool HPS::Object::HasType ( HPS::Type  in_mask ) const

inherited

This function indicates whether this Object has the given Type mask.

Parameters

in_mask

The Type mask to check against this Object.

Returns

true if this Object has the given Type mask, false otherwise.

InvertXAxis()

void HPS::FlyOperator::InvertXAxis ( )

inlineinherited

InvertYAxis()

void HPS::FlyOperator::InvertYAxis ( )

inlineinherited

IsMouseTriggered()

virtual bool HPS::Operator::IsMouseTriggered ( MouseState const &  in_state )

inlinevirtualinherited

Returns true if the MouseButtons and ModifierKeys are active.

Reimplemented in HPS::SimpleWalkOperator.

Here is the call graph for this function:

IsXAxisInverted()

bool HPS::FlyOperator::IsXAxisInverted ( ) const

inlineinherited

IsYAxisInverted()

bool HPS::FlyOperator::IsYAxisInverted ( ) const

inlineinherited

MoveBack()

void HPS::FlyOperator::MoveBack ( HPS::Point &  position, HPS::Point &  target, HPS::Vector const &  direction  )

protectedinherited

MoveDown()

void HPS::FlyOperator::MoveDown ( HPS::Point &  position, HPS::Point &  target, HPS::Vector &  up  )

protectedinherited

MoveForward()

void HPS::FlyOperator::MoveForward ( HPS::Point &  position, HPS::Point &  target, HPS::Vector const &  direction  )

protectedinherited

MoveLeft()

void HPS::FlyOperator::MoveLeft ( HPS::Point &  position, HPS::Point &  target, HPS::Vector &  up  )

protectedinherited

MoveRight()

void HPS::FlyOperator::MoveRight ( HPS::Point &  position, HPS::Point &  target, HPS::Vector &  up  )

protectedinherited

MoveUp()

void HPS::FlyOperator::MoveUp ( HPS::Point &  position, HPS::Point &  target, HPS::Vector &  up  )

protectedinherited

MoveWithTouch()

bool HPS::FlyOperator::MoveWithTouch ( HPS::Point &  position, HPS::Point &  target, HPS::Vector &  up, HPS::Vector const &  walking_direction  )

protectedinherited

ObjectType()

HPS::Type HPS::Operator::ObjectType ( ) const

inlinevirtualinherited

Reimplemented from HPS::Object.

Here is the call graph for this function:

OnKeyDown()

virtual bool HPS::FlyOperator::OnKeyDown ( KeyboardState const &  in_state )

virtualinherited

This function is called whenever HPS receives a KeyboardState event that signals a button was pressed.

This function instructs the operator on which direction to move towards.

Parameters

in_state

A KeyboardState object describing the current keyboard state. W: Move camera position and target forward A: Pan camera left S: Move camera position and target forward D: Pan camera right C: Pan camera down Space: Pan camera up Q: Roll camera left E: Roll camera right Shift: Walk at double the speed while pressed Ctrl: Walk at half the speed while pressed

Returns

true if the input event was handled, false otherwise.

Reimplemented from HPS::Operator.

Reimplemented in HPS::SimpleWalkOperator.

OnKeyUp()

virtual bool HPS::FlyOperator::OnKeyUp ( KeyboardState const &  in_state )

virtualinherited

This function is called whenever HPS receives a KeyboardState event that signals a button was released.

Parameters

in_state

A KeyboardState object describing the current keyboard state.

Returns

true if the input event was handled, false otherwise.

Reimplemented from HPS::Operator.

Reimplemented in HPS::SimpleWalkOperator.

OnModelAttached()

virtual void HPS::WalkOperator::OnModelAttached ( )

virtual

This function is called whenever a model is attached to the view that is attached to this operator.

If no view is attached to this operator, this function will not be called.

Reimplemented from HPS::FlyOperator.

Reimplemented in HPS::SimpleWalkOperator.

OnModelDetached()

virtual void HPS::Operator::OnModelDetached ( )

inlinevirtualinherited

This function is called whenever a model is detached from the view that is attached to this operator.

If no view is attached to this operator, this function will not be called.

OnMouseDown()

virtual bool HPS::FlyOperator::OnMouseDown ( MouseState const &  in_state )

virtualinherited

This function is called whenever HPS receives a MouseEvent that signals a mouse button was pressed.

This function starts the operator and computes the position of the starting point.

Parameters

in_state

A MouseState object describing the current mouse state.

Returns

true if the input event was handled, false otherwise.

Reimplemented from HPS::Operator.

Reimplemented in HPS::SimpleWalkOperator.

OnMouseEnter()

virtual bool HPS::Operator::OnMouseEnter ( MouseState const &  in_state )

inlinevirtualinherited

This function is called whenever HPS receives a MouseEvent that signals the mouse entered the window.

Parameters

in_state

A MouseState object describing the current mouse state.

Returns

true if the input event was handled, false otherwise.

Reimplemented in HPS::SimpleWalkOperator.

OnMouseLeave()

virtual bool HPS::Operator::OnMouseLeave ( MouseState const &  in_state )

inlinevirtualinherited

This function is called whenever HPS receives a MouseEvent that signals the mouse left the window.

Parameters

in_state

A MouseState object describing the current mouse state.

Returns

true if the input event was handled, false otherwise.

Reimplemented in HPS::SimpleWalkOperator.

OnMouseMove()

virtual bool HPS::FlyOperator::OnMouseMove ( MouseState const &  in_state )

virtualinherited

This function is called whenever HPS receives a MouseEvent that signals the mouse moved This function rotates the camera in place if the right mouse button is down.

Parameters

in_state

A MouseState object describing the current mouse state.

Returns

true if the input event was handled, false otherwise.

Reimplemented from HPS::Operator.

Reimplemented in HPS::SimpleWalkOperator.

OnMouseUp()

virtual bool HPS::FlyOperator::OnMouseUp ( MouseState const &  in_state )

virtualinherited

This function is called whenever HPS receives a MouseEvent that signals a mouse button was released.

Parameters

in_state

A MouseState object describing the current mouse state.

Returns

true if the input event was handled, false otherwise.

Reimplemented from HPS::Operator.

Reimplemented in HPS::SimpleWalkOperator.

OnMouseWheel()

virtual bool HPS::FlyOperator::OnMouseWheel ( MouseState const &  in_state )

virtualinherited

This function is called whenever HPS receives a MouseEvent that signals the mouse wheel moved If shift is not pressed this function increases or decreases the step length.

If shift is pressed this function increases or decreases the camera field of view.

Parameters

in_state

A MouseState object describing the current mouse state.

Returns

true if the input event was handled, false otherwise.

Reimplemented from HPS::Operator.

Reimplemented in HPS::SimpleWalkOperator.

OnTextInput()

virtual bool HPS::Operator::OnTextInput ( HPS::UTF8 const &  in_text )

inlinevirtualinherited

This function is called whenever HPS receives a TextInputEvent that signals text was entered.

Parameters

in_text

The text entered.

Returns

true if the input event was handled, false otherwise.

Reimplemented in HPS::AnnotationOperator, and HPS::MarkupOperator.

OnTimerTick()

virtual bool HPS::WalkOperator::OnTimerTick ( HPS::TimerTickEvent const &  in_event )

virtual

This function is called whenever HPS receives a TimerTickEvent This function moves the camera.

Parameters

in_state

A TimerTickEvent object describing the current timer tick.

Returns

true if the input event was handled, false otherwise.

Reimplemented from HPS::FlyOperator.

Reimplemented in HPS::SimpleWalkOperator.

OnTouchDown()

virtual bool HPS::FlyOperator::OnTouchDown ( TouchState const &  in_state )

virtualinherited

This function is called whenever HPS receives a TouchEvent that signals the device was touched.

This function starts the operator and computes the position of the starting point.

Parameters

in_state

A TouchState object describing the current touch state.

Returns

true if the input event was handled, false otherwise.

Reimplemented from HPS::Operator.

Reimplemented in HPS::SimpleWalkOperator.

OnTouchMove()

virtual bool HPS::FlyOperator::OnTouchMove ( TouchState const &  in_state )

virtualinherited

This function is called whenever HPS receives a TouchEvent that signals a point of contact has moved.

This function rotates the camera in place.

Parameters

in_state

A TouchState object describing the current touch state.

Returns

true if the input event was handled, false otherwise.

Reimplemented from HPS::Operator.

Reimplemented in HPS::SimpleWalkOperator.

OnTouchUp()

virtual bool HPS::FlyOperator::OnTouchUp ( TouchState const &  in_state )

virtualinherited

This function is called whenever HPS receives a TouchEvent that signals a point of contact has been released.

Parameters

in_state

A TouchState object describing the current touch state.

Returns

true if the input event was handled, false otherwise.

Reimplemented from HPS::Operator.

Reimplemented in HPS::SimpleWalkOperator.

OnViewAttached()

virtual void HPS::WalkOperator::OnViewAttached ( )

virtual

This function is called whenever a view is attached to this operator.

Reimplemented from HPS::FlyOperator.

Reimplemented in HPS::SimpleWalkOperator.

OnViewDetached()

virtual void HPS::FlyOperator::OnViewDetached ( )

virtualinherited

This function is called whenever a view is detached from this operator.

Reimplemented from HPS::Operator.

operator!=()

virtual bool HPS::Operator::operator!= ( Operator const &  in_that ) const

virtualinherited

Tests this operator for non-equality against the parameter in_that.

operator==()

virtual bool HPS::Operator::operator== ( Operator const &  in_that ) const

virtualinherited

Tests this operator for equality against the parameter in_that.

Same as Operator::Equals.

Reset()

virtual void HPS::Object::Reset ( )

virtualinherited

Resets this object to its initial, uninitialized state.

Reimplemented in HPS::EventHandler, HPS::EventDispatcher, HPS::World, HPS::HighlightSearchResults, HPS::HighlightSearchResultsIterator, HPS::SelectionResults, HPS::SelectionResultsIterator, HPS::FontSearchResults, HPS::FontSearchResultsIterator, HPS::SearchResults, and HPS::SearchResultsIterator.

RotateCommon()

void HPS::FlyOperator::RotateCommon ( HPS::Point const &  delta, HPS::Point &  position, HPS::Point &  target  )

protectedinherited

RotateScene()

bool HPS::FlyOperator::RotateScene ( HPS::Point &  position, HPS::Point &  target  )

protectedinherited

RotateWithTouch()

bool HPS::FlyOperator::RotateWithTouch ( HPS::Point &  position, HPS::Point &  target  )

protectedinherited

SetGroundPlane()

void HPS::WalkOperator::SetGroundPlane ( HPS::Plane const &  in_plane )

inline

SetJoystickDeadZone()

void HPS::FlyOperator::SetJoystickDeadZone ( float  in_dead_zone )

inlineinherited

SetKeyboardSensitivity()

void HPS::FlyOperator::SetKeyboardSensitivity ( float  in_keyboard_sensitivity )

inlineinherited

SetLeftJoystickSensitivity()

void HPS::FlyOperator::SetLeftJoystickSensitivity ( float  in_left_joystick_sensitivity )

inlineinherited

SetModifierTrigger()

void HPS::Operator::SetModifierTrigger ( ModifierKeys  in_modifiers )

inlineinherited

Sets the modifier trigger associated with this operator.

Parameters

in_modifiers

The modifier keys that are used to trigger this operator.

SetMouseSensitivity()

void HPS::FlyOperator::SetMouseSensitivity ( float  in_mouse_sensitivity )

inlineinherited

SetMouseTrigger()

void HPS::Operator::SetMouseTrigger ( MouseButtons  in_buttons )

inlineinherited

Sets the mouse trigger for this operator.

SetRightJoystickSensitivity()

void HPS::FlyOperator::SetRightJoystickSensitivity ( float  in_right_joystick_sensitivity )

inlineinherited

SetWalkerHeight()

void HPS::WalkOperator::SetWalkerHeight ( float  height )

inline

SnapToPlane()

void HPS::WalkOperator::SnapToPlane ( )

private

Type()

virtual HPS::Type HPS::Object::Type ( ) const

virtualinherited

This function returns the true type of the underlying object.

This function is useful for finding the type of smart pointer objects that have been cast to more generic types.

Returns

The true type of the object in question.

Reimplemented in HPS::UpdateOptionsControl, HPS::HighlightControl, HPS::SelectionOptionsControl, HPS::OffScreenWindowOptionsControl, HPS::ApplicationWindowOptionsControl, HPS::StandAloneWindowOptionsControl, HPS::AttributeLockControl, HPS::WindowInfoControl, HPS::DebuggingControl, HPS::SubwindowControl, HPS::ContourLineControl, HPS::VisualEffectsControl, HPS::TransformMaskControl, HPS::PostProcessEffectsControl, HPS::DrawingAttributeControl, HPS::HiddenLineAttributeControl, HPS::PerformanceControl, HPS::NURBSSurfaceAttributeControl, HPS::ConditionControl, HPS::StyleControl, HPS::PortfolioControl, HPS::MaterialMappingControl, HPS::TextureMatrixControl, HPS::ModellingMatrixControl, HPS::CurveAttributeControl, HPS::EdgeAttributeControl, HPS::LineAttributeControl, HPS::TextAttributeControl, HPS::CuttingSectionAttributeControl, HPS::CylinderAttributeControl, HPS::LightingAttributeControl, HPS::SphereAttributeControl, HPS::MarkerAttributeControl, HPS::CullingControl, HPS::ColorInterpolationControl, HPS::TransparencyControl, HPS::SelectabilityControl, HPS::CameraControl, HPS::VisibilityControl, HPS::BoundingControl, HPS::Kit, and HPS::Control.

UpdatePrimaryUpAxis()

Axis HPS::WalkOperator::UpdatePrimaryUpAxis

(

HPS::Vector const &

v

)

Member Data Documentation

ground

HPS::Plane HPS::WalkOperator::ground

private

height_off_ground

float HPS::WalkOperator::height_off_ground

private

modifier_trigger

HPS::ModifierKeys HPS::Operator::modifier_trigger

protectedinherited

mouse_trigger

HPS::MouseButtons HPS::Operator::mouse_trigger

protectedinherited

movement_flags

unsigned int HPS::FlyOperator::movement_flags

protectedinherited

primary_up_axis

Axis HPS::WalkOperator::primary_up_axis

private

staticType

const HPS::Type HPS::Operator::staticType = HPS::Type::Operator

staticinherited

walking_direction

HPS::Vector HPS::WalkOperator::walking_direction

private

---

The documentation for this class was generated from the following file:

• sprk_ops.h
